Product details

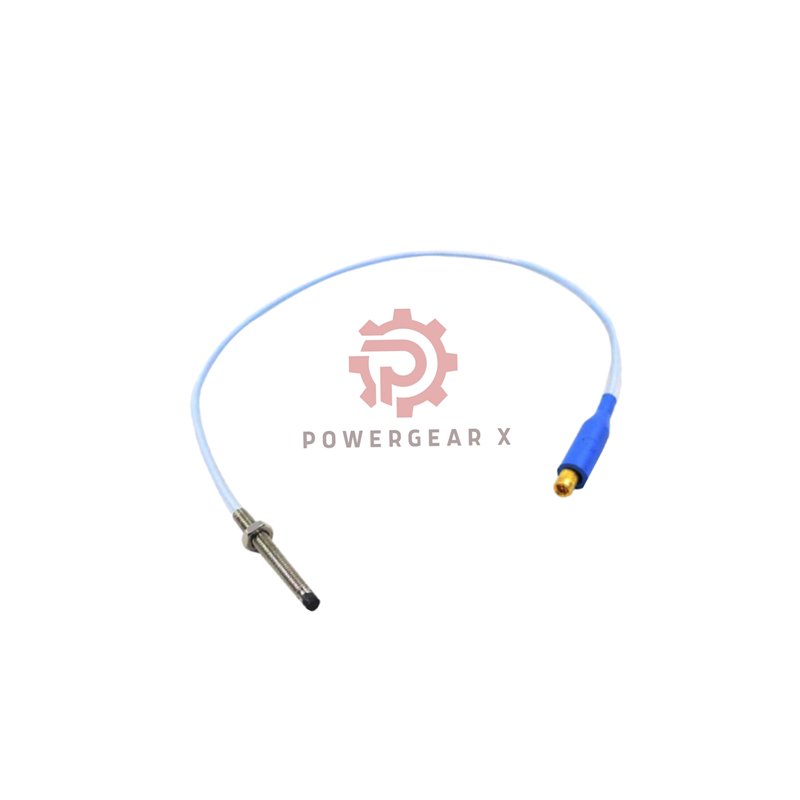

US-Made Long-Case Vibration Probe
Presenting the 330901-14-43-10-02-05. This Bently Nevada 3300 NSv probe is manufactured in the USA. It features a substantial 4.3-inch case length. It is engineered for applications requiring extended reach and robust construction with full agency approvals.
Configuration: 330901-14-43-10-02-05
- Core Model 330901: 3300 NSv Probe, 1/4-28 UNF Thread, No Armor.
- Unthreaded Shaft 14: 1.4 inches of smooth body for alignment.
- Total Case 43: 4.3 inches overall length from tip to cable.
- Integrated Cable 10: 1.0 meter (39 inches) standard length.
- Connector 02: Standard Miniature ClickLoc Connector.
- Approvals 05: Carries Multiple Safety Certifications.
Technical Data Sheet
- Manufacturer & Part: Bently Nevada 330901-14-43-10-02-05
- Series: 3300 NSv Proximity Monitoring System
- Electrical Properties:
- Cable: 75 Ω coaxial with FEP insulation.
- Probe Resistance (1.0m): 4.2 Ω ± 0.5 Ω.
- Mechanical Build:
- Housing: AISI304 Stainless Steel.
- Sensing Tip: PPS (Polyphenylene Sulfide).
- Seal: Viton O-ring.
- Mounting: 1/4-28 UNF thread. Max engagement 0.563 in.
- Installation Torque: Recommended 11.3 N•m (100 in•lb).
- Environmental Specifications:
- Operating Range: -52°C to +177°C (-62°F to +351°F).
- Storage Range: -52°C to +177°C.
- Note: Protect from sustained temperatures below -34°C.
- Temperature Class: Rated for T1 through T5 per approval guidelines.
Certifications & Compliance
This 330901-14-43-10-02-05 model includes multiple agency approvals (Option 05). It is suitable for use in classified hazardous locations per international standards.
What You Receive & Support
- Package Contents: One NSv proximity probe with 1.0m attached cable.
- Quality Assurance: Backed by a comprehensive 12-month warranty.
- Logistics: Fast and reliable worldwide shipping via DHL, FedEx, or UPS.
Professional FAQ
Design & Selection
Q: What is the purpose of the 1.4-inch unthreaded section?
A: The unthreaded section (code ’14’) guides the probe through a mounting bushing or sleeve. This ensures perfect alignment before the threads engage.
Q: This model has a 4.3-inch case. Where is it typically used?
A> The 330901-14-43-10-02-05 is ideal for installations where the sensor must pass through a thick machine casing, insulation layer, or cooling jacket to reach the measurement point.
Installation & Safety
Q: Are there special torque instructions for the first few threads?
A: Yes. For the first three threads, a lower torque of 7.5 N•m (66 in•lb) is recommended to prevent cross-threading. Then torque fully to 11.3 N•m.
Q: What does “Temperature Classification T1-T5” mean?
A: This defines the maximum surface temperature of the probe in hazardous areas. T1 is the highest rating (+232°C ambient). It ensures safe operation in explosive atmospheres.
Ordering & Delivery
Q: What are the warranty and shipping details?
A: Your purchase is protected by a 12-month warranty. We dispatch orders promptly using global express services like UPS, DHL, or FedEx.
Get Your Quote or Technical Support
For pricing and availability of the 330901-14-43-10-02-05, contact us.
