Bently Nevada | 330901-00-17-10-02-05 | Proximity Probes 3300 NSv

Overview

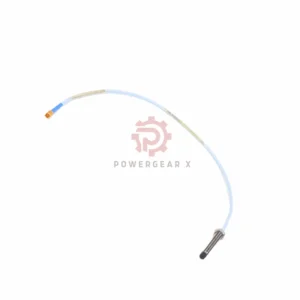

The 3300 NSv Proximity Probe 330901-00-17-10-02-05 is built for compact machinery monitoring. With a 1.7-inch stainless steel case and 1.0-meter FEP cable, it fits tight spaces. Certified for global use (ATEX/IECEx), it operates from -52°C to +177°C (-62°F to +351°F).

Tech Specs

• Brand:Bently Nevada
• Model: 330901-00-17-10-02-05
• Dimensions:
  • Case length: 1.7″ (43.2mm)
  • Cable length: 1.0m (39.4″)
  • Thread: 1/4-28 UNF
  • Max thread depth: 0.375″ (9.53mm)
• Electrical:


  Cable Length	Resistance	Tolerance
  0.5m	4.0Ω	±0.5Ω
  1.0m	4.2Ω	±0.5Ω
  5m	38.5Ω	±1.0Ω
  7m	54.0Ω	±1.0Ω

  75Ω coaxial cable, FEP insulation

• Torque Limits:
  • Absolute max: 7.3 N·m (65 in·lb)
  • Daily use limit: 5.1 N·m (45 in·lb)
• Temperature:
  • Working range: -52°C to +177°C
  • Storage limit: -34°C (-30°F) minimum
• Materials:
  • Case: AISI304 stainless steel
  • Tip: PPS (melts at 285°C/545°F)
  • Seal: Viton® O-ring (FKM)
• Weight: 14g (0.5oz) to 150g (5.3oz)

Warnings

• Do not install below -34°C (-30°F)
• Pressure seal not factory tested

Contact

Need data sheets? Email sales@powergearx.com.

For more detailed information:3300 NSv Proximity Transducer System Datasheet
