Product details
Product Overview

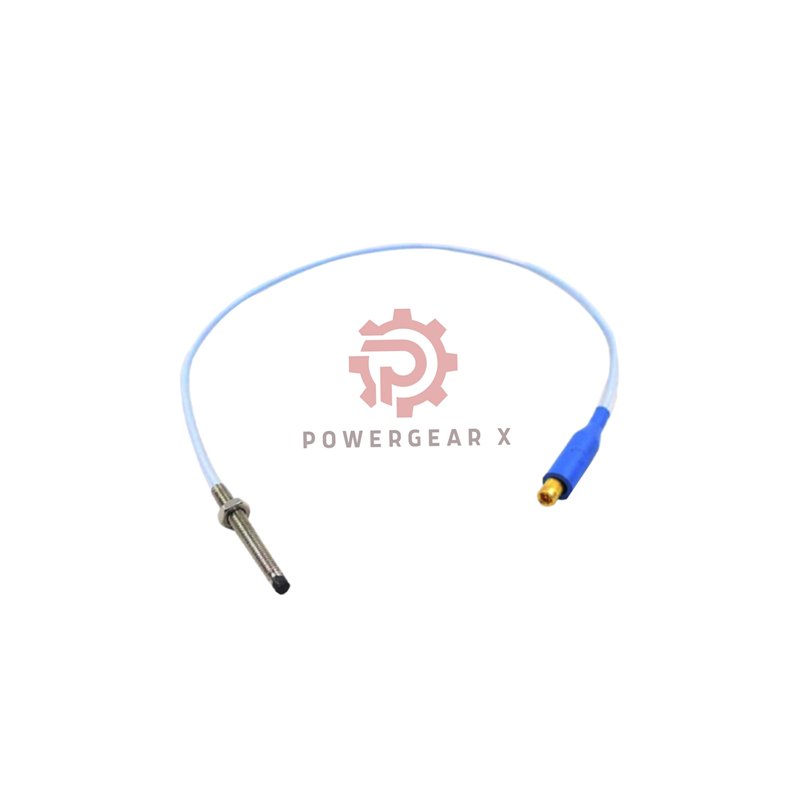

The 3300 NSv Proximity Probe from Bently Nevada offers precise vibration and position monitoring for rotating machinery. This probe ensures reliable performance in harsh industrial environments. It features a durable stainless steel case and a robust PPS tip. The 330901-00-08-05-02-05 model is ideal for critical machinery protection.
Key Features & Benefits
- Robust Construction: AISI304 stainless steel case and PPS tip provide excellent durability.
- Wide Temperature Range: Operates reliably from -52°C to +177°C.
- Easy Installation: Comes with a Miniature coaxial ClickLoc connector for quick setup.
- Global Approvals: Includes multiple agency certifications for worldwide use.
- Superior Sealing: Viton O-ring seals the probe against differential pressure.
Technical Specifications
- Brand & Model: Bently Nevada 3300 NSv Series
- Product Code: 330901-00-08-05-02-05
- 00: Unthreaded Length (0.0 in)
- 08: Case Length (0.8 in)
- 05: Cable Length (0.5 meter / 20 in)
- 02: Miniature Coaxial ClickLoc Connector
- 05: Multiple Agency Approvals
- Electrical Data:
- Cable Impedance: 75 Ω coaxial
- Probe DC Resistance: 4.0 Ω ± 0.5 (for 0.5m cable)
- Mechanical Data:
- Thread: 1/4-28 UNF
- Max Thread Engagement: 0.563 in
- Recommended Torque: 11.3 N•m (100 in•lb)
- Weight: Approx. 14 to 150 g
- Environmental Limits:
- Operating/Storage Temp: -52°C to +177°C
- Pressure Seal: Viton O-ring (not pressure tested)
- Cable Insulation: Fluoroethylene Propylene (FEP)
- Temperature Classifications: Compliant with EPL Ga, Gc, and Dc requirements for hazardous areas.
Installation & Compatibility
Installation is straightforward. Follow the torque specifications to prevent damage. This probe connects seamlessly with Bently Nevada’s 3300 NSv monitoring systems. The ClickLoc connector ensures a secure and vibration-resistant link.
Certifications & Shipping
This product holds multiple international safety approvals. We ship globally via FedEx, UPS, and DHL. Your order includes the probe and connector. All products come with a 12-month warranty.
Typical Applications & Diagnostics
- Monitor radial vibration in turbines, compressors, and pumps.
- Measure axial position and thrust.
- Protect critical assets from unexpected failure.
- Integrate with condition monitoring systems for predictive maintenance.
Frequently Asked Questions (FAQ)
General & Technical
- What is the probe’s temperature limit?
- The probe operates from -52°C to +177°C. Avoid sustained periods below -34°C to protect the seal.
- Can I use this probe in hazardous areas?
- Yes. It has temperature classifications for EPL Ga, Gc, and Dc environments.
- What is the probe’s electrical resistance?
- For the 0.5m version, it is 4.0 Ω ± 0.5 from center to outer conductor.
Installation & Maintenance
- How much torque should I apply?
- We recommend 11.3 N•m (100 in•lb) for the first three threads and full engagement.
- How do I connect the cable?
- Use the ClickLoc connector. It clicks securely into place for a reliable connection.
- Does the probe need calibration?
- The probe itself does not. However, the entire monitoring system requires initial setup and calibration.
Selection & Ordering Guidance
- How do I choose the right model?
- Select based on thread size, cable length, and connector type. Our code 330901-XX-XX-XX-XX-XX shows all options.
- What is the delivery time?
- We ship most items within 24-48 hours via express courier.
- Can I get a custom cable length?
- Standard lengths are 0.5, 1, 5, and 7 meters. Contact us for special requests.
Need help choosing the right probe? Contact our experts for personalized advice.
