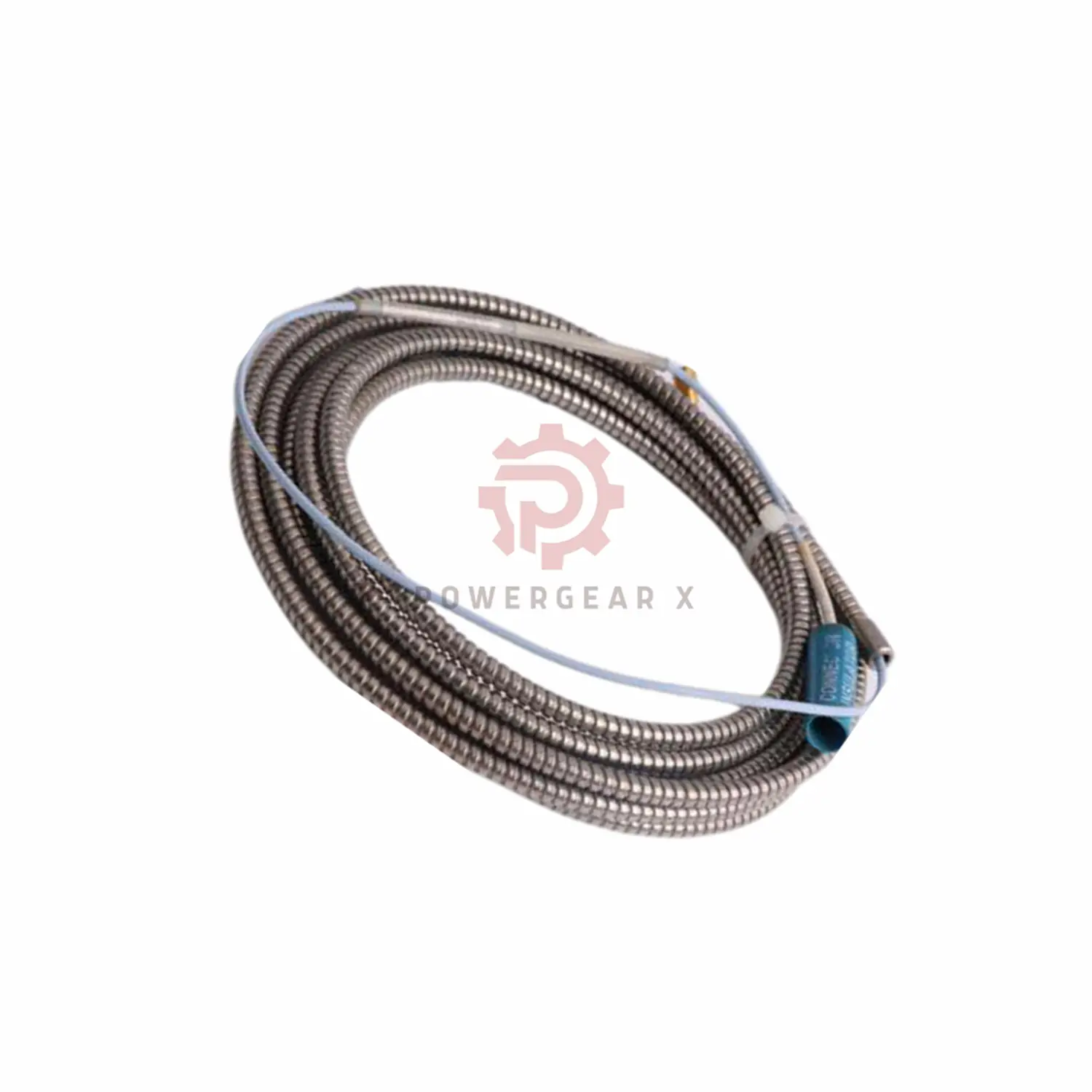

Bently Nevada 330730-080-01-05 | Armored Extension Cable

Overview

The Bently Nevada 330730-080-01-05 3300 XL 11 mm Extension Cable is designed to ensure high performance and reliability in industrial environments, making it an ideal choice for use with 3300 XL Proximity Probes. This extension cable is engineered to meet rigorous standards and is capable of providing accurate measurements over long distances. With multiple protection options, it ensures safety and performance in harsh conditions.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL 11 mm Extension Cable
• Product Code: 330730-080-01-05
• Made in: U.S.A
• Cable Length: 8.0 meters (26.2 feet)
• Connector & Cable:
  • Option 01: Armored cable
  • Capacitance: 69.9 pF/m (21.3 pF/ft)
  • Armor (optional): Flexible AISI 302 Stainless Steel with FEP outer jacket
• Temperature Range: Operating and Storage from -51°C to +177°C (-60°F to +351°F)
• Weight:
  • Armored Cable: 140 g/m (1.5 oz/ft)
• Connector Material: Gold-plated brass
• Resistance:
  • Core Resistance: 2.0 ± 0.5 ohms (for 8 meters)
  • Jacket Resistance: 0.6 ± 0.2 ohms
• Tensile Strength:
  • Maximum rated: 330 N (75 pounds) from probe case to lead
  • At probe lead to extension cable connectors: 270 N (60 pounds)

For more detailed information: 3300 XL 11 mm Proximity Transducer System Datasheet
