Product details
Industrial-Grade Protection with FluidLoc Technology

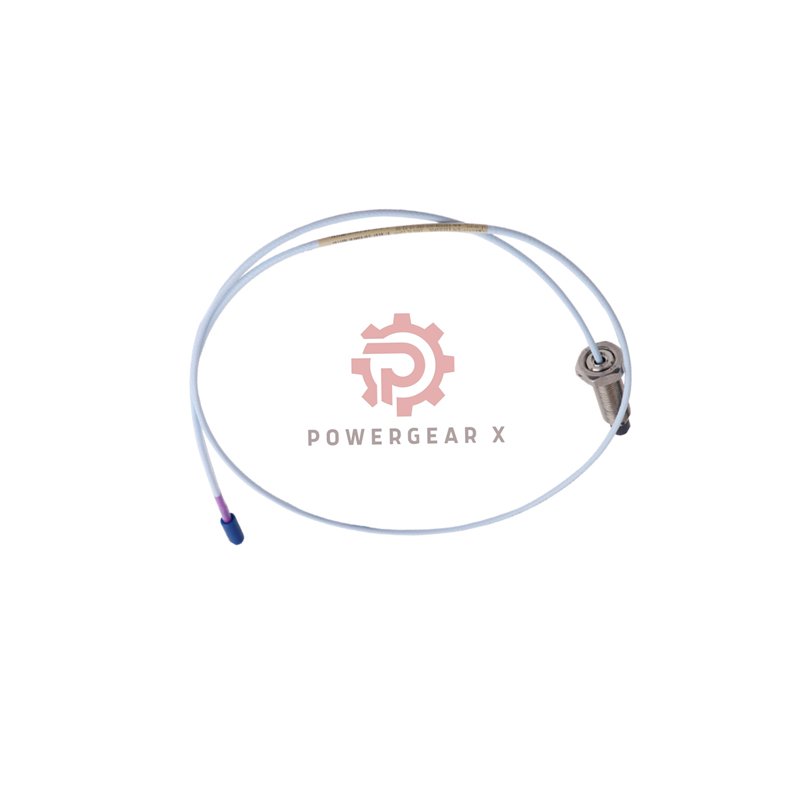

The Bently Nevada 330709-000-080-50-11-00 is a top-tier monitoring solution. This 3300 XL series 11mm proximity probe combines durability with advanced features. It has an 80mm stainless steel case for secure mounting. The FluidLoc cable resists harsh chemicals. This probe is built for reliable performance in standard industrial environments.
Complete Feature Breakdown by Code
Your specific model, 330709-000-080-50-11-00, is configured as follows.
- 330709: 3300 XL 11mm Probe, M16x1.5, Unarmored
- 000: Unthreaded Part = 0 mm
- 080: Case Body Length = 80 mm
- 50: Total Cable = 5.0 Meters
- Pairs with a 5-meter Proximitor.
- 11: Connection = ClickLoc + Protector + FluidLoc Cable
- 00: Certifications = Not Required
Engineering & Installation Specifications
- Electrical Profile
- DC Resistance: 7.2 Ω (±0.8 Ω)
- Cable: 75 Ohm Triaxial, FEP FluidLoc
- Minimum Target: 30.5 mm Diameter
- Build & Materials
- Housing: AISI 304 Stainless Steel
- Sensing Tip: PPS Polymer
- Mounting Thread: M16 x 1.5
- Max Thread Depth: 24 mm
- Operating Environment
- Temperature Range: -52°C to +177°C
- Important: Store above -34°C to protect seals.
- Bend Radius: Minimum 25.4 mm
- Torque Settings
- Probe Case: 21.1 N•m (Max 63.3 N•m)
- Connector: Hand Tight Only (Max 0.565 N•m)
Practical FAQs for Buyers
Why choose the “11” connector and cable option?
Option “11” offers maximum protection. It includes the FluidLoc cable for chemical resistance plus a physical connector protector. This is the best choice for wet, oily, or high-traffic areas.
The case is 80mm long. Will this fit my existing hole?
The 80mm case is a common length. Please measure your current mounting hole depth first. Ensure there is enough space for the full probe body. We can help verify compatibility.
This model has “00” for approvals. Where can I use it?
“00” means it lacks specific hazardous area certifications. Use this probe only in standard, non-classified industrial locations. Always follow your plant’s safety guidelines.
Is probe diameter critical for system compatibility?
Absolutely. An 11mm probe like this one has different electrical characteristics than an 3300 XL 8mm Proximity Probe. They are not interchangeable. Use the exact size your system manual specifies.
How quickly can I get this part and what’s the warranty?
We ship most orders within 24 hours via FedEx, UPS, or DHL. Every Bently Nevada 330709-000-080-50-11-00 comes with a solid 12-month warranty for your peace of mind.
