Professional-Grade Vibration Probe with Extended Housing

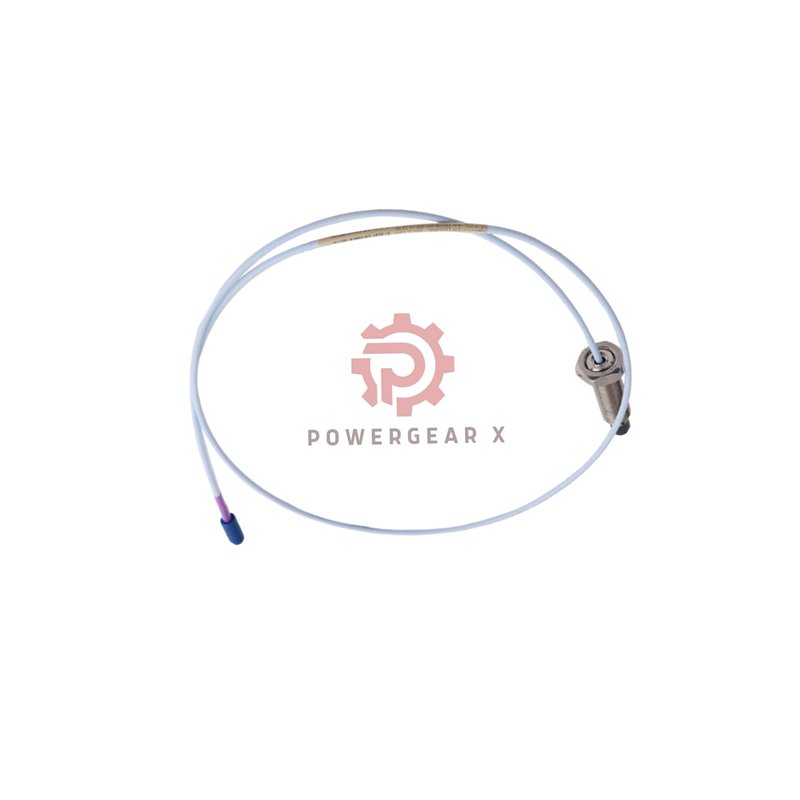

The Bently Nevada 330709-000-080-50-01-05 is an industrial vibration sensor. It features an 80mm long stainless steel housing. This length is perfect for mounting through thick machinery walls. The probe delivers precise shaft vibration and position data for predictive maintenance.
Key Product Advantages
- Deep Mounting Capability: 80mm case length reaches through insulation and heavy brackets.
- Universal Industrial Cable: Standard FEP cable works in most factory environments.
- Protected Connection: Connector protector prevents damage during storage and transit.
- Internationally Certified: Multiple global approvals simplify project compliance.
- Temperature Resilient: Operates from -52°C to +177°C in demanding conditions.
Technical Configuration Details
- Manufacturer: Bently Nevada
- Product Line: 3300 XL Series – 11mm Proximity Probes
- Complete Model Breakdown: 330709-000-080-50-01-05
- ◆ 330709: 11mm Sensing Probe, M16x1.5 Thread
- ◆ 000: Zero Unthreaded Length
- ◆ 080: Housing Length = 80 Millimeters
- ◆ 50: Cable Length = 5.0 Meters
- ◆ 01: ClickLoc Connector with Protector (Standard Cable)
- ◆ 05: Multiple International Approvals Certified
- Electrical & Measurement Specs
- Probe Resistance: 7.2 ± 0.8 Ohms
- Cable Specification: 75Ω Triaxial with FEP Insulation
- Minimum Target: 30.5 mm Flat Surface
- Recommended Shaft: 152 mm Minimum Diameter
- Mechanical Installation Data
- Thread Type: M16 x 1.5 Metric
- Maximum Engagement: 24 mm Depth
- Installation Torque: 21.1 N•m (187 in-lb)
- Cable Bend Radius: Minimum 25.4 mm
- Connector Torque: Finger Tight Only (0.565 N•m max)
Installation Best Practices
Mounting Procedure: Clean the threaded hole thoroughly. Insert the probe fully until seated. Tighten to specified torque using a calibrated wrench.
System Compatibility: This probe must pair exclusively with a 5-meter Bently Nevada 3300 XL Proximitor. Other lengths will cause measurement errors.
Storage Warning: Always keep the connector protector installed when not in use. Never expose the probe to temperatures below -34°C to avoid seal failure.
Purchase & Logistics Information
- Warranty Coverage: Full 12-month manufacturer warranty against defects.
- Shipping Methods: Express delivery available via FedEx, UPS, and DHL worldwide.
- Safety Certifications: Compliant with EPL Ga/Gc and EPL Dc hazardous area classifications.
Technical Questions Answered
- What applications require an 80mm long probe?This 330709-000-080-50-01-05 is essential for installations where measurement points are behind thick thermal insulation, double-walled casings, or deep mounting adapters on turbines and compressors.
- Can I use this in wet environments?The standard cable resists moderate moisture. For constant exposure to oils, coolants, or water jets, select a model with FluidLoc cable for superior protection.
- How do the multiple approvals benefit my project?The “05” approval option includes major certifications like ATEX and IECEx. This ensures the 330709-000-080-50-01-05 meets safety requirements for global oil, gas, and chemical plants.
- Is special alignment needed during installation?Yes. Like all proximity probes, ensure the sensing tip is perpendicular to the target shaft surface. Misalignment can reduce signal quality and accuracy.
- What if my shaft is smaller than 152mm?For shafts under 152mm diameter, this 11mm probe may not provide optimal measurement. Consider the Bently Nevada 3300 XL 8mm Probe for smaller diameter applications.
Need Application Engineering Support? Our partnership network includes industry experts. We collaborate with Oiltech Controls Limited and PLCDCS HUB Limited.
Contact our sales team for pricing and technical data: sales@powergearx.com or WhatsApp +86 18030005825.
