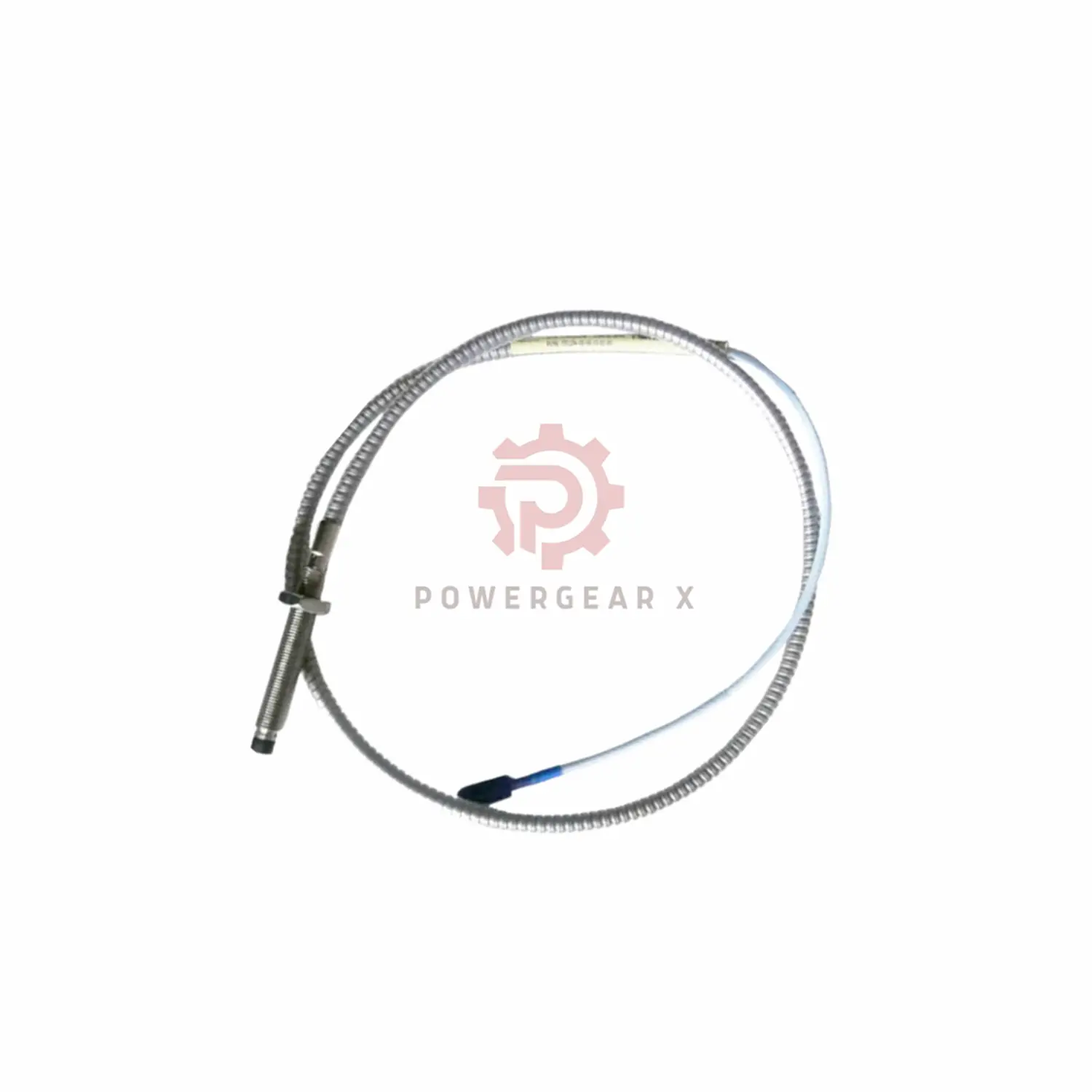

Bently Nevada 3300 XL Long-Reach Vibration Probe
Essential Features
9-meter industrial vibration sensor for hard-to-reach machinery. Made in USA with stainless steel body and gold ClickLoc connectors. No special approvals needed.
Product Identification
- Brand: Bently Nevada
- Model: 3300 XL 11mm Probe
- Full Code: 330708-00–40–10–02–00
Code breakdown:
00: 0″ unthreaded section
40: 4.0″ case length
10: 9.0 meter cable
02: Standard ClickLoc connector
00: No agency approvals needed
Critical Specifications
- Cable length: 9.0 meters (29.5 ft)
- Resistance: 8.5Ω ±1.1Ω
- Temperature range: -51°C to +177°C
- Min bend radius: 25.4 mm (1.0 in)
- Weight: 0.17 kg
Physical Construction
- Thread: 5/8-18 UNF
- Case: AISI 304 stainless steel
- Tip: Polyphenylene sulfide (PPS)
- Seal: Viton O-ring (pressure rated)
Installation Guide
- Max torque: 45.2 N•m (400 in•lb)
- Safe torque: 15.2 N•m (133 in•lb)
- Connector torque: Finger tight only
- Temp warning: Do not use below -34°C
Compatible Systems
Works with all 3300 XL monitors. Factory-calibrated for steel machinery (other materials available).
Package Includes
- 1x vibration probe (9m cable)
- Installation guide
- 12-month defect warranty
Shipping Options
FedEx | UPS | DHL (global express available)
Common Questions
Q: How long is the cable exactly?
A: 9.0 meters (29.5 feet) – longest standard option.
Q: Does it include connector protector?
A: No – this model has standard connectors (option 02).
Q: Can I use this in high-pressure systems?
A: Contact us for custom pressure testing – not standard.
