Quick Overview

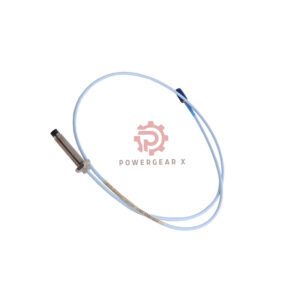

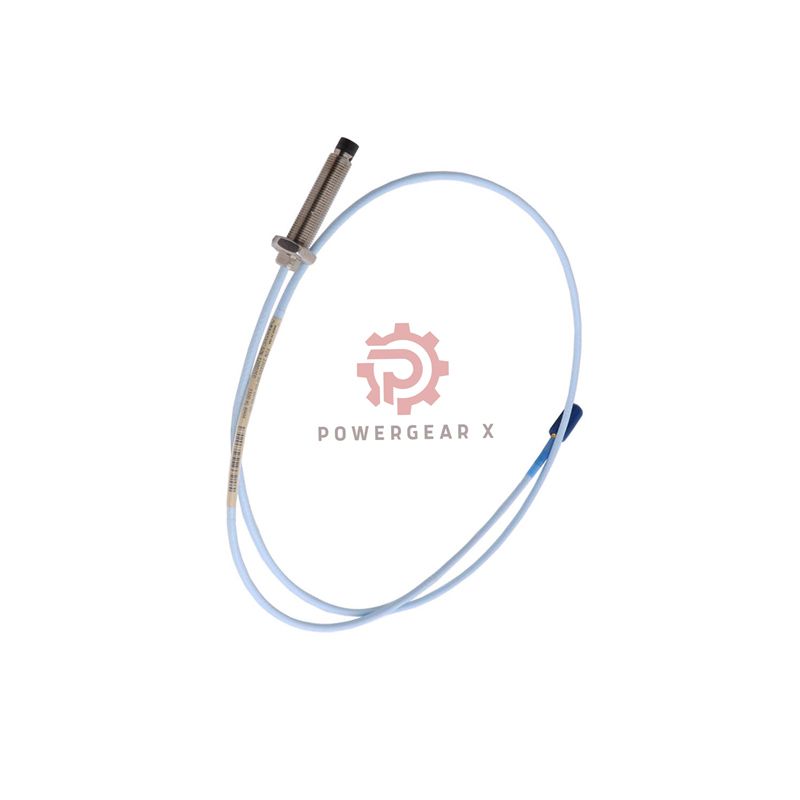

Get the heavy-duty Bently Nevada 330707-05-35-10-11-00 proximity probe. This 3300 XL 11mm sensor is built tough for large machinery. It features special FluidLoc cable to stop oil leaks.
Part Number Details
- Basic Model: 330707 (11mm Probe, 5/8-18 UNF Thread)
- Complete Code: 330707-05-35-10-11-00
- -05: Unthreaded Section = 0.5 inch
- -35: Case Length = 3.5 inches
- -10: Cable Length = 1.0 meter
- -11: Connector = ClickLoc with Protector & FluidLoc Cable
- -00: Agency Approvals = Not Required
Key Technical Data
- Series: 3300 XL Proximity Monitoring System
- Size: Large 11 mm Diameter Body
- Thread: 5/8-18 UNF for Secure Mounting
- Probe Resistance: 5.9 Ohms ± 0.5
- Cable Type: 75 Ω Triaxial with FEP Insulation
- Seal Material: Reliable Viton O-ring
- Temperature Limit: -51°C to +177°C Operating
- Max Torque: 15.2 N•m (133 in-lb) Recommended
- Cable Bend: Minimum 25.4 mm (1.0 in) Radius
- Weight: Lightweight at 0.17 Kg
Installation & Wiring Notes
- Use a calibrated torque wrench. Do not exceed 133 in-lb on the probe case.
- Hand-tighten the connector only. Maximum torque is 5 in-lb.
- Ensure the cable is not bent sharply near the probe head.
- This model uses a triaxial cable. Confirm your system wiring compatibility.
Purchase & Support
- Condition: Brand New, Factory Sealed.
- Warranty: Full 12-Month Quality Guarantee.
- Shipping: Express Options: FedEx, UPS, DHL Available.
- For Inquiries: Email sales@powergearx.com or +86 18030005825 (WhatsApp).
Expert FAQ
What is the main advantage of the FluidLoc cable?
It stops oil from leaking out of your machine through the cable’s inner core. This keeps the area clean and prevents false vibration signals caused by oil in the cable.
When should I choose an 11mm probe over an 8mm one?
Choose the 11mm model for very rough environments. Its thicker body is best for large fans, turbines, or gearboxes where physical impact is a concern.
Does the “-00” suffix mean the probe has no certifications?
Correct. The 330707-05-35-10-11-00 is for standard industrial use. If you need ATEX or CSA for hazardous areas, you must order a different suffix code.
Can I cut and re-terminate the cable if it’s too long?
No. The FluidLoc and triaxial design are factory-sealed. Cutting the cable will break the seal and damage the probe. Always order the exact length you need.
How does the connector protector help during installation?
In tight spaces, connectors can get bumped. The protector acts as a shield. It prevents damage to the delicate pins before you plug it into the proximitor.
