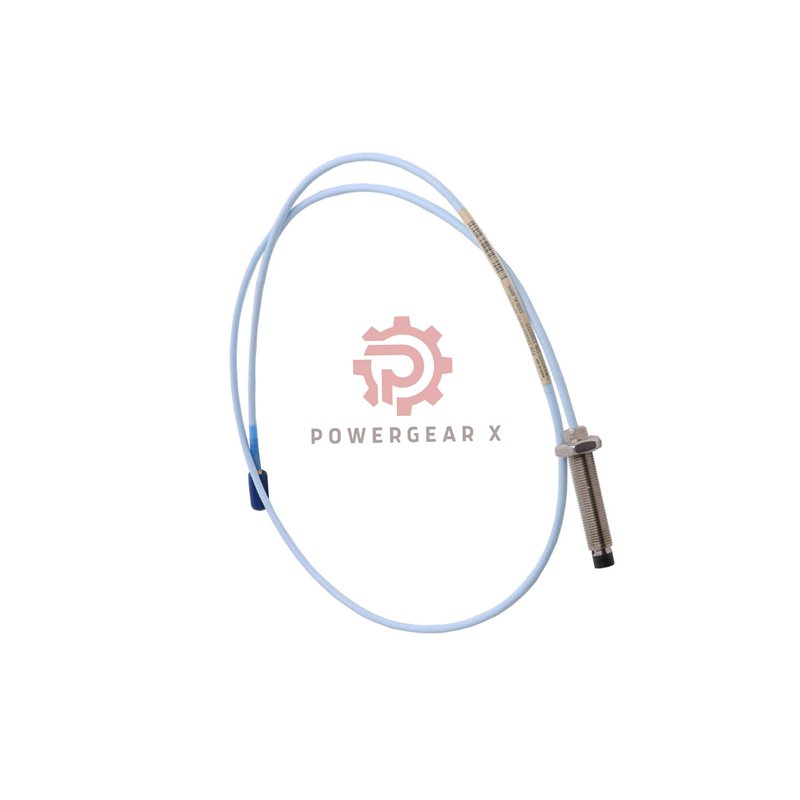

Bently Nevada 330707-00-20-90-02-05 Proximity Probe | Vibration Sensor

Product Overview: High-Precision Vibration Monitoring

This 3300 XL 11 mm Proximity Probe 330707-00-20-90-02-05 from Bently Nevada delivers reliable machinery health data. It measures shaft vibration and position with high accuracy. The robust design ensures long-term performance in harsh industrial environments. It is essential for predictive maintenance programs.

Key Features & Benefits

• Superior Accuracy: Provides precise measurement for early fault detection.
• Robust Construction: Stainless steel case and PPS tip withstand tough conditions.
• Wide Temperature Range: Operates reliably from -51°C to +177°C.
• Easy Installation: Standard UNF threads and clear length options simplify setup.
• Global Compliance: Holds multiple agency approvals for worldwide use.

Complete Technical Specifications

• Brand & Model: Bently Nevada 3300 XL 11mm Probe
• Product Number: 330707-00-20-90-02-05
• Core Specifications:
  • Measurement Principle: Eddy current displacement sensing
  • Probe Tip Diameter: 11 mm
  • Thread Size: 5/8-18 UNF
  • Linear Range: Standard for 3300 XL system
  • Frequency Response: 0 to 10 kHz typical
  • Sensitivity: As per 3300 system calibration (e.g., 200 mV/mil)
• Physical Data:
  • Unthreaded Length: 0 in (Option 00)
  • Case Length: 2.0 in (Option 20)
  • Cable Length: 9.0 meters (Option 90)
  • Probe Resistance: 8.5 ± 1.1 Ohms (for 9m cable)
• Environmental Ratings:
  • Temperature Range: -51°C to +177°C
  • Case Material: AISI 304 Stainless Steel (SST)
  • Tip Material: Polyphenylene Sulfide (PPS)
  • Cable: 75 Ω triaxial with FEP insulation
  • Seal: Viton O-ring for pressure differential
• Installation & Mechanical:
  • Max Thread Engagement: 0.938 in
  • Recommended Case Torque: 15.2 N•m (133 in•lb)
  • Max Case Torque: 45.2 N•m (400 in•lb)
  • Connector Type: Miniature coaxial ClickLoc (Option 02)
  • Connector Torque: Finger tight (Max 0.565 N•m)
  • Min Cable Bend Radius: 25.4 mm (1.0 in)
• Agency Approvals: Multiple (Option 05)
• Shipping Weight: 0.17 Kg

Installation & Compatibility

This probe integrates with Bently Nevada 3300 monitoring systems. Follow the recommended torque specifications for the case threads. Ensure the probe tip has a clear view of the target surface. Use proper cable routing to avoid sharp bends. The ClickLoc connector ensures a secure and quick interface.

Setup & Maintenance

Calibration is typically done through the connected monitor. Regularly inspect the cable and connector for damage. Keep the probe tip clean from oil and debris. The robust design requires minimal routine maintenance. Verify system readings during scheduled machine downtime.

Packaging & Warranty

• Package Includes: One 330707-00-20-90-02-05 probe.
• Warranty: 12-month limited warranty against defects.
• Shipping: We ship globally via FedEx, UPS, and DHL.

Typical Applications & Diagnostics

This probe is ideal for monitoring critical turbomachinery.

• Gas & Steam Turbines
• Centrifugal & Axial Compressors
• Large Electric Motors and Generators
• Pumps and Gearboxes

It helps diagnose issues like:

• Shaft Vibration
• Eccentricity
• Thrust Position
• Radial Play

Frequently Asked Questions (FAQ)

Product Selection & Compatibility

Q: Is this probe compatible with my existing Bently Nevada system?

A: Yes, this 3300 XL probe works with standard 3300 series monitors. Check your monitor’s manual for specific channel requirements.

Q: How do I choose between 1m, 5m, and 9m cable lengths?

A: Select the length that reaches from the measurement point to the monitor with minimal slack. Avoid coiling excess cable tightly.

Installation & Use

Q: What is the correct installation torque for the probe body?

A: Use the recommended torque of 15.2 N•m (133 in•lb). Do not exceed the maximum of 45.2 N•m to avoid damage.

Q: Can I use this probe in high-pressure environments?

A: The probe has a Viton O-ring seal. It is not pressure tested before shipment. For high-pressure applications, contact our sales team for a custom solution.

From Our Engineers’ Experience

Q: What is a common mistake during probe installation?

A: Overtightening the connector is common. It only needs to be finger-tight. Overtightening can damage the connector threads and affect signal quality.

Q: The probe readings seem unstable. What should I check first?

A: First, inspect the probe tip and target surface for cleanliness. Then, check the cable for damage or kinks, especially near connectors and bends.

How to Order & Get Support

Ready to order or need technical advice? Our experts are here to help.

Email: sales@powergearx.com

Phone/WhatsApp: +86 18030005825

We provide fast global shipping and expert support for your automation projects.
