Armored 5-Meter Vibration Probe for Heavy Industry

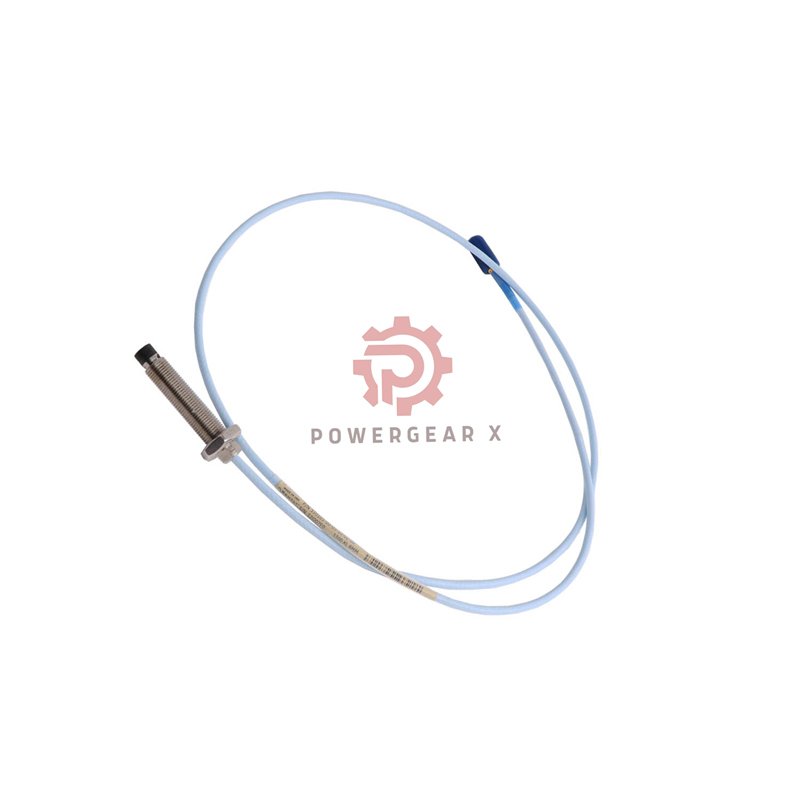

The Bently Nevada 330707-00-20-50-01-05 is a rugged proximity sensor. It combines a 5-meter armored cable with a connector protector. This 11mm probe delivers precise vibration data in demanding environments. Its robust design protects against physical damage and ensures long-term reliability for your critical machinery.
Key Advantages
- Armor Protection: Steel braid shields cable from cuts and crushing.
- Mid-Range Length: 5-meter cable offers ideal reach for many applications.
- Connector Safety: Built-in protector prevents impact damage.
- Global Certification: Multiple approvals for international projects.
- Industrial Construction: Stainless steel case handles tough conditions.
Product Model Breakdown
Manufacturer Details
- Brand: Bently Nevada
- Base Model: 330707 (3300 XL 11mm Probe with Armor)
- Full Item Code: 330707-00-20-50-01-05
Configuration Tree
- 330707: 11mm Probe, 1/2-20 UNF Thread, With Armor
- -00: Unthreaded Length = 0.0 inches
- -20: Case Length = 2.0 inches
- -50: Total Length = 5.0 meters (16.4 feet)
- -01: Connection = ClickLoc with Protector & Standard Cable
- -05: Approvals = Multiple International Certifications
Technical Specifications
Sensor Characteristics
- Probe Size: 11mm Diameter
- Thread Type: 1/2-20 UNF
- Electrical Resistance: 7.2 ± 0.8 Ohms (5m length)
- Cable: 75 Ω Triaxial, FEP Insulated
- Temperature: -51°C to +177°C Operating Range
Installation Parameters
- Case Material: AISI 304 Stainless Steel
- Tip Material: Polyphenylene Sulfide (PPS)
- Max Thread Engagement: 0.750 inches
- Install Torque: 15.2 N•m Recommended
- Min Bend Radius: 25.4 mm (1.0 inch)
- Connector Torque: Finger Tight Only
Important Notes
- Critical Compatibility: Use only with 5-meter Proximitor Sensors.
- Pressure Seal: Viton O-ring design (not factory pressure tested).
- Shipping Weight: 0.17 Kg
Service & Logistics
- Warranty Duration: 12 Months comprehensive coverage.
- Delivery Options: Shipped worldwide via FedEx, UPS, or DHL.
- Lead Time: Quick dispatch from available stock.
Expert FAQ
Product Selection & Compatibility
Q: This probe has armor. Does it also have a connector protector?
A: Yes. Option “-01” means it includes both the armored cable AND a physical protector that screws over the ClickLoc connector for extra defense.
Q: Can I use this 330707-00-20-50-01-05 with a standard 3300 monitor?
A: Only if your monitor uses a dedicated 5-meter Proximitor sensor. Standard 2-meter sensor monitors are not compatible.
Installation & Handling
Q: How do I ground the armored cable correctly?
A: The armor must be grounded at the monitor end to drain interference. Follow your system’s grounding instructions carefully for safe operation.
Q: Is the armored cable more difficult to route?
A: It is stiffer than standard cable. Plan your path with gentle bends. Use proper cable clamps to support its weight without crushing.
Purchasing & Support
Q: What if I need a different cable length but want armor?
A> Contact us. The 330707 base model with armor may be available in other lengths. We can check options for 1m or 9m armored versions.
