Bently Nevada 330704-000-100-10-01-050 Long Armored Probe | Multi-Approved

Long-Body Armored Probe with Global Certifications

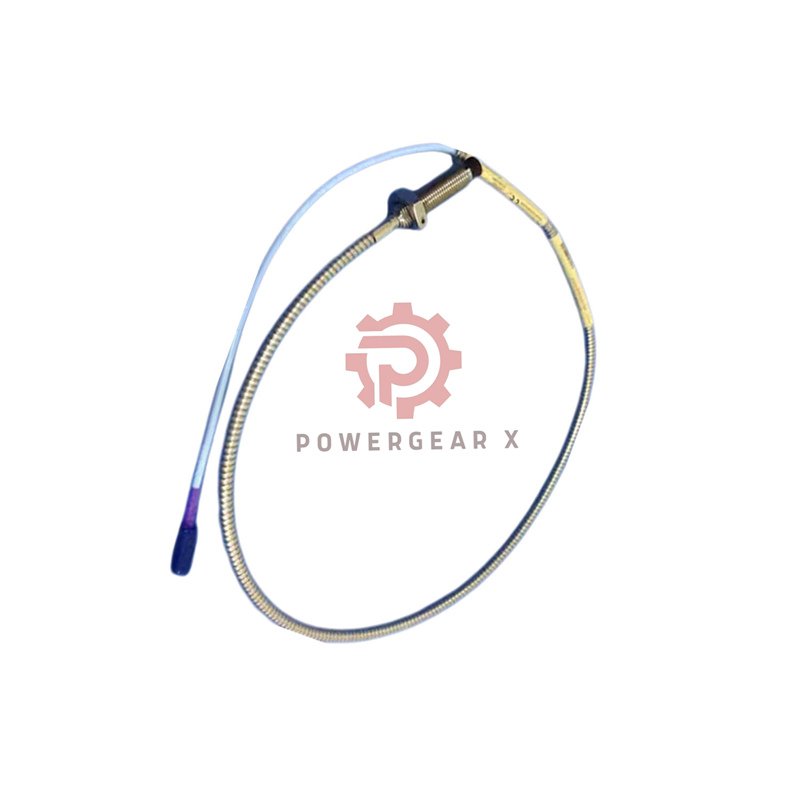

This is the Bently Nevada 330704-000-100-10-01-05, a heavy-duty 3300 XL series sensor. It features a long 100mm armored body and carries multiple international safety approvals. The design includes a connector protector for extra durability. Built for critical monitoring in regulated, high-risk environments. The probe is new, original, and factory-packed, supported by a 12-month manufacturer warranty.

Expert Support on Standby: Email sales@powergearx.com or WhatsApp +86 18030005825 for details.

Engineered for Maximum Reliability

• Extended 100mm Armored Body: Offers superior mounting stability and thread engagement in thick housings.
• Multi-Agency Safety Approvals (-05): Compliant with several global standards for hazardous area use.
• Integrated Connector Protector: Guards the electrical connection from impact and environmental damage.
• Full Cable Armor: Stainless steel braiding shields the entire cable run from physical harm.
• High-Immunity Electronics: Provides stable, accurate signals even near strong electrical noise sources.

Precision Technical Specifications

• Brand & Range: Bently Nevada 3300 XL (11mm Probes)
• Complete Model Code: 330704-000-100-10-01-05
• Key Feature: Armored cable and connector protector.
• Probe Tip Size: 11 millimeters in diameter.
• Mounting Thread: Standard industrial M14 x 1.5 mm.
• Case Length: 100 mm overall. No unthreaded section (000).
• Cable Details: 1.0 meter length, triaxial, with external metal armor.
• Electrical Measurement: DC Resistance: 5.9 Ω (±0.5 Ω).
• EMI Performance Metric: Output error typically 0.001 mil per Gauss at 20 mil gap.
• Connection System: ClickLoc coaxial connector with a protective boot.
• Construction Materials: 304 SST housing, PPS tip, FEP cable insulation.
• Installation Torque Setting: Apply 21.1 N·m (187 in·lb).
• Max Thread Depth: 21 mm.
• Temperature Guideline: For long seal life, avoid storage below -34°C.

Best Practices for Installation

• Depth Verification: Confirm your mounting hole is deep enough to accept the full 100mm probe length.
• Use the Protector: Keep the connector protector installed until you are ready to make the final cable connection.
• Proper Grounding: Ensure the cable armor is correctly grounded per plant electrical standards to prevent noise.
• Secure Routing: Clamp the armored cable at regular intervals to support its weight and prevent stress on the connector.

What You Receive & Our Service

• Item: One Bently Nevada 330704-000-100 armored proximity probe.
• Authenticity: 100% genuine, new, in original factory sealing.
• Warranty: Comprehensive 12-month international warranty.
• Logistics: Shipped globally via reliable carriers: FedEx, UPS, and DHL.
• Added Value: Technical datasheets and access to application engineering support.

Specialist FAQ: Long Armored Probes

Design & Configuration

Q: What is the benefit of the 100mm case length with armor?

A> The long body provides maximum stability in deep mounting holes. Combined with armor, it creates an extremely robust sensor for high-vibration or high-risk physical damage locations.

Q: What is the connector protector, and should I remove it?

A> The protector is a rubber or plastic boot shielding the connector from dirt and impact. Remove it only when connecting the cable, and consider reinstalling it if the connection is exposed.

Certifications & Use

Q: Does “Multiple Approvals” mean it’s approved for use anywhere?

A> No. It means the probe holds several certifications (e.g., ATEX, IECEx). You must check which specific ones it has and if they are valid for your country and the specific hazardous zone classification of your installation site.

Q: Is this probe suitable for outdoor installations?

A> Yes. The stainless steel armor, sealed connector protector, and wide temperature range make it a strong candidate for outdoor use. Ensure the specific approvals cover your environmental conditions.

Ordering & After-Sales

Q: How do I ensure I get the correct certification documents?

A> When ordering the 330704-000-100-10-01-05, specify that you require the full approval documentation. We will include all factory-provided certificates in the shipment.
