Versatile 11mm Probe with Extended Mounting Flexibility

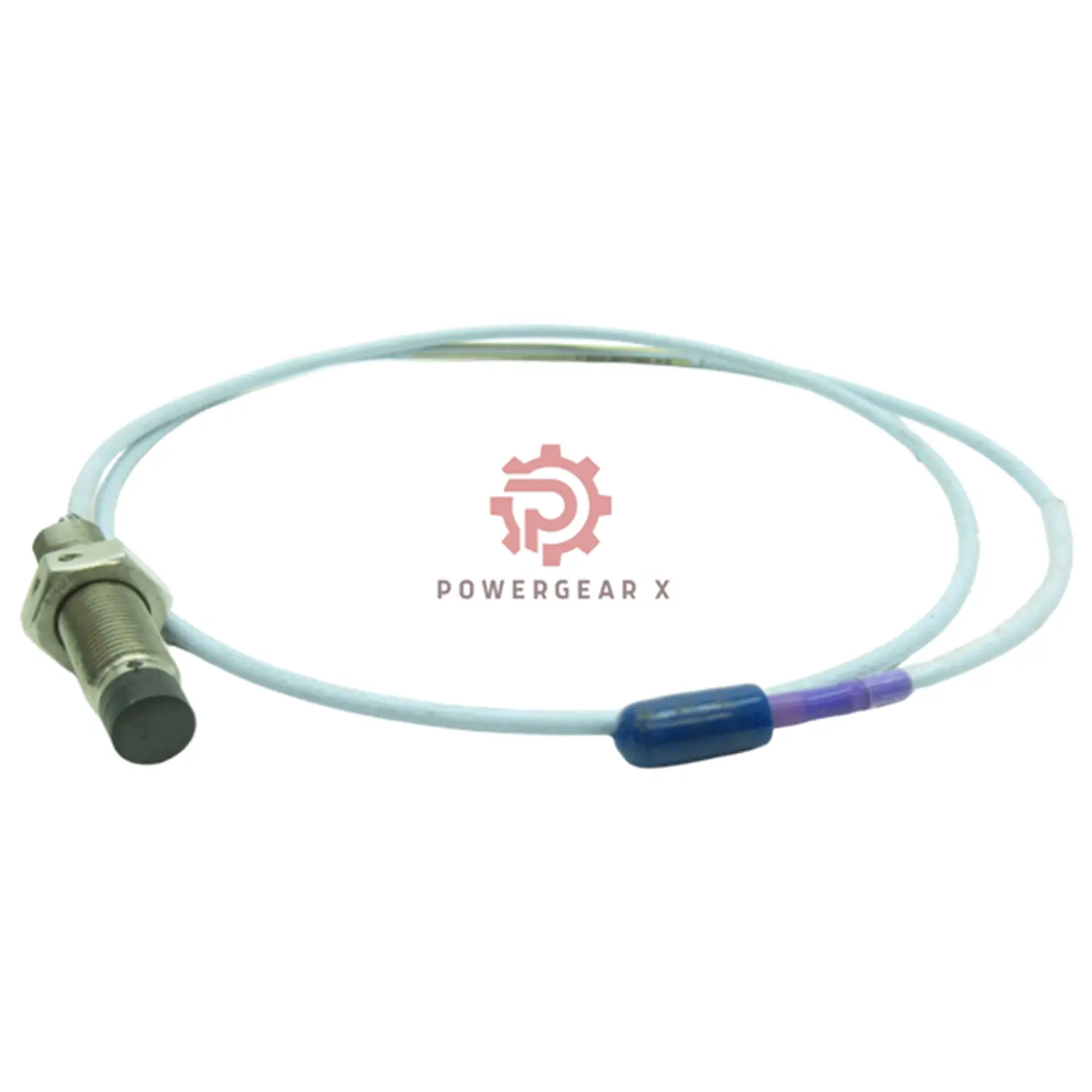

This is the Bently Nevada 330703-020-110-10-01-05, a key component from the high-performance 3300 XL series. It features a unique 20mm unthreaded shoulder and a 110mm overall case. This design offers superior mounting adaptability for complex installations. Equipped with a 1.0-meter triaxial cable and global safety approvals. Each unit is factory-new, original, and backed by our 12-month quality warranty.
Comprehensive Technical Profile
- Exact Part Number: 330703-020-110-10-01-05
- Brand & System: Bently Nevada 3300 XL Monitoring
- Probe Type: 11 mm Diameter Proximity Transducer
- Case Architecture: 110 mm total length with a 20mm unthreaded section.
- Connection Standard: M14 x 1.5 metric mounting thread.
- Cable Integration: 1.0 meter (3.3 feet) factory-fixed triaxial cable.
- DC Resistance Value: Consistent at 5.9 Ohms, with a ±0.5 Ohm tolerance.
- EMI Performance: Minimal output deviation (＜0.001 mil/gauss) in strong magnetic fields.
- Mechanical Load: Supports high installation torque up to 21.1 Newton-meters.
- Thermal Operating Window: From -52°C up to +177°C continuous.
- Compliance: Holds multiple international agency certifications.
Primary Benefits for Engineers
- Adaptable Design: The unthreaded section provides clearance for mounting hardware, simplifying assembly on custom interfaces.
- Universal Compliance: Multiple approvals (option -05) ensure acceptance in most global industrial markets and hazardous areas.
- Exceptional Signal Clarity: The combination of an 11mm tip and triaxial cable delivers a very stable, low-noise signal.
- Immediate Deployment: Shipped as a complete, tested assembly, reducing commissioning time.
- Reliable Supply Chain: Available for quick order fulfillment and express international delivery.
Practical Questions Answered
When is the unthreaded shoulder (option 020) necessary?
It is essential when the probe must pass through an unthreaded clearance hole in a machine bracket, adapter, or housing before engaging the final threaded hole in the main casing.
How does the 110mm case length benefit installation?
The longer body provides ample reach. This is useful on machines with thick outer casings or when additional thermal insulation is required between the probe tip and the external environment.
Is the triaxial cable compatible with standard 3300 extension cables?
Yes. The connector is standard. You can connect it to standard Bently Nevada triaxial extension cables to reach your monitoring system.
What do the magnetic field effect numbers practically mean for my application?
They indicate high immunity. Even near large motors or generators, the probe’s measurement error will be negligible, ensuring data accuracy for protection and analysis.
How can I purchase and what support is included?
Contact us via email or WhatsApp for a quote. We offer fast shipping via FedEx, UPS, or DHL. Every 330703-020-110-10-01-05 includes a 12-month warranty and technical data sheets.
Ordering Details & Commitment
- Supply Item: Genuine Bently Nevada probe, part number 330703-020-110-10-01-05.
- Product State: New, unused, in original manufacturer’s sealed packaging.
- Quality Assurance: Full 12-month factory warranty against material or workmanship defects.
- Shipping Options: Available for expedited delivery worldwide through major couriers.
For inventory checks, pricing, or technical support, please contact our team.
