Product details

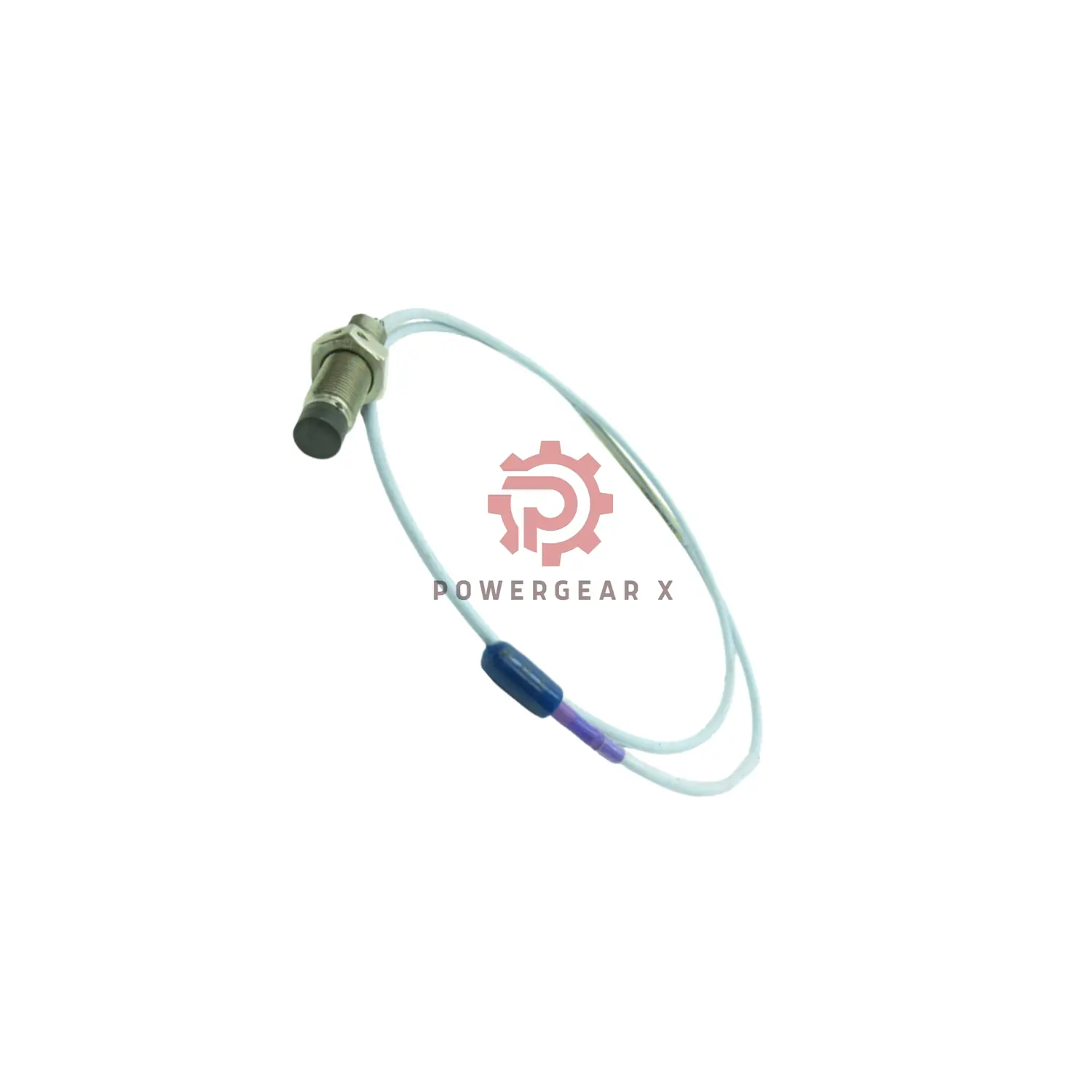

Bently Nevada Long-Reach Sensor: Model 330703-000-178-10-02-00
This is a special long-case version of the famous 3300 XL proximity probe. The probe is brand new and 100% original. It comes directly from the factory in sealed packaging. This model is perfect for unique mounting situations requiring deep reach.
Why Choose This Long-Case Probe?
- Exceptional Reach: Features an extra-long 178 mm (7 inch) stainless steel case.
- Large Sensing Area: 11 mm probe tip provides a stable and wide measurement field.
- Heavy-Duty Thread: M14 x 1.5 mm metric thread for secure installation.
- Proven Reliability: Same high-quality construction and materials as standard 3300 XL probes.
- Direct Replacement: Use it to replace older long-case probes in existing machinery.
Complete Product Specifications
Product Identity & Ordering Code
- Manufacturer: Bently Nevada
- Complete Part Number: 330703-000-178-10-02-00
- Product Line: 3300 XL 11 mm Proximity Probes
- Condition: New & Original in Factory Packing
Critical Dimensions
- Case Length: 178.0 mm (7.0 inches)
- Probe Diameter: 11 mm
- Thread Specification: M14 x 1.5 mm
- Cable Length: 1.0 meter (3.3 feet)
- Max Thread Engagement: 21 mm
Electrical & Signal Characteristics
- Probe DC Resistance: 5.9 ± 0.5 Ohms
- Cable Type: 75-ohm Triaxial, FEP insulated (standard).
- Connector: Miniature Coaxial ClickLoc.
- Magnetic Immunity: Excellent (e.g., 0.009 mil pp/gauss at 2.5 mm gap).
Durability & Environmental Limits
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Case Material: AISI 304 Stainless Steel
- Tip Material: Chemical-resistant PPS (Polyphenylene Sulfide)
- Recommended Mounting Torque: 21.1 N·m (187 in-lb)
- Seal Note: For long seal life, avoid constant temperatures below -34°C (-29°F).
Package, Warranty & Shipping
- One (1) genuine Bently Nevada 330703-000-178-10-02-00 probe.
- All original factory materials included.
- Full 12-Month Manufacturer Warranty provided.
- Fast international shipping via FedEx, UPS, and DHL is available.
Typical Applications & Selection Advice
This 178mm long-case probe is designed for specific applications. It is used where the sensor must pass through a thick housing, insulation layer, or adapter before reaching the target shaft. Common in large turbines, generators, and custom machinery. Select this model only if your technical drawings specify a long-case probe.
Expert FAQs
Q: When would I need a 178mm case instead of a standard 40mm or 60mm case?
A: You need the 178 mm case when the distance from the mounting surface to the target (shaft) is very large. This happens with deep bearing housings, when using special adapters, or when mounting through insulation jackets on machinery.
Q: Does the longer case affect the probe’s sensitivity or electrical performance?
A: No. The case length is a mechanical design feature. The internal sensing coil and electronics are identical to shorter probes. The electrical specifications like resistance and scale factor remain the same.
Q: Is the cable on this model also extra-long?
A: No. The cable length is a separate option. This model (-10) has a standard 1.0-meter integral cable. The “178” refers only to the metal case length. You can use extension cables to reach your monitor.
Q: How do I properly install such a long probe to avoid damage?
A> Support the probe body during installation. Do not let it hang unsupported by just the threads. Ensure the mounting hole is clean and deep enough. Use the recommended torque of 21.1 N·m. Avoid side-loading or bending the long case.
Q: What is your return policy and how can I get a quote for multiple units?
A> We accept returns for unopened, factory-sealed items. For technical compatibility issues, contact us first. For volume pricing on the 330703-000-178-10-02-00 or other models, please email our sales team directly for a custom quote and fastest shipping options.
Unsure if this is the correct long-case model for your machine? Send us your old part number or machine drawings for verification.
