Product details
Certified Probe for Hazardous Area Monitoring

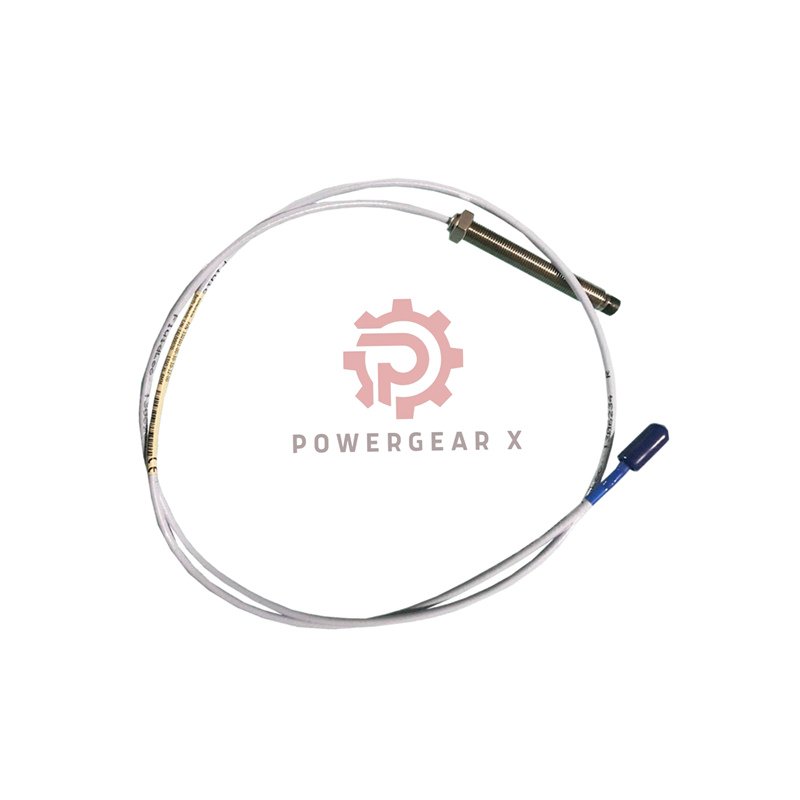

This Bently Nevada 330702-00-30-50-02-05 is a safety-certified solution. It features a robust 3-inch case and a matched 5-meter cable system. Designed for reliable vibration measurement in classified hazardous locations, it ensures compliance and performance.
Part Number Breakdown
- Product Family: Bently Nevada 3300 XL 11mm Probes
- Complete Model: 330702-00-30-50-02-05
- 330702: Base 11mm Armored Probe (1/2-20 UNF)
- 00: Unthreaded Length = 0.0 inch
- 30: Case Length = 3.0 inches (Long, Secure)
- 50: Integrated Cable = 5.0 meters
- 02: Connector = Standard ClickLoc
- 05: Approvals = Multiple (CSA, ATEX, IECEx)
- Safety Critical: The ‘-05-‘ suffix confirms global hazardous area certifications for projects requiring compliance.
- Matched Length System: This 5m probe is engineered to work exclusively with a 5m Proximitor sensor.
- Secure Mounting: The longer 3-inch case offers excellent vibration dampening and installation stability.
Core Technical Specifications
- Electrical Data: DC Resistance: 7.2 Ω ± 0.8 (5m length).
- Mechanical Setup:
- Thread Type: 1/2-20 UNF.
- Installation Torque: Use 15.2 N·m (133 in·lb).
- Minimum Bend Radius: 25.4 mm (1.0 in).
- Build Quality: 304 Stainless Steel housing, PPS tip, Viton O-ring seal.
- Temperature Rating: Operational from -51°C to +177°C.
- Seal Caution: Continuous temperatures below -34°C risk seal damage.
Expert FAQs & Buying Assistance
Compliance & Certification
- What documents come with this certified probe?
- The 330702-00-30-50-02-05 includes necessary certification documents (e.g., ATEX Certificate). These are vital for your site’s safety audit and compliance records.
- Can I use this probe in a Zone 1 area?
- Yes, but only when installed with an approved intrinsic safety barrier, as per Bently Nevada drawing 141092. The probe itself carries the necessary component certification.
System Configuration
- Why is the cable length matching so strict?
- The 3300 XL system’s calibration is precise. A 5m probe must connect to a 5m Proximitor. Mixing lengths causes incorrect gap voltage and scaling, leading to false alarms.
- Does the standard cable (‘-02-‘) suffice for outdoor use?
- The standard cable is for general industrial use. For prolonged outdoor exposure or direct moisture, consider a FluidLoc cable (option ‘-12-‘) for better durability.
Ordering & Support
- What is your after-sales support policy?
- We provide a full 12-month warranty against defects. For shipping, we offer reliable options with FedEx, UPS, and DHL to get your parts on site quickly.
Warranty & Shipping Information
Your investment is protected by our 12-month quality warranty. We ensure prompt dispatch using major couriers: FedEx, UPS, and DHL, complete with tracking.
Need certified products for your hazardous area project? Contact our team for expert guidance.
