Certified Short-Reach Vibration Probe with Full Protection

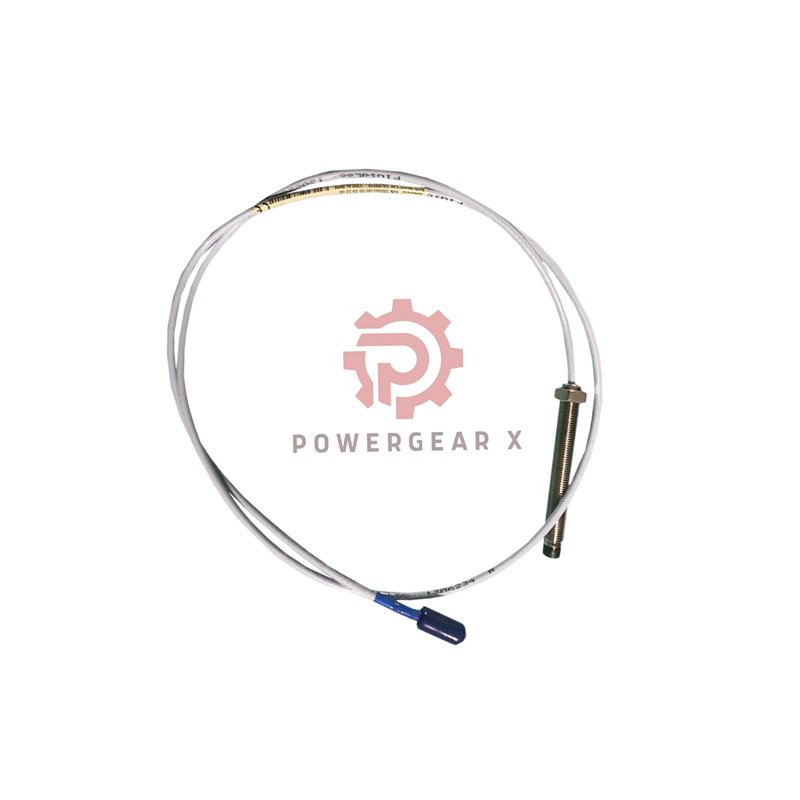

This Bently Nevada 3300 XL 11 mm Probe delivers certified performance in compact spaces. Model 330702-00-30-10-01-05 features a short 1-meter cable, connector guard, and a 3-inch deep case. It carries multiple global safety approvals. It is the ideal sensor for hazardous areas where equipment is densely packed. U.S. manufacturing ensures top-tier quality.
Integrating sensors into certified control systems? Let us assist: sales@powergearx.com or +86 18030005825 on WhatsApp.
Key Advantages for Tight, Certified Spaces
- Hazardous Area Certified: Multiple approvals (ATEX, IECEx, CSA) for use in classified locations.
- Compact & Neat: 1.0-meter cable minimizes excess wiring in crowded panels or near machinery.
- Robust Connection Point: Connector protector defends against physical strain and accidental unplugging.
- Deep Installation Capability: 3.0-inch case length allows secure mounting in substantial structural bosses.
- Strong Signal Integrity: Short cable length provides excellent signal strength with minimal loss.
Complete Product Configuration
- Product Identification
- Brand: Bently Nevada
- Series: 3300 XL 11mm Proximity Probes
- Complete Part Number: 330702-00-30-10-01-05
- 330702: Core Model (11mm, 1/2-20 UNF, Armored)
- 00: Unthreaded Length = 0.0 in
- 30: Case Length = 3.0 in
- 10: Cable Length = 1.0 metre
- 01: Connector = ClickLoc with Protector, Standard Cable
- 05: Approvals = Multiple (CSA, ATEX, IECEx)
- Mechanical Design
- Housing: AISI 304 Stainless Steel
- Sensing Tip: PPS (Polyphenylene Sulfide)
- Mounting Thread: 1/2-20 UNF
- Case Length: 3.0 inches (76.2 mm)
- Recommended Torque: 15.2 N•m (133 in-lb)
- Pressure Seal: Viton® O-Ring
- Electrical Performance
- Cable Type: 75 Ω Triaxial, FEP Insulated
- Cable Length: 1.0 metre (3.3 feet)
- DC Resistance (RPROBE): 5.9 Ω ± 0.5
- Termination: Miniature Coaxial ClickLoc with Protector
- Minimum Bend Radius: 25.4 mm (1.0 in)
- Ratings & Compliance
- Operating Temperature: -51°C to +177°C
- Safety Certifications: ATEX, IECEx, CSA (for intrinsically safe systems).
- Temperature Class: Rated for T1 through T5 per EPL Ga/Gc/Dc.
- Storage Mandate: Must be stored above -34°C prior to installation.
Specialist FAQs & Selection Guidance
- What makes this 330702-00-30-10-01-05 model suitable for “tight spaces”?The 1m cable avoids long, coiled excess wires that can cause clutter and interference in compact control cabinets or near machine bearings.
- Can I use this certified probe in a Division 2 / Zone 2 area without barriers?For Division 2/Zone 2, it may be used with appropriate non-incendive “nA” or “ec” certified circuits. Always consult the system drawing and your safety engineer.
- Why choose a standard cable over FluidLoc for a certified probe?If the environment is dry or only has occasional non-aggressive moisture, the standard cable is a cost-effective choice that still meets the safety certifications.
- Is the 3-inch case required for all installations?No. It is needed only when the mounting hole depth or boss thickness requires extra probe body length for proper thread engagement and sealing.
- How do I order the correct intrinsic safety barrier for this probe?The probe requires certified zener barriers or isolators. Refer to Bently Nevada drawing 141092. We can help source compatible system components.
Simple Procurement Process
- Warranty Coverage: All probes include a 12-month warranty for assurance.
- Fast Global Shipping: We dispatch orders promptly via FedEx, UPS, or DHL.
- Buying Checklist: Select this for short-run, certified applications. Confirm your area classification. Ensure your cabinet layout accommodates a 1m cable.
- Project Support: Contact us for system integration advice and volume pricing.
