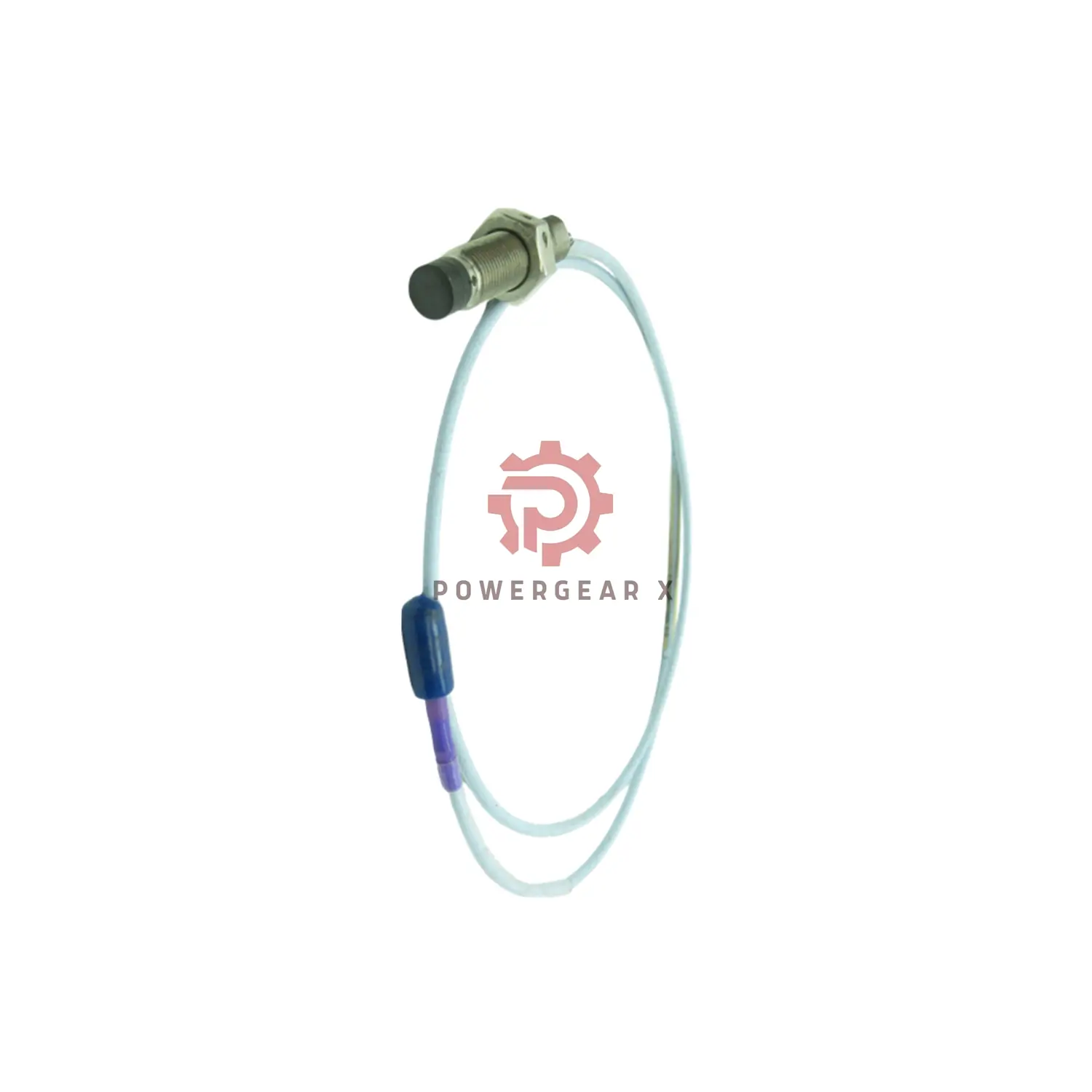

Bently Nevada 330702-00-10-90-11-05 11 mm Proximity Probe

Bently Nevada 3300 XL Armored Probe with FluidLoc™ Technology

Industrial-strength vibration monitoring with certified approvals. Made in USA. Global shipping available.

Part Number Breakdown

• Base Model: 330702 (11mm armored probe)
• Unthreaded: 00 = 0.0″
• Case Length: 10 = 1.0″
• Cable Length: 90 = 9.0 meters
• Connection: 11 = FluidLoc™ with ClickLoc
• Certification: 05 = Multiple Approvals

Technical Specifications

• Part No: 330702-00-10-90-11-05
• Resistance: 8.5Ω ±1.1Ω
• Cable Type: 75Ω triaxial armored
• Thread: 1/2-20 UNF (Max 0.75″)
• Bend Radius: 25.4mm minimum
• Connector Torque: Finger tight (0.565 N•m max)
• Seal Material: Viton O-ring
• Weight: 0.17kg (0.37 lbs)

Installation Guide

• Apply 15.2 N•m torque to case
• Hand-tighten connectors only
• Keep above -34°C to protect seals
• Maintain cable bend radius

Certifications & Shipping

• Multiple agency approvals (option 05)
• 12-month warranty
• Worldwide delivery: FedEx, UPS, DHL

Expert FAQs

• Q: What does “armored” mean?
  A: Extra stainless steel protection for cables in harsh areas
• Q: FluidLoc™ advantage?
  A: Special waterproofing for wet/humid environments
• Q: Approval certifications?
  A: Meets multiple international industrial standards
• Q: Minimum temperature?
  A: Don’t use below -34°C to avoid seal damage
• Q: Thread alternatives?
  A: M16x1.5 version available (24mm max engagement)
