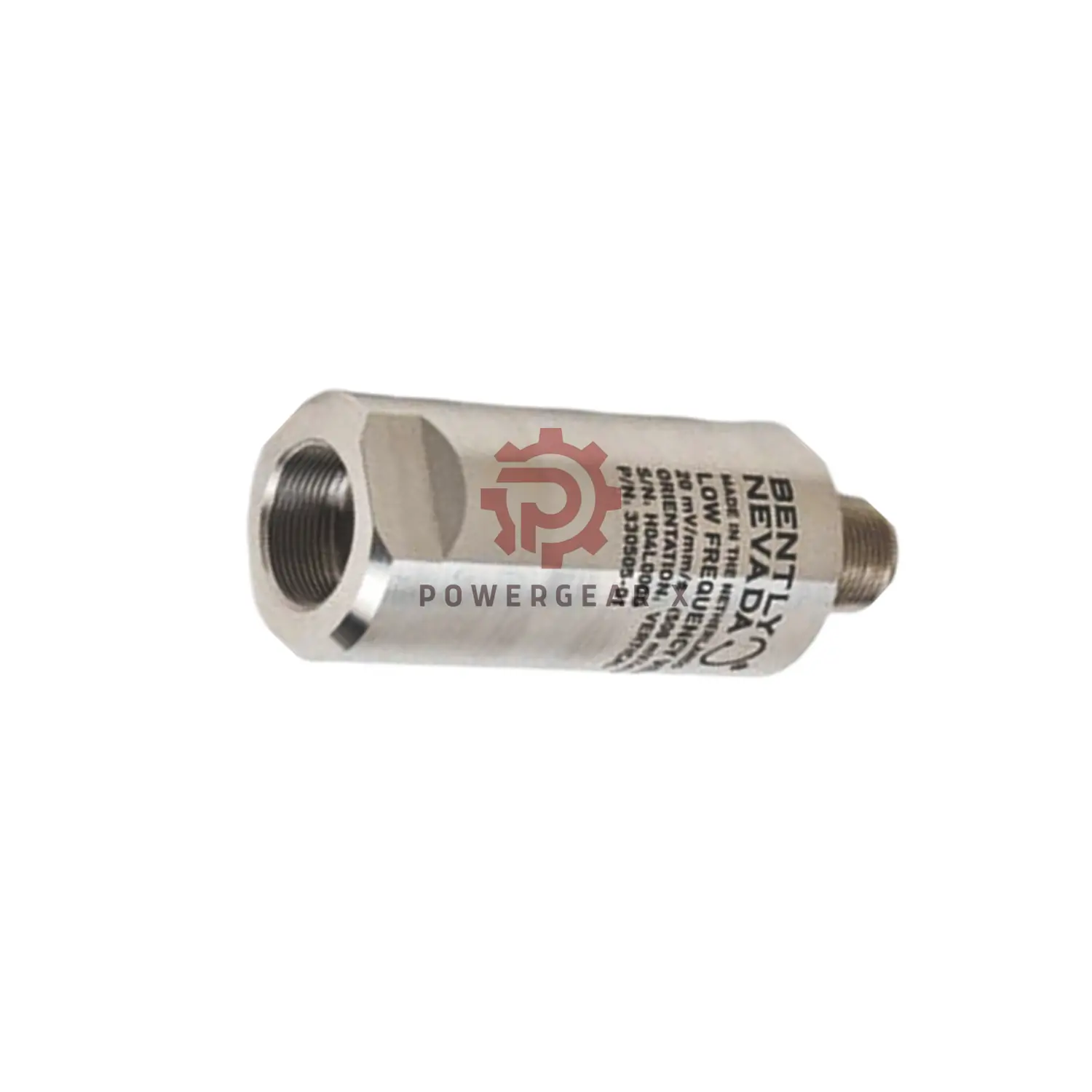

Bently Nevada 330505-03-02-04 Low Frequency Velocity Sensor

Key Technical Data

• Range & Sensitivity: 102 mm/s (4 in/s) peak; Sensitivity 20 mV/mm/s ±10%
• Frequency Response: 0.5–1000 Hz ±3 dB; 1–200 Hz ±0.9 dB
• Output Signal: Bias Voltage -12 ±1 VDC
• Working Temperature: -40°C to +100°C (-40°F to +212°F)
• Shock Resistance: 981 m/s² (100g) peak
• Humidity Resistance: 100% non-submerged; hermetically sealed

Installation Guide

• Mounting Angle: 180° ± 10°
• Thread Size: 3/8-24 UNF-2B with 1/4-20 UNC adapter
• Mounting Torque: Max 46 kg·cm (40 in-lb)

Model Structure

• 330505: Low Frequency Velocity Sensor
• -03: Mounting angle 180° ± 10°
• -02: Thread 3/8-24 UNF-2B
• -04: Mounting adapter 1/4-20 UNC

Package Contents

• One sensor unit 330505-03-02-04
• Original factory packing
