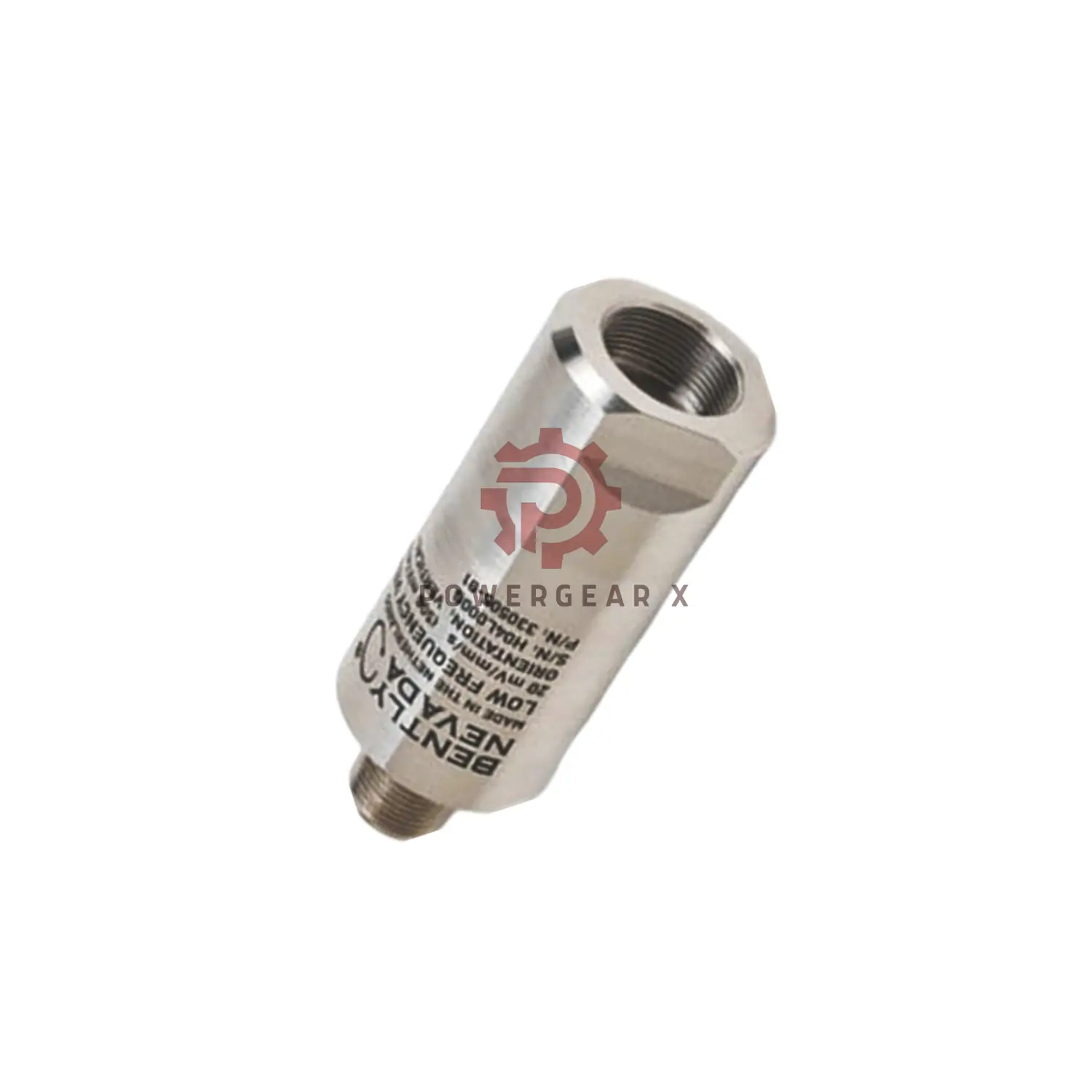

Bently Nevada 330505-03-02-02 Low Frequency Velocity Sensor

Bently Nevada 330505-03-02-02 Low Frequency Velocity Sensor

Product Overview

This sensor measures low-frequency vibrations to protect machines. It detects early faults and helps avoid costly downtime in factories.

Technical Specifications

• Sensitivity: 20 mV/mm/s (508 mV/in/s) ±10%
• Frequency Response:
  • 0.5 to 1000 Hz ±3 dB
  • 1 to 200 Hz ±0.9 dB
• Velocity Range: 102 mm/s (4 in/s) peak
• Amplitude Linearity: ±3% at max velocity
• Output Bias Voltage: -12 ±1 VDC
• Max Cable Length: 305 m (1000 ft) no signal loss with 3500/46M
• Shock Resistance: 981 m/s² (100g) peak
• Operating Temperature: -40°C to +100°C (-40°F to +212°F)
• Humidity Resistance: Up to 100%, hermetically sealed case
• Weight: Less than 375 g (13.2 oz)
• Case Material: Stainless steel 300 series

Model Number Details

• 330505: Low Frequency Velocity Sensor
• -03: Mounting angle 180° ±10°
• -02: Thread 3/8-24 UNF-2B
• -02: Adapter M8 x 1

Compatibility

• Compatible with Bently Nevada 3500/46M systems
• Fits MIL-C-5015 connector systems

Packing List

• One 330505-03-02-02 sensor
• Factory sealed packaging

Shipping Information

• Ships via FedEx, UPS, DHL
• Express and standard delivery available

Warranty

• 12 months factory warranty starting from shipment
