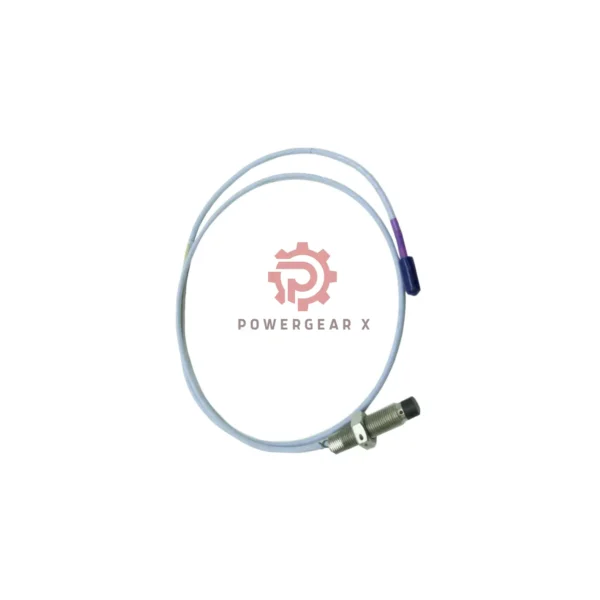

Bently Nevada 330302-000-011-10-90-00-00 | High Temperature Probe

Bently Nevada 3300 HT Probe – Precision Vibration Monitoring for Extreme Environments

Essential Product Description

Industrial-grade high-temperature vibration probe for machinery operating under extreme heat (up to 350°C/662°F). Features a ceramic sensing tip and 316L stainless steel case for maximum durability. Ideal for turbines, compressors, and critical rotating equipment.

Complete Suffix Breakdown (P/N: 330302-000-011-10-90-00-00)

• 000: Unthreaded length = 0mm
• 011: Case length = 11mm
• 10: Hardline cable = 1.0m (3.3 ft)
• 90: Total length = 9.0m (30 ft)
• 00: Cable armor = Without stainless steel
• 00: Agency approval = Not required

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 High Temperature Probe
• Sensitivity: 3.94 V/mm ±9.65% (100 mV/mil)
• Frequency response: 0–6 kHz (±3 dB)
• Measurement range: 4.0mm linear range
• Linearity: ±78 μm deviation from straight line
• Resolution: 0.5mm increments
• Temp range: -34°C to +350°C (-30°F to 662°F)
• Probe resistance: 5.06 Ω (center to outer conductor)
• Minimum target: 30.5mm diameter (flat surface)
• Minimum shaft: 152mm diameter

Core Performance Features

• High-temp stability: Sensitivity stays within ±30% at 350°C
• Environmental resistance: Sealed against dust, moisture, and chemicals
• Anti-interference: Stable with ≤305m (1000 ft) field wiring

Compatibility & Certifications

• Works with Bently Nevada 3300 XL systems
• Made in USA – Industrial safety compliant

Warranty & Shipping

• 12-month warranty against defects
• Global shipping via FedEx, UPS, DHL

Frequently Asked Questions

Q: What’s the total cable length?
A: 9.0 metres total (1.0m hardline + 8.0m extension)

Q: Is armored cable available?
A: This model (suffix 00) is unarmored. Armored version = suffix 01

Q: Minimum target size?
A: 30.5 mm diameter for flat surfaces

Q: Temperature limits?
A: -34°C to +350°C during operation
