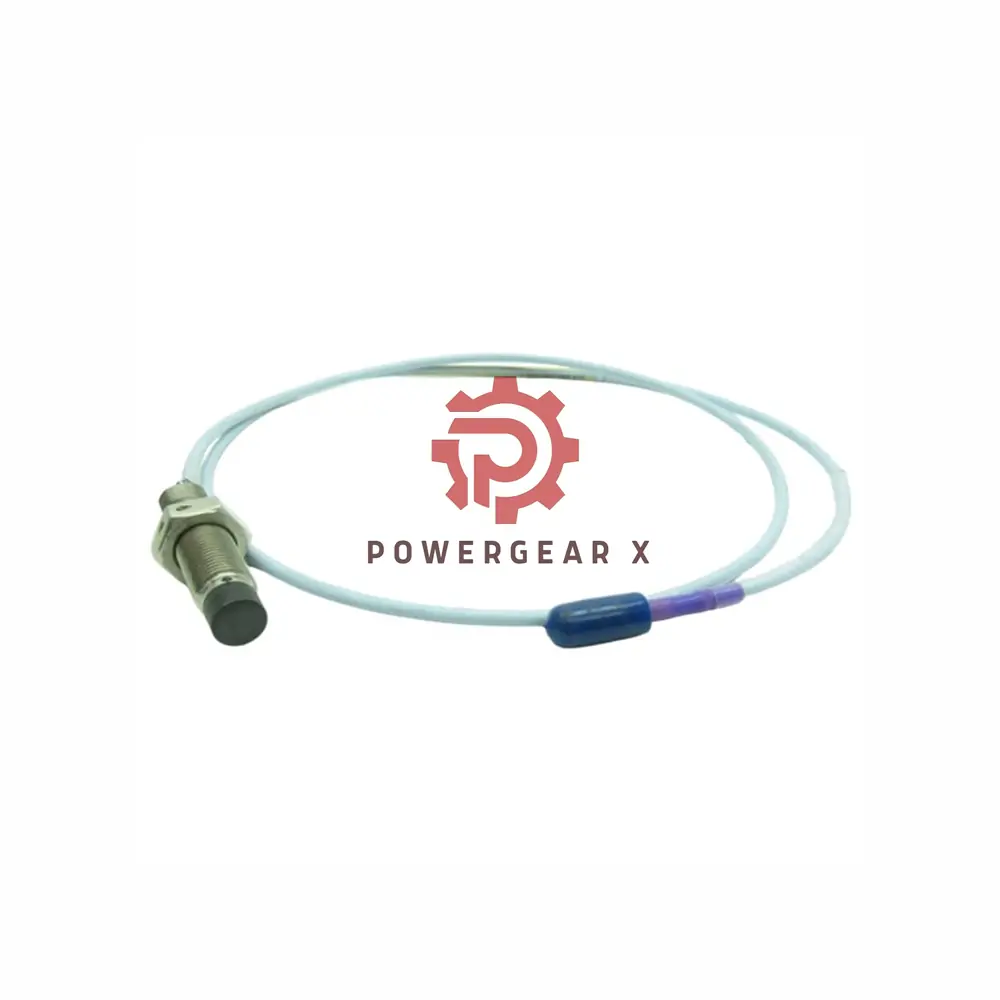

Bently Nevada 330301-000-011-50-90-00-05 | 3300 XL HT Threaded Vibration Probe
Product Overview
Professional threaded high-temperature probe with 3/4-16 UNF threads for secure mounting. Built for extreme conditions (-34°C to 350°C). Features ceramic tip and multiple safety certifications.
Part Number Decoder
| Code Segment | Feature | Specification |
|---|---|---|
| 330301 | Base Model | 3300 XL HT Probe |
| 000 | Unthreaded Length | 0 inches |
| 011 | Case Length | 1.1 inches |
| 50 | Hardline Cable | 5.0 meters |
| 90 | Total Length | 9.0 meters (with extension) |
| 00 | Cable Armor | No armor |
| 05 | Certifications | Multiple global approvals |
Technical Specifications
- Thread Type: 3/4-16 UNF threaded
- Temp Range: -34°C to +350°C
- Sensitivity: 3.94V/mm ±9.65%
- Frequency: 0-6,000 Hz response
- Resistance: 8.11 Ω (5m cable)
- Accuracy: ±78μm linearity
- Target Size: Min 30.5mm diameter
- Material: Ceramic tip + 316L steel
- Weight: 117g/m cable + 12g/cm body
Shipping & Warranty
- 12-month quality guarantee
- Fast shipping: FedEx, UPS, DHL
- Worldwide delivery options
Expert Questions
Q: What’s different about the XL model?
A: Designed for heavier industrial use with threaded body.
Q: Why is resistance higher (8.11Ω)?
A: Due to longer 5m hardline cable section.
Q: Can I use this in explosive areas?
A: Yes, multiple certifications cover hazardous locations.
Q: Thread size for mounting?
A: Standard 3/4-16 UNF threading.
Q: Cable length options?
A: 9m total (5m hardline + 4m extension).
