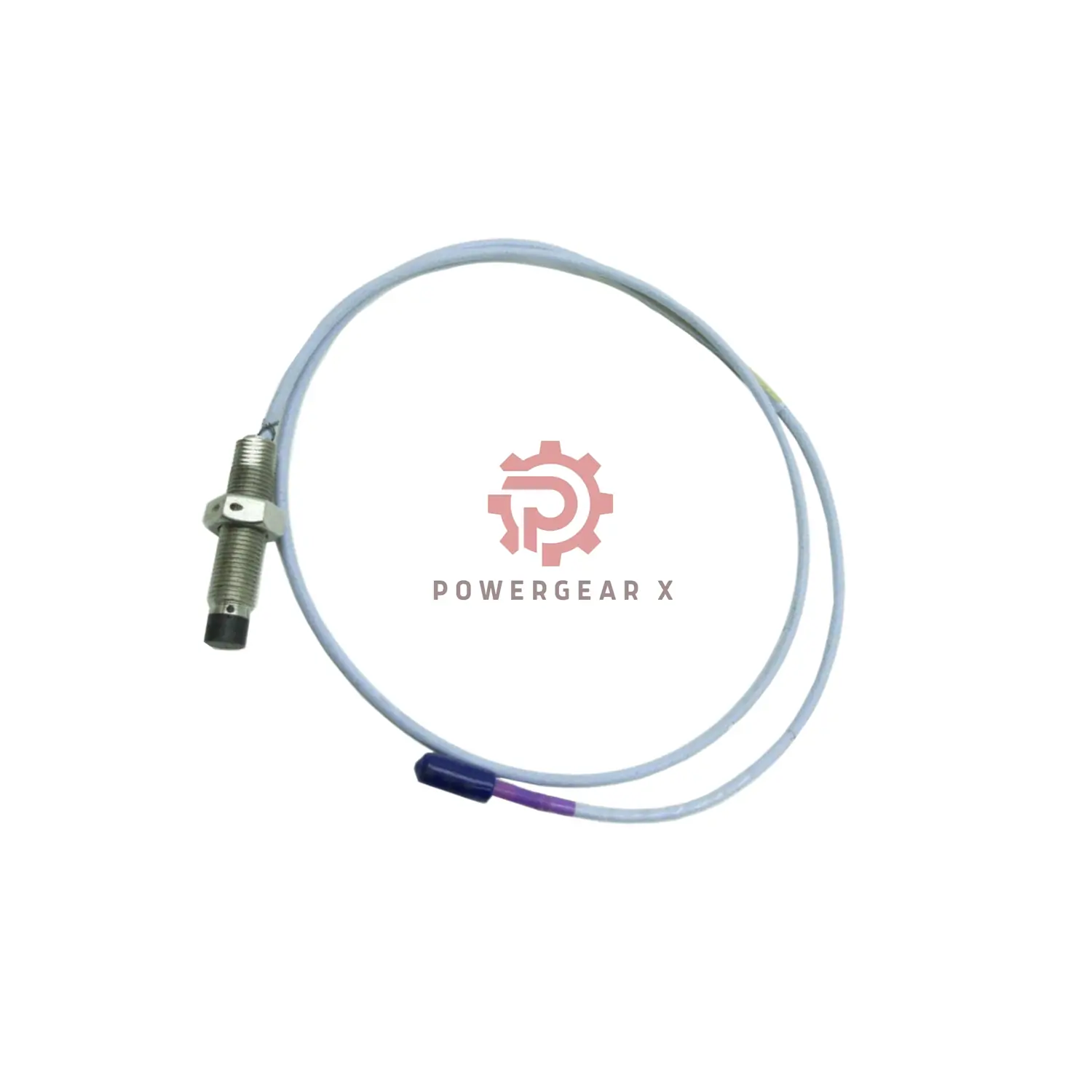

Bently Nevada 330301-000-011-10-90-00-05 High Temperature Probe

Bently Nevada 330301-000-011-10-90-00-05 | 3300 XL HT Compact Vibration Sensor

Core Features

Industrial-grade threaded vibration probe with 3/4-16 UNF mounting. Works in extreme heat up to 350°C. Features global safety approvals and ceramic sensing tip.

Part Number Breakdown

┌ 330301     → 3300 XL HT Probe
├ 000        → Unthreaded: 0 inches
├ 011        → Case: 1.1 inches
├ 10         → Hardline: 1.0 meter
├ 90         → Total: 9.0 meters
├ 00         → Armor: None
└ 05         → Approvals: Multiple global

Technical Specifications

• Thread Type: 3/4-16 UNF industrial
• Temp Range: -34°C to +350°C
• Sensitivity: 3.94V/mm ±9.65%
• Response: 0-6,000 Hz frequency
• Resistance: 5.06 Ω (1m cable)
• Accuracy: ±0.078mm linearity
• Min Target: 30.5mm diameter
• Material: Ceramic tip + 316L steel
• Cable Weight: 117g/m
• Body Weight: 12g/cm

Shipping & Warranty

• 12-month warranty included
• Fast global shipping options
• FedEx, UPS, DHL available
• Delivery tracking provided

Technical Support

Q: What’s the advantage of 1m hardline cable?
A: Better signal quality near heat sources.

Q: Does threading affect temperature rating?
A: No, maintains full 350°C rating.

Q: Certification for EU markets?
A: Yes, multiple global approvals included.

Q: Minimum mounting clearance?
A: Requires 1.1 inches case space.

Q: Vibration detection range?
A: 0-6,000 Hz with ±3dB accuracy.
