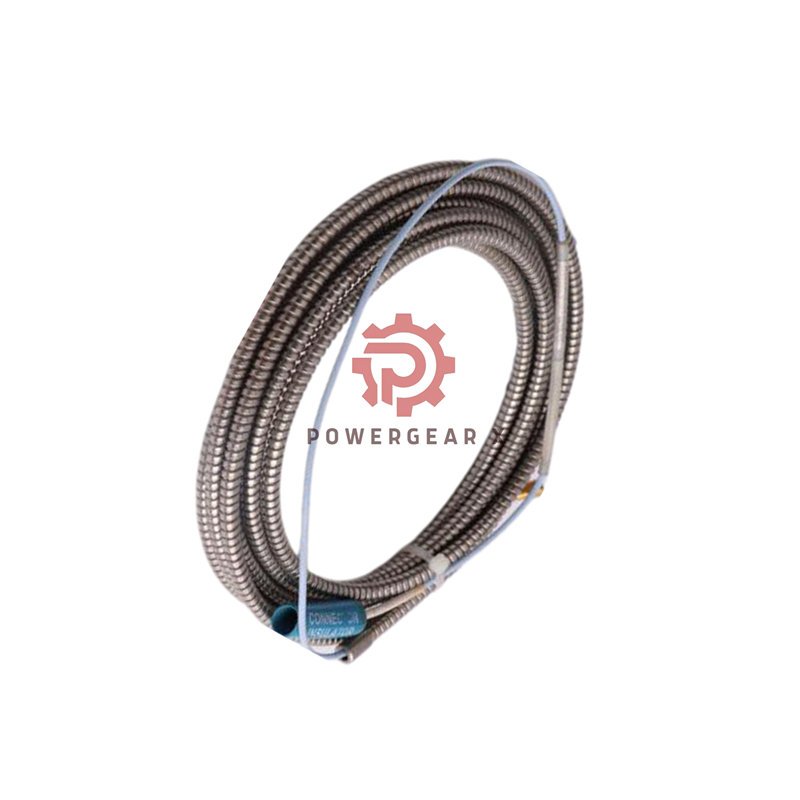

Bently Nevada 330192-00-10-10-CN 3300 XL 8mm ETR Probe with Armor

Bently Nevada 330192-00-10-10-CN 3300 XL 8 mm ETR Probe Overview

Bently Nevada 330192-00-10-10-CN is part of the trusted 3300 XL 8 mm ETR Probe family, built for high-accuracy vibration and displacement monitoring. It features a 3/8-24 UNF threaded case, armored construction, and country-specific approval, ensuring consistent performance in harsh industrial settings.

• Brand: Bently Nevada
• Model: 330192-00-10-10-CN
• Series: 3300 XL 8 mm ETR
• Country of Origin: U.S.A
• Approval: Country Specific (CN)
• Warranty: 12 months

Key Features

• Stainless-steel armored body for strong mechanical protection
• Accurate gap and vibration measurement under dynamic load
• Viton® O-ring pressure seal for enhanced reliability
• Excellent performance in both humid and dry environments
• Fast installation with standard 3/8-24 UNF threading

Technical Specifications

• Overall Case Length: 1.0 in
• Total Cable Length: 1.0 m (3.3 ft)
• Unthreaded Length: 0.0 in minimum
• Thread Engagement: 0.563 in max
• Nominal Resistance (1.0 m): 7.59 ± 0.50 Ω
• Probe Tip Material: Polyphenylene Sulfide (PPS)
• Case Material: AISI 303 or 304 Stainless Steel
• Pressure Seal: Viton® O-ring differential seal
• Humidity Tolerance: <3% ASF variation at 93% RH (IEC 68 2 3)

Temperature & Environmental Data

• Operating Range (Standard): -52°C to +177°C (-62°F to +350°F)
• Extended Tip Range: -52°C to +218°C (-62°F to +425°F)
• Extended Cable Range: -51°C to +260°C (-60°F to +500°F)
• Storage Temperature: Same as operating limits
• Pressure Performance: Designed to seal differential pressure between tip and case

Shipping & Warranty

• Warranty: 12 months standard replacement warranty
• Shipping Options: FedEx, UPS, DHL global delivery
• Secure packaging ensures damage-free delivery

FAQ

• What makes this probe different from standard models?
  The CN version includes country-specific compliance for regulated markets.
• What cable length options are available?
  This model includes a 1.0 m cable; longer options are available on request.
• Can it operate in extreme heat?
  Yes, the probe withstands up to +218°C at the tip and +260°C on the cable.
• How is it protected from pressure and humidity?
  The Viton® O-ring provides a reliable differential pressure seal and humidity resistance.
• Is it compatible with older Bently Nevada systems?
  Yes, it integrates with existing 3300 monitoring systems for seamless upgrades.

Download Technical Datasheet

• Download the official Bently Nevada 3300 XL 8 mm ETR Probe datasheet here:
  3300 XL 8 mm Datasheet (PDF)

Contact Information

• Email: sales@powergearx.com
• WhatsApp: +86 18030005825
