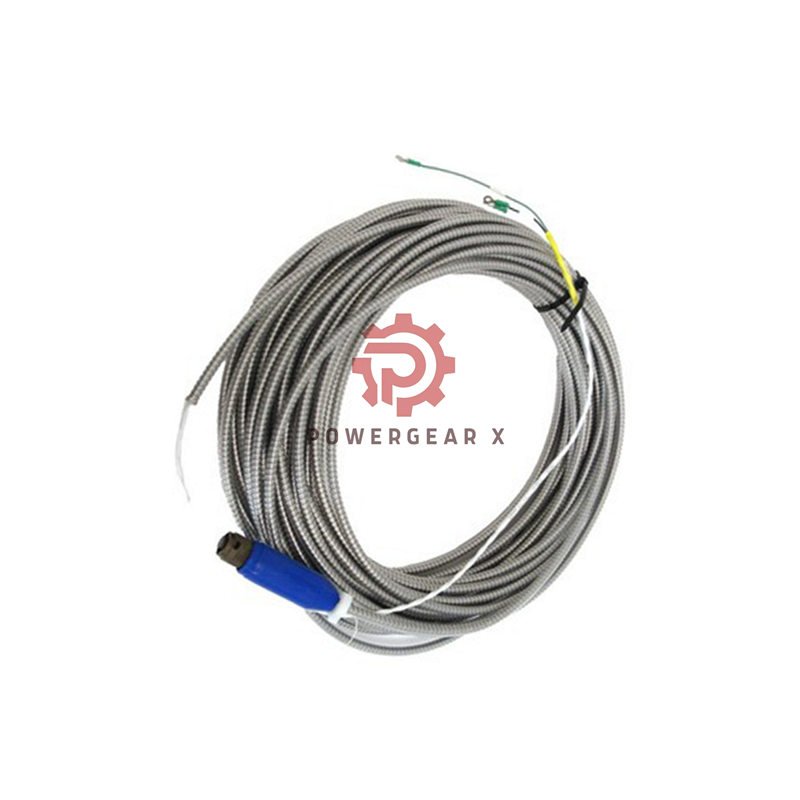

Bently Nevada 330192-00-08-15-05 3300 XL 8mm ETR Probe with Armor – 1.5 m

Bently Nevada 330192-00-08-15-05 3300 XL 8 mm Armored Probe

Brand: Bently Nevada
Model: 330192-00-08-15-05
Warranty: 12-month factory warranty

Brief Product Summary

• The 330192-00-08-15-05 unit belongs to the 3300 XL 8 mm ETR probe series with armor included.
• Case length option “08” equals 0.8 in overall case length. Cable length option “15” equals 1.5 m (4.9 ft).
• The “CN” suffix marks country-specific approval for select markets.

Technical Data Highlights

• Thread size: 3/8-24 UNF, max engagement 0.563 in.
• DC resistance (RPROBE) for 1.5 m length: 7.73 Ω ±0.50.
• Tip material: PPS; case material: AISI 303/304 stainless steel.
• Humidity tolerance: less than 3% change in scale factor after 56 days at 93% RH.
• Standard temp range: -52 °C to +177 °C (-62 °F to +350 °F). Extended tip range to +218 °C, cable/connector to +260 °C.

Performance & Value

• Armored design protects sensor and cable in rugged environments with high vibration.
• 1.5 m cable offers longer reach while maintaining low resistance for signal integrity.
• Compact 0.8 in case length fits tight installation zones around shaft or machinery.
• High humidity and temperature tolerance ensure reliable operation in harsh industrial conditions.
• Sealing with Viton® O-ring helps manage differential pressure between probe tip and case.

Ordering Breakdown

• Model: 330192 → 3300 XL 8 mm ETR probe, threaded, with armor.
• Unthreaded Length Option: “00” denotes zero inches unthreaded section in this config.
• Case Length Option: “08” = 0.8 in.
• Total Length Option: “15” = 1.5 m (4.9 ft).
• Agency Approval Option: “CN” = Country-specific approval required.

Installation & Handling Tips

• Mount probe with correct thread engagement and torque control to avoid damage.
• Do not expose unit below -34 °C (-30 °F) to protect O-ring seal integrity.
• Ensure strong cable routing support to prevent strain on armored jacket and connector.
• Pair with compatible monitoring electronics and follow wiring diagram guidelines for best performance.

Shipping & Contents

• Each probe ships in original sealed factory packaging with protective tip cap and user guide.
• Global shipping available via FedEx, UPS, or DHL.

Contact & Support

• Email: sales@powergearx.com
• WhatsApp: +86 18030005825
• Visit: Powergear X
• Partner: Ubest Automation Limited

FAQ

• Q: What length cable does this probe use?
  A: It uses a 1.5 meter (4.9 ft) total cable length.
• Q: Why use an 8 mm probe tip size?
  A: The 8 mm size offers thicker encapsulation and better mechanical strength.
• Q: Is the armored cable required?
  A: It adds protection—use it when environment has vibration, abrasion or oil exposure.
• Q: What does the “CN” suffix mean?
  A: It indicates the item has country-specific approval rather than standard agency approval.
• Q: Can it operate in high humidity conditions?
  A: Yes — the probe shows less than 3% change in scale factor after 56 days at 93% RH.
