Product details

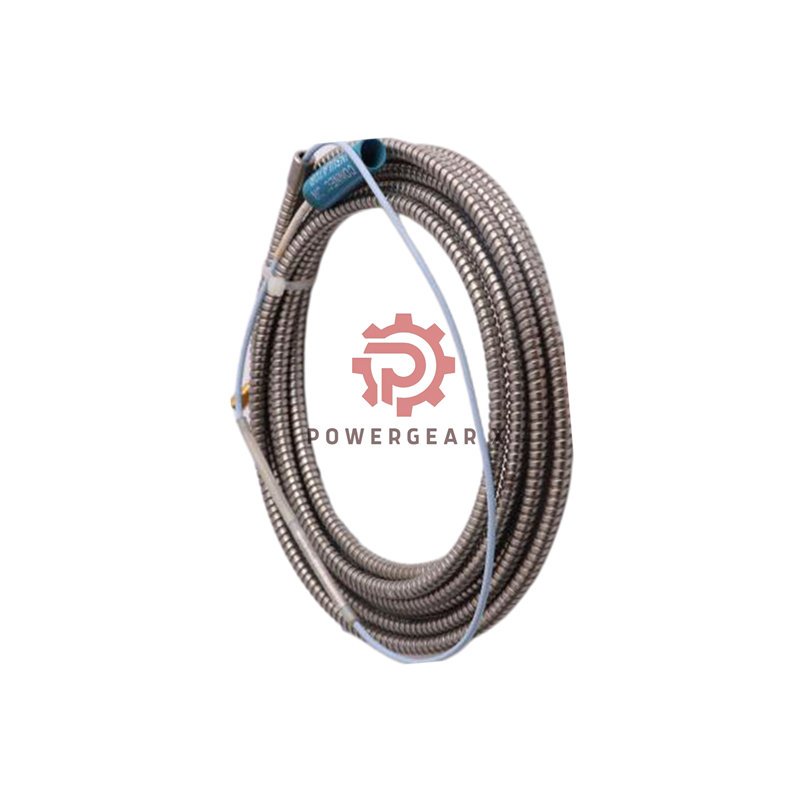

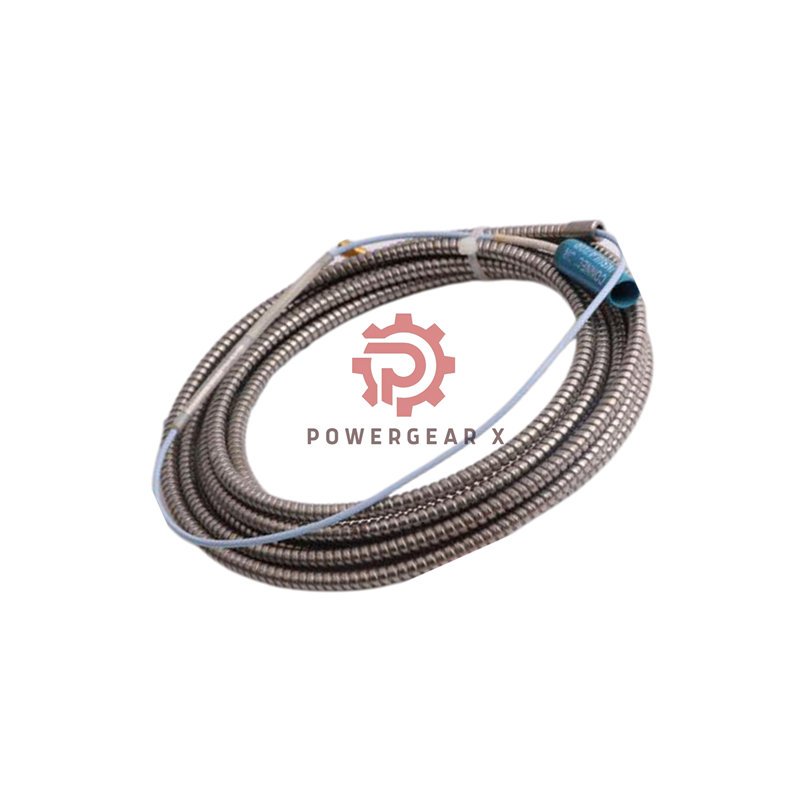

Bently Nevada 330192-00-08-10-CN | 3300 XL 8mm ETR Probe
Bently Nevada 330192-00-08-10-CN is a compact and durable 3300 XL 8mm ETR Probe built for precise shaft vibration detection in rotating equipment. Made in the U.S.A.
Product Highlights
- Compact 8mm probe for accurate shaft vibration measurement
- Armored 1.0m (3.3ft) cable for durability
- Fast response with stable linearity
- Resistant to high temperature and humidity
- Easy thread installation with 3/8-24 UNF connection
- 12-month warranty for quality assurance
Key Specifications
- Model: 330192-00-08-10-CN
- Series: 3300 XL 8mm ETR
- Unthreaded Length: 0.0 in (minimum)
- Case Length: 0.8 in
- Total Length: 1.0 m (3.3 ft)
- Nominal Resistance: 7.59 Ω ±0.50 Ω
- Thread Type: 3/8-24 UNF
- Max Thread Engagement: 0.563 in
- Tip Material: PPS (Polyphenylene Sulfide)
- Case Material: AISI 303 / 304 stainless steel
- Seal: Viton® O-ring pressure seal
- Humidity: ≤3% change in ASF at 93% RH
- Operating Temp: -52°C to +177°C
- Extended Temp: Tip up to +218°C, Cable up to +260°C
Suffix Configuration Tree
- 330192 → Base Model: 8mm ETR Probe
- -00 → Minimum unthreaded length
- -08 → 0.8-inch case length
- -10 → 1.0-meter total cable length
- -CN → Country-specific approval
Performance & Reliability
- Designed to handle differential pressure between probe tip and case
- Maintains accuracy under extreme vibration and humidity
- Suitable for industrial turbines, compressors, and motors
- High temperature tolerance up to +218°C ensures stable performance
- Minimal signal drift and excellent EMI resistance
Installation Guide
- Mount using 3/8-24 UNF thread
- Ensure unthreaded length is 0.8 in shorter than case
- Tighten to 0.563 in engagement depth
- Avoid use below -34°C to protect the seal
- Follow grounding best practices for EMI reduction
Packaging & Delivery
- Includes one 330192-00-08-10-CN probe, tip cover, and installation manual
- Ships via FedEx, UPS, or DHL
- Standard packaging ensures safety during transport
FAQ
- What is the resistance value of this probe?
The nominal resistance is 7.59 ±0.50 Ω for a 1.0m probe. - Can I use this probe in high-temperature areas?
Yes, the tip can handle up to +218°C and cable up to +260°C. - How long is the cable?
The total length is 1.0 meter (3.3 feet) with armored protection. - Is it suitable for outdoor applications?
Yes, the stainless steel case and Viton O-ring provide durability and moisture resistance. - What is the warranty period?
It includes a standard 12-month warranty from shipment date.
Download Datasheet
- For detailed dimensions and setup instructions, download the official datasheet below:
- 3300 XL 8mm Proximity Transducer System Datasheet
