Bently Nevada 330192-00-08-10-05 8mm Probe Specifications

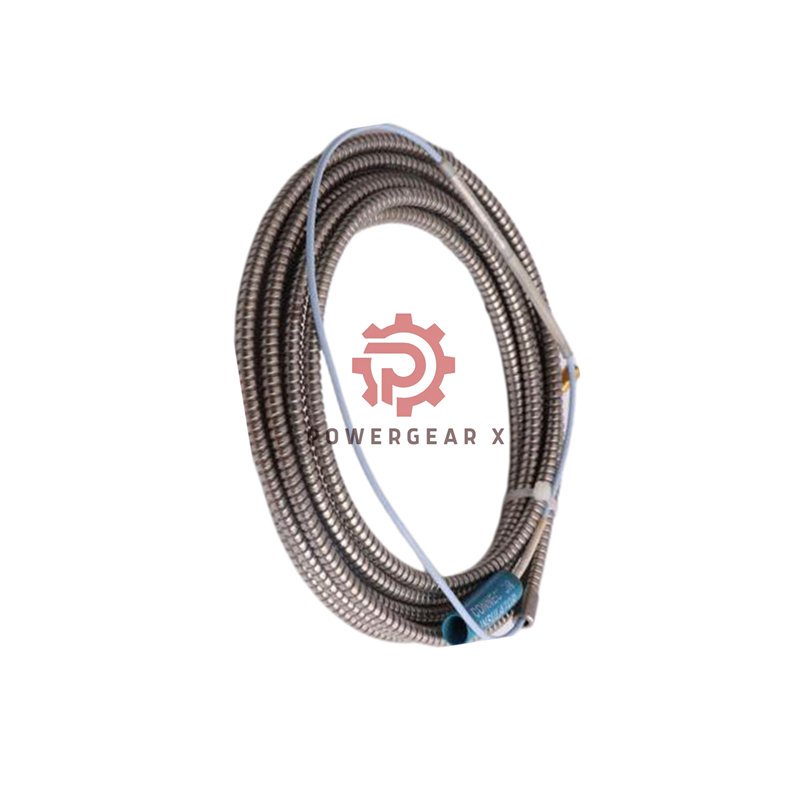

Bently Nevada 330192-00-08-10-05 8mm ETR Probe Overview

The Bently Nevada 330192-00-08-10-05 is a high-performance probe for precise vibration and position sensing. It features CSA, ATEX, and IECEx approvals for safe use in hazardous areas. Built with stainless steel and armored protection, it ensures durability and accuracy across demanding environments.

Quick Highlights

• Manufacturer: Bently Nevada
• Model: 330192-00-08-10-05
• Type: 3300 XL 8 mm ETR Probe, armored, 3/8-24 UNF thread
• Country of Origin: U.S.A
• Warranty: 12 months full coverage

Key Technical Data

• Series: 3300 XL 8 mm
• Unthreaded Length Option: 0.0 in (min)
• Overall Case Length: 08 = 0.8 in
• Total Cable Length: 10 = 1.0 m (3.3 ft)
• Agency Approval: 05 = CSA, ATEX, IECEx
• Nominal Resistance: 7.59 ± 0.50 Ω at 1.0 m
• Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 303 / 304 Stainless Steel
• Thread Engagement: 3/8-24, max 0.563 in
• Pressure Seal: Viton® O-ring differential seal
• Operating Temp (Standard): -52°C to +177°C (-62°F to +350°F)
• Extended Temp Range: Tip: -52°C to +218°C; Cable: -51°C to +260°C
• Humidity Resistance: <3% ASF change at 93% RH (IEC 68-2-3, 56 days)
• Recommended Usage: Avoid operation below -34°C (-30°F)

Why Choose This Model?

• Certified for CSA, ATEX, and IECEx use in explosive environments
• Compact 0.8-inch case allows easier mounting in tight spaces
• Rugged armored design prevents mechanical damage and EMI interference
• Stable DC resistance ensures precise and consistent measurements
• Viton® seal offers long-term protection from oil, dust, and moisture

Installation Notes

• Align probe tip correctly for best gap measurement accuracy
• Keep thread engagement within 0.563 in maximum
• Use clean, dry surfaces to ensure seal reliability
• Do not bend or twist armored cable during installation

Shipping & Warranty

• Standard Delivery: FedEx, UPS, or DHL
• Packed with anti-static protection and shockproof layers
• 12-month manufacturer warranty against defects

FAQ

• Q: Can this probe be used near rotating shafts?
  A: Yes, it’s ideal for turbine, compressor, and motor shaft monitoring.
• Q: What is the benefit of the armored cable?
  A: It prevents physical damage and improves shielding from interference.
• Q: Is the Viton® seal replaceable?
  A: Yes, but it should be replaced only by qualified technicians.
• Q: What approvals does it hold?
  A: CSA, ATEX, and IECEx certifications ensure compliance in hazardous zones.
• Q: How should it be stored?
  A: Keep between -52°C and +177°C in a dry, clean environment.

Download Datasheet

• For full technical specifications and diagrams, download the official manual here:
  3300 XL 8 mm Proximity Transducer Datasheet (PDF)
