Product details

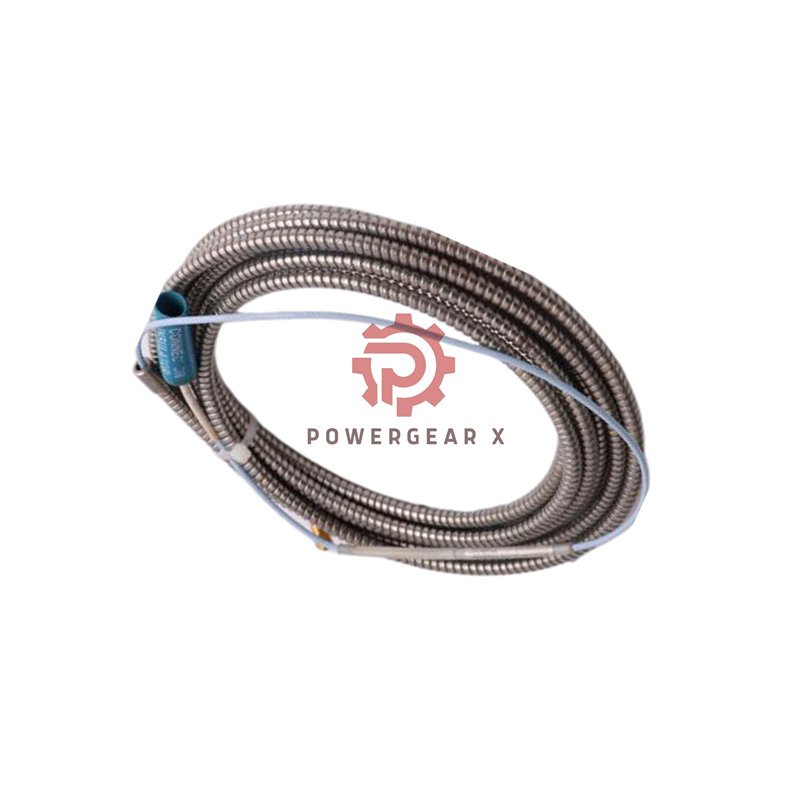

Bently Nevada 330192-00-08-10-00 8 mm ETR Probe Overview
Bently Nevada 330192-00-08-10-00 is part of the 3300 XL 8 mm series, designed for precision vibration monitoring in rotating equipment. Made in the U.S.A, it delivers consistent accuracy under extreme industrial conditions.
Main Highlights
- Brand: Bently Nevada
- Model: 330192-00-08-10-00
- Series: 3300 XL 8 mm ETR Probe
- Thread: 3/8-24 UNF
- Armor: Stainless steel armored cable for protection
- Origin: Made in U.S.A
Suffix Breakdown (Tree Format)
- 08 → Overall Case Length: 0.8 in
- 10 → Total Cable Length: 1.0 m (3.3 ft)
- 00 → No Agency Approval
Technical Specifications
- Probe Type: 8 mm ETR Probe with Armor
- Tip Material: Polyphenylene sulfide (PPS)
- Case Material: AISI 303 / 304 Stainless Steel
- Thread Engagement: 0.563 in (Max)
- Nominal Resistance: 7.59 ± 0.50 Ω
- Temperature Range: -52°C to +177°C (standard)
- Extended Range: Tip +218°C, Cable +260°C
- Humidity Stability: <3% ASF change at 93% RH, 56 days
- Pressure Seal: Viton® O-ring, not pressure-tested
- Storage Temperature: -52°C to +177°C
- Mounting Torque: 1.8–2.2 N·m (recommended)
- Frequency Response: DC to 10 kHz typical
- Output Sensitivity: 7.87 V/mm (200 mV/mil nominal)
- Protection: Sealed stainless armor for harsh environments
Product Benefits
- Delivers precise shaft position and vibration readings.
- Resists temperature shifts and humidity changes.
- Easy to install and align with compact 0.8 in case design.
- Stable signal output for extended operational reliability.
- Perfect for turbines, compressors, and motors.
Installation Notes
- Maintain unthreaded length at least 0.8 in less than case length.
- Use correct torque to avoid thread or seal damage.
- Keep cable routing free from sharp bends.
- Check probe resistance before connection.
- Use only compatible Bently Nevada monitors.
Package Contents
- 1x Bently Nevada 330192-00-08-10-00 probe assembly
- Mounting accessories and quick guide
- 12-month warranty included
- Ships via FedEx, UPS, or DHL
FAQ
- Q: What is the resistance tolerance?A: 7.59 ± 0.50 Ω between conductors.
- Q: Can I use this probe in high-humidity areas?A: Yes, it maintains stability under 93% RH conditions.
- Q: Is the probe compatible with 3300 XL systems?A: Yes, it works with all 3300 XL series monitors.
- Q: How should I clean the probe?A: Use a dry lint-free cloth; avoid solvents on O-ring areas.
- Q: What happens if it’s stored below -34°C?A: The seal may fail early; avoid subfreezing storage.
Download Datasheet
Contact & Support
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
- Provide model 330192-00-08-10-00 when contacting sales.
