Bently Nevada 330191-40-75-20-CN | 2m Country Certified Probe

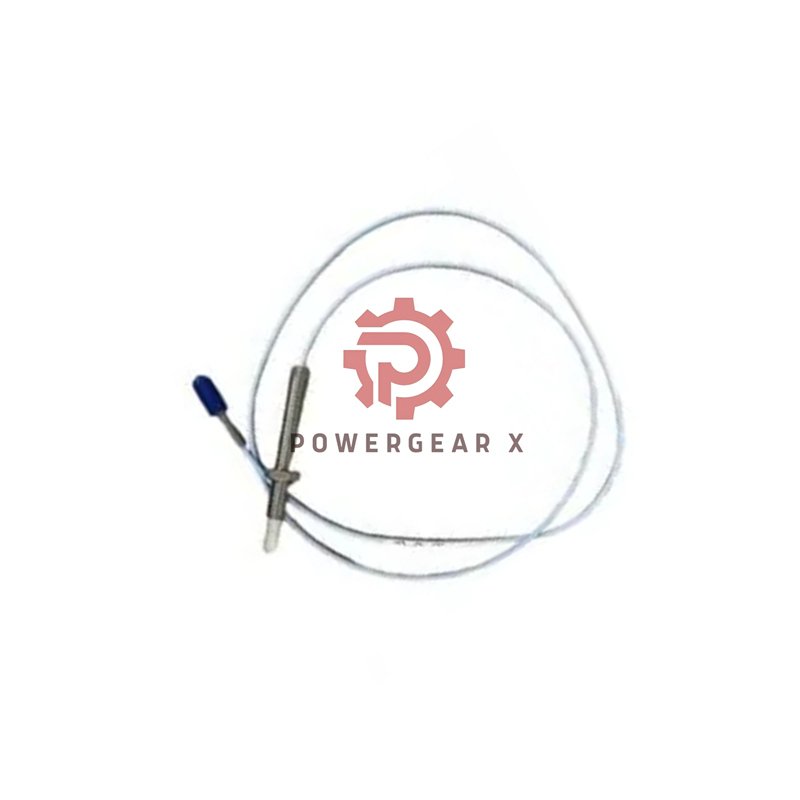

Bently Nevada 330191-40-75-20-CN International Proximity Probe

The Bently Nevada 330191-40-75-20-CN delivers global compliance with extended 2.0-meter reach. This country-specific certified probe ensures reliable performance in international markets.

Global Compliance Features

• Country Certification: CN option meets specific national standards
• Extended Reach: 2.0-meter cable for flexible positioning
• Enhanced Protection: 7.5-inch case with robust construction
• Global Ready: Pre-configured for specific country requirements
• Reliable Performance: Maintains accuracy over extended distances

Product Configuration Details

• Manufacturer: Bently Nevada
• Complete Model: 330191-40-75-20-CN
• Configuration Breakdown:
  • Base Model: 330191 (3300 XL 8mm ETR)
  • Unthreaded Section: 40 (4.0 inches)
  • Case Length: 75 (7.5 inches total)
  • Cable Length: 20 (2.0 meters/6.6 feet)
  • Certification: CN (Country Specific)

Comprehensive Technical Data

• Electrical Performance:
  • Operating Voltage: -17.5 VDC to -26 VDC
  • Maximum Current: 12 milliamps
  • Output Impedance: 50 ohms standard
  • Probe Resistance: 7.88 ± 0.50 ohms
  • Power Sensitivity: < 2 mV per volt change
• Mechanical Design:
  • Tip Material: PPS Plastic (Polyphenylene Sulfide)
  • Housing: 303/304 Stainless Steel
  • Cable Type: 75 ohm Triaxial FEP
  • Unit Weight: 323 grams per meter
  • Thread Specification: 3/8-24 UNF
• Performance Specifications:
  • Cable Pull Strength: 330 Newtons
  • Connector Torque Limit: 0.565 N•m
  • Thread Engagement: 0.563 inches maximum
  • Sealing System: Viton O-ring
  • Connector Material: Gold-plated brass

Operating Temperature Specifications

• Maximum Range T1: -55°C to +232°C
• High Temperature T2: -55°C to +177°C
• Medium Temperature T3: -55°C to +120°C
• Standard Range T4: -55°C to +80°C
• Limited Range T5: -55°C to +40°C

Shipping & Warranty Information

• Factory fresh original equipment
• Full 12-month manufacturer warranty
• Global express shipping available
• Carrier options: FedEx, UPS, DHL
• Quick dispatch from inventory

International Installation

• Follow local electrical codes
• Adhere to country-specific requirements
• Use proper mounting procedures
• Reference installation drawing 140979
• Verify regional compliance standards

International Compliance Questions

• What does CN certification include?

CN indicates country-specific approvals tailored to particular national standards and markets.

• Is this probe suitable for long-distance runs?

Yes, the 2.0-meter cable length allows installation in remote or hard-to-reach locations.

• What countries recognize the CN certification?

This varies by specific order – contact us for exact country approval details.

• How does cable length affect performance?

The 2.0-meter length maintains signal integrity with proper termination practices.

• Can I get custom certifications?

Additional certifications may be available – consult our technical team for options.

Technical Documentation Access

• Download product datasheet
• Access certification documents
• View installation guidelines
• Review compliance certificates
• Download Complete Technical Package Here

International Sales Support

Need information about the Bently Nevada 330191-40-75-20-CN for your country? Contact us!

• Email: sales@powergearx.com
• International WhatsApp: +86 18030005825
