Bently Nevada 330191-40-75-15-05 | ATEX Certified 1.5m Probe

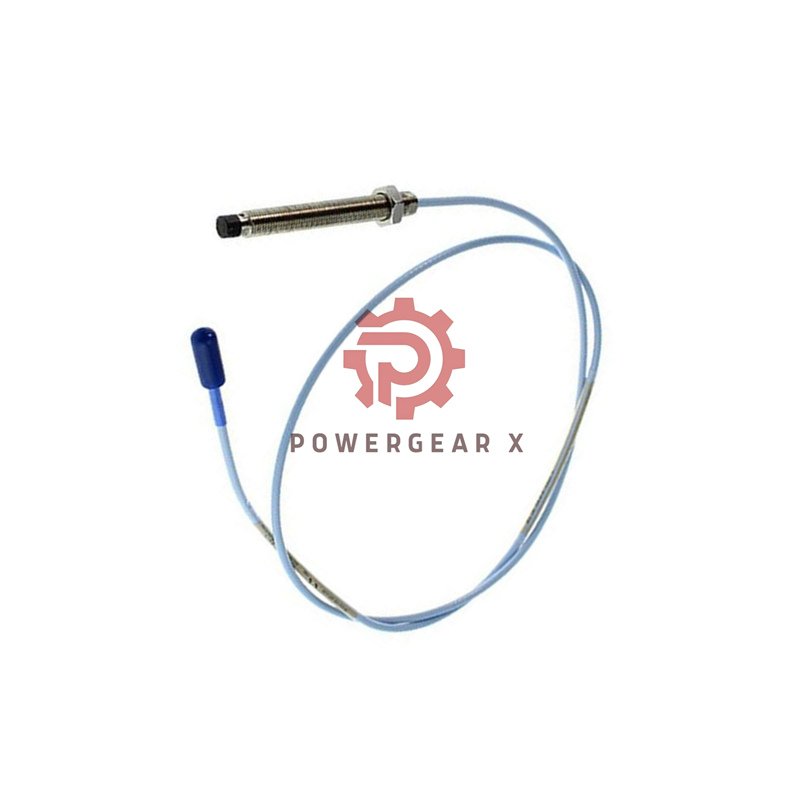

Bently Nevada 330191-40-75-15-05 Certified Proximity Probe

The Bently Nevada 330191-40-75-15-05 combines extended reach with hazardous area certifications. This 1.5-meter probe meets CSA, ATEX, and IECEx standards for maximum safety.

Premium Features

• Hazardous Area Certified: CSA, ATEX, IECEx approvals included
• Optimal Length: 1.5-meter cable for flexible installation
• Extended Protection: 7.5-inch case with 4.0-inch unthreaded section
• Leak Prevention: Optional FluidLoc stops oil migration
• Maximum Safety: Certified for explosive atmospheres

Product Identification

• Brand: Bently Nevada
• Full Part Number: 330191-40-75-15-05
• Part Number Analysis:
  • Series: 330191 (3300 XL 8mm ETR Probe)
  • Unthreaded: 40 (4.0 inches length)
  • Case: 75 (7.5 inches total)
  • Cable: 15 (1.5 meters/4.9 feet)
  • Certification: 05 (CSA, ATEX, IECEx)

Detailed Specifications

• Power Requirements:
  • Voltage Range: -17.5 VDC to -26 VDC
  • Current Consumption: 12 mA maximum
  • Barrier Voltage: -23 VDC to -26 VDC
  • Output Resistance: 50 ohms
  • Voltage Sensitivity: < 2 mV/V variation
• Physical Construction:
  • Tip Material: PPS (Polyphenylene Sulfide)
  • Case Material: 303/304 Stainless Steel
  • Cable Insulation: FEP or PFA options
  • Probe Resistance: 7.73 ± 0.50 ohms
  • Weight: 323 g/m (11.4 oz/ft)
• Performance Limits:
  • Maximum Cable Pull: 330 N (75 lbf)
  • Connector Torque: 0.565 N•m maximum
  • Thread Engagement: 0.563 inch limit
  • Connector Material: Gold-plated brass
  • Sealing: Viton O-ring standard

Certified Temperature Ranges

• T1 Certified: -55°C to +232°C operation
• T2 Certified: -55°C to +177°C operation
• T3 Certified: -55°C to +120°C operation
• T4 Certified: -55°C to +80°C operation
• T5 Certified: -55°C to +40°C operation

Ordering & Shipping

• Factory new with original seals
• 12-month comprehensive warranty
• Express shipping available worldwide
• Carriers: FedEx, UPS, DHL priority
• Same-day dispatch for stock items

Certified Installation

• Follow hazardous area guidelines
• Use proper barrier installations
• Maintain certification requirements
• Reference drawing 140979
• Verify system compatibility

Certification Questions

• What certifications does this model have?

This probe carries CSA, ATEX, and IECEx approvals for hazardous locations.

• Can I use this in Division 1 areas?

Yes, with proper installation according to certification requirements and drawings.

• What is the advantage of the 1.5-meter length?

It provides optimal reach without needing extension cables in most applications.

• How does the FluidLoc option work?

It creates a barrier preventing fluids from traveling through the cable interior.

• What maintenance ensures certification compliance?

Regular inspection of cables, connectors, and seals maintains certification integrity.

Technical Documentation

• Download certification documents
• Access installation manuals
• View compliance certificates
• Review safety guidelines
• Download Full Technical Data Package
