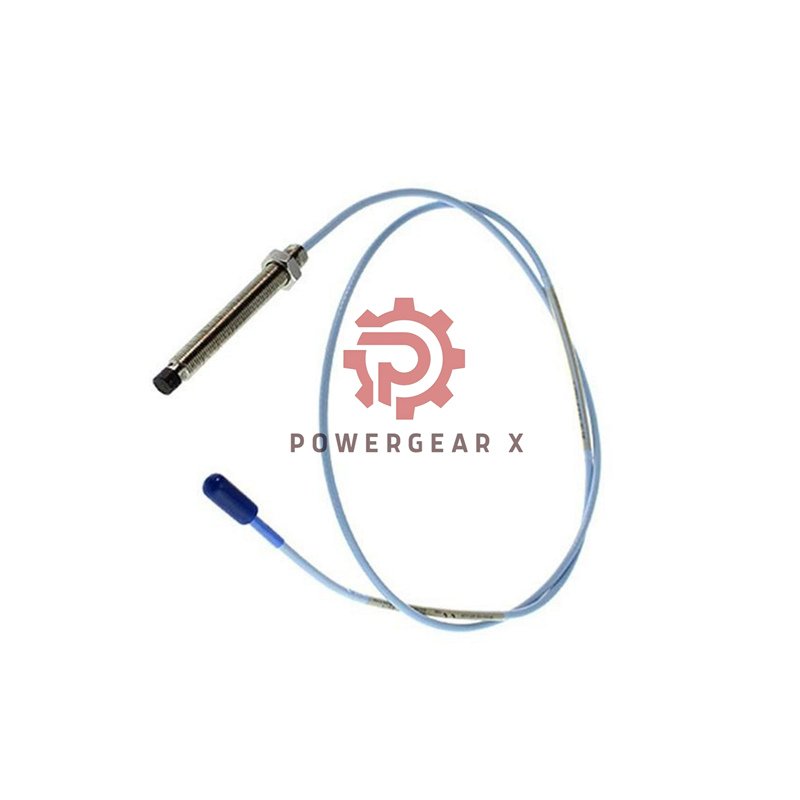

Bently Nevada 330191-40-75-15-00 Extended Reach Proximity Probe
The Bently Nevada 330191-40-75-15-00 combines extended case length with intermediate cable reach. This 8mm probe features a 7.5-inch case and 1.5-meter cable for versatile installations. The Bently Nevada design ensures reliable performance without agency certifications.
Design Advantages
- 7.5-inch extended case for deep mounting applications
- 4.0-inch unthreaded section for positioning flexibility
- 1.5-meter cable provides intermediate reach capability
- No agency certifications required for standard applications
- Enhanced physical protection with 8mm rugged design
- Simplified installation without regulatory compliance concerns
Technical Parameters
- Manufacturer: Bently Nevada
- Product Model: 330191-40-75-15-00
- Electrical Requirements: -17.5 Vdc to -26 Vdc
- Power Consumption: 12 mA maximum current
- Output Characteristics: 50 Ω output resistance
- DC Resistance Value: 7.73 ± 0.50 Ω at 1.5m
- Operating Temperature: -55°C to +232°C range
- Construction Material: AISI 303/304 stainless steel
- Probe Tip Material: PPS plastic molded
- Cable Specification: 75Ω triaxial FEP insulated
- Weight Measurement: 323 grams per meter
- Thread Configuration: 3/8-24 UNF thread
- Voltage Sensitivity: Under 2 mV per volt change
- Maximum Torque: 0.565 N•m connector limit
Part Number Configuration
- 330191 – Base 3300 XL 8mm ETR Probe
- 40 – 4.0 Inch Unthreaded Section
- 75 – 7.5 Inch Total Case Length
- 15 – 1.5 Meter Cable Length
- 00 – No Agency Approval Required
Installation Requirements
- Use extended case for deep mounting applications
- Maintain voltage between -23 Vdc to -26 Vdc with barriers
- Apply maximum 0.565 N•m connector torque
- Ensure proper thread engagement for secure fit
- Follow installation drawing 140979 procedures
- Use compatible Bently Nevada system components
Shipping & Warranty Details
- Factory original condition in sealed packaging
- 12-month comprehensive manufacturer warranty
- Global express shipping via FedEx, UPS, DHL
- Immediate availability from stock inventory
- Quality guaranteed from Bently Nevada
Technical Documentation Download
- Complete product datasheet with specifications
- Detailed installation and operation manual
- Performance characteristics and application data
Download Complete Technical Documentation Package
Technical Application Questions
- What installation scenarios benefit from the 1.5-meter cable length?
The 1.5-meter cable suits applications requiring moderate reach between probe and monitoring equipment without extension cables.
- How does the extended unthreaded section aid installation?
The 4.0-inch unthreaded area allows precise positioning before thread engagement in deep mounting holes.
- What are the advantages of no agency certification?
Simplified procurement and lower cost for applications not requiring hazardous area certifications.
- Can this probe withstand industrial vibration environments?
Yes, the robust 8mm construction and secure mounting handle typical industrial vibration conditions effectively.
- What maintenance ensures optimal long-term performance?
Regular inspection of cable connections and probe tip condition maintains reliable operation over time.
