Product details

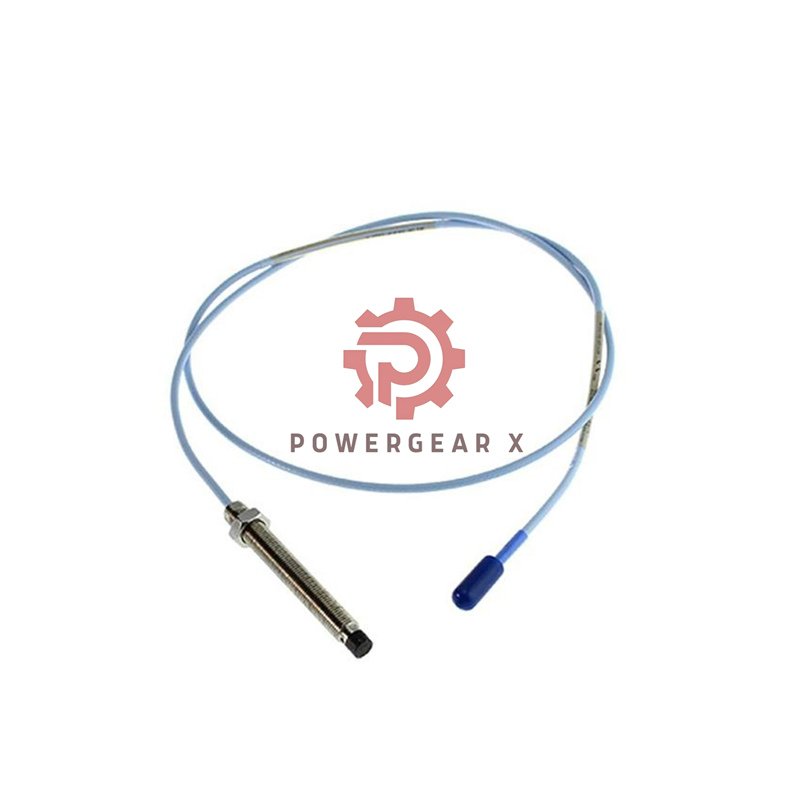

Bently Nevada 330191-40-75-05-05 Compact Proximity Probe
Meet the versatile 330191-40-75-05-05 from Bently Nevada. This 0.5-meter 8mm ETR probe offers certified performance in compact spaces. It delivers reliable vibration monitoring with multiple safety approvals.
Key Product Specifications
- Brand: Bently Nevada
- Model: 330191-40-75-05-05
- Type: 8mm ETR Proximity Sensor
- Cable Length: 0.5 Meter (1.6 Feet)
- Unthreaded Length: 4.0 Inches
- Case Length: 7.5 Inches Total
- Power Supply: -17.5 Vdc to -26 Vdc
- Output Impedance: 50 Ω
- DC Resistance: 7.45 ± 0.50 Ω
- Approvals: CSA, ATEX, IECEx Certified
- Temperature: -55°C to +232°C
- Thread: 3/8-24 UNF
Configuration Details
- Part Number Analysis:
- 330191 – 3300 XL 8mm Base Model
- 40 – 4.0 Inch Unthreaded Section
- 75 – 7.5 Inch Total Case Length
- 05 – 0.5 Meter Cable Length
- 05 – CSA, ATEX, IECEx Approvals
- Design: Without Armor Protection
- Construction: Stainless Steel Body
- Sealing: Viton O-Ring Standard
- Warranty: 12 Months Full Coverage
Certified Safety Features
- CSA, ATEX, IECEx Safety Approvals Included
- Compact 0.5-Meter Cable for Tight Spaces
- Extended 7.5-Inch Case for Deep Mounting
- 4.0-Inch Unthreaded Section for Flexible Installation
- TipLoc Patented Bonding Technology
- CableLoc 330N Pull Strength Design
- Optional FluidLoc Leak Prevention Available
Performance Characteristics
- Voltage Range: -17.5 Vdc to -26 Vdc
- Current Consumption: 12 mA Maximum
- Supply Sensitivity: Under 2 mV/V Change
- Linear Range: Maintained Below -23.5 Vdc
- Connector Torque: 0.565 N•m Maximum
- Thread Engagement: 0.563 Inch Maximum
- Cable Type: 75Ω Triaxial FEP
- Weight: Approximately 161.5 grams
Shipping & Delivery
- Condition: Factory New & Original
- Packaging: Sealed Industrial Packaging
- Carriers: FedEx, UPS, DHL Express
- Delivery: Worldwide Service Available
- Tracking: All Shipments Include Tracking
- Handling: Professional Packing Standards
Technical Documentation
- Complete System Documentation:
- Installation Guidelines Available
- Certification Documents Provided
- Application Notes Accessible
Technical Questions Answered
- What are the benefits of the short cable design?
Ideal for confined spaces and compact machinery. Reduces cable clutter and installation complexity.
- Which industries require these safety approvals?
Oil and gas, chemical processing, and mining sectors. Any hazardous location requiring certified equipment.
- How does the unthreaded section help installation?
Provides flexibility in mounting depth adjustment. Allows precise positioning in various applications.
- Can this probe withstand high vibration environments?
Yes, the 8mm design and robust construction handle high vibration. Suitable for most industrial applications.
- What maintenance schedule is recommended?
Regular visual inspections every 6 months. Check connectors and cable condition during routine maintenance.
Ordering & Support
- Product: 330191-40-75-05-05
- Manufacturer: Bently Nevada
- Series: 3300 XL Monitoring System
- Stock: Available for Immediate Dispatch
- Email: sales@powergearx.com
- Phone: +86 18030005825
- Shipping: FedEx, UPS, DHL Express Options
