Bently Nevada 330191-00-40-90-CN | 9m 8mm Proximity Probe

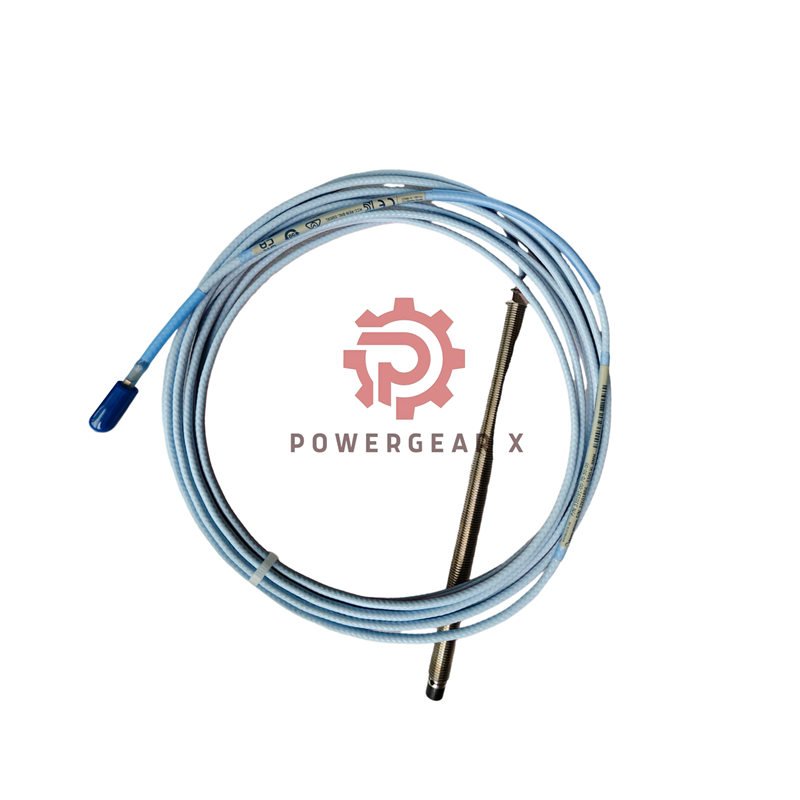

Bently Nevada 330191-00-40-90-CN Long-Reach Proximity Probe

The Bently Nevada 330191-00-40-90-CN offers extended 9.0-meter reach for challenging industrial applications. This robust 8mm ETR probe delivers reliable vibration monitoring in hard-to-access locations.

Exceptional Features

• Extended Reach: 9.0 meter cable for flexible installation
• Country Certification: CN option for specific regional requirements
• Superior Protection: TipLoc and CableLoc patented technologies
• Oil Resistance: Optional FluidLoc prevents fluid migration
• Heavy-Duty Build: 8mm design withstands physical stress

Complete Specifications

• Brand: Bently Nevada
• Full Model: 330191-00-40-90-CN
• Configuration Breakdown:
  • Base: 330191 (3300 XL 8mm ETR Probe)
  • Mounting: 3/8-24 UNF thread, no armor
  • Unthreaded Section: 00 (0.0 inch)
  • Case Size: 40 (4.0 inch length)
  • Cable Length: 90 (9.0 meters/29.5 feet)
  • Certification: CN (Country Specific)
• Electrical Data:
  • Voltage Range: -17.5 VDC to -26 VDC
  • Current Draw: 12 mA maximum
  • Output Impedance: 50 ohms
  • Probe Resistance: 9.87 ± 0.50 ohms
  • Supply Sensitivity: < 2 mV/V
• Mechanical Properties:
  • Tip Material: PPS (Polyphenylene Sulfide)
  • Case: 303/304 Stainless Steel
  • Cable Type: 75 ohm triaxial FEP
  • Weight: 323 grams per meter
  • Sealing: Viton O-ring

Performance Ratings

• Temperature Range T1: -55°C to +232°C
• Temperature Range T2: -55°C to +177°C
• Temperature Range T3: -55°C to +120°C
• Temperature Range T4: -55°C to +80°C
• Temperature Range T5: -55°C to +40°C
• Cable Pull Strength: 330 N (75 lbf)
• Connector Torque: 0.565 N•m maximum

Ordering & Delivery

• Factory new with original packaging
• 12-month manufacturer warranty included
• Fast worldwide shipping available
• Carriers: FedEx, UPS, DHL express
• Stock items ship within 24 hours

Expert Installation Tips

• Maximum thread engagement: 0.563 inch
• Use proper torque tools for connectors
• Follow installation drawing 140979
• Maintain voltage above -23.5 VDC
• Use compatible Bently Nevada systems

Common Technical Questions

• What does the CN suffix indicate?

CN represents country-specific certifications for particular regional markets.

• How does the 9-meter length affect performance?

The longer cable maintains signal integrity with proper termination and shielding.

• What environmental protection does it offer?

It features Viton O-ring sealing and optional FluidLoc for fluid resistance.

• Can this probe handle high vibration areas?

Yes, the 8mm design and robust construction withstand high vibration environments.

• What maintenance does this probe require?

Regular inspection of cables and connectors ensures long-term reliability.
