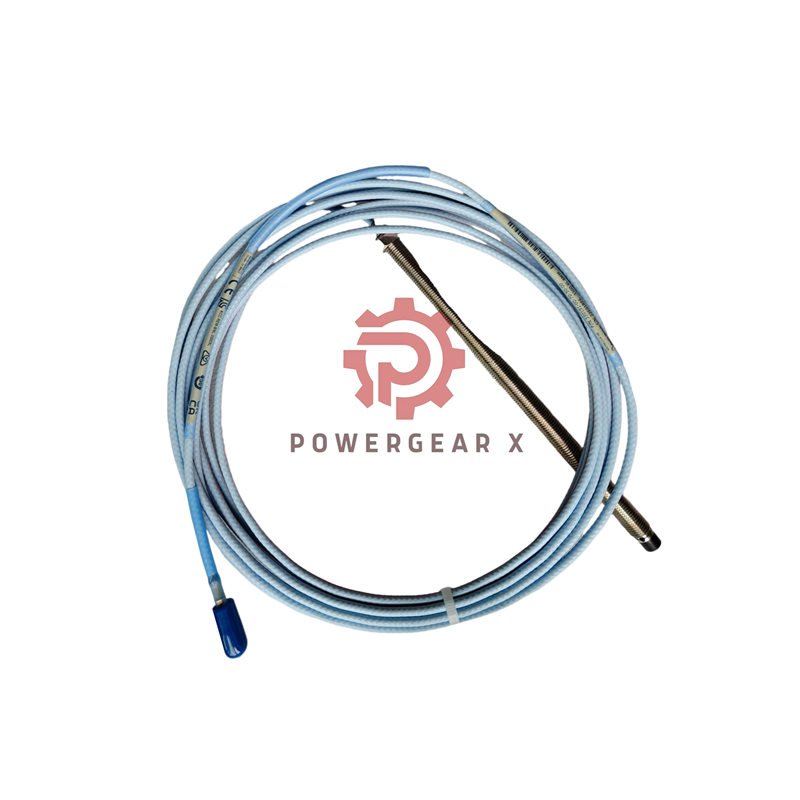

Bently Nevada 330191-00-40-50-00 Industrial Proximity Probe

Experience superior machinery monitoring with the 330191-00-40-50-00 from Bently Nevada. This 5-meter 8mm ETR probe delivers exceptional reliability in demanding industrial applications. Its extended cable length provides flexible installation options for complex systems.

Technical Specifications Overview

• Brand: Bently Nevada
• Model Number: 330191-00-40-50-00
• Product Type: 8mm ETR Proximity Probe
• Cable Length: 5.0 Meters (16.4 Feet)
• Power Requirements: -17.5 Vdc to -26 Vdc
• Current Consumption: 12 mA Maximum
• Output Resistance: 50 Ω Standard
• Probe DC Resistance: 8.73 ± 0.50 Ω
• Case Material: AISI 303/304 Stainless Steel
• Temperature Range: -55°C to +232°C
• Thread Specification: 3/8-24 UNF
• Weight: 323 g/m (Total ~1.6 kg)

Part Number Structure Analysis

• Complete Configuration Breakdown:
  • 330191 – 3300 XL 8mm ETR Probe Base Unit
  • 00 – 0.0 Inch Unthreaded Length
  • 40 – 4.0 Inch Overall Case Length
  • 50 – 5.0 Meter Total Cable Length
  • 00 – No Agency Approvals Required
• Compatibility: Works Only with 5-Meter Proximitor Sensors
• Design: Without Armor Protection
• Sealing: Viton O-Ring Pressure Seal
• Warranty: 12 Months Comprehensive Coverage

Advanced Engineering Features

• Extended 5-Meter Cable for Maximum Installation Flexibility
• Patented TipLoc Molding Ensures Superior Tip-to-Body Bond
• CableLoc Technology Provides 330N (75 lbf) Pull Strength
• Optional FluidLoc Cable Prevents Internal Fluid Migration
• Enhanced 8mm Diameter for Improved Physical Durability
• Gold-Plated Connectors Guarantee Optimal Signal Quality
• Stainless Steel Construction Resists Corrosion and Impact

Electrical Performance Data

• Operating Voltage Range: -17.5 Vdc to -26 Vdc
• Barrier Operation: -23 Vdc to -26 Vdc Recommended
• Supply Sensitivity: Less Than 2 mV per Volt Change
• Linear Range: Maintained Below -23.5 Vdc Operation
• Maximum Connector Torque: 0.565 N•m (5 in•lbf)
• Thread Engagement: 0.563 Inch Maximum
• Cable Type: 75Ω Triaxial FEP Insulation

Shipping & Packaging Information

• Condition: Factory New in Original Packaging
• Shipping Carriers: FedEx, UPS, DHL Express
• Delivery: Global Express Shipping Available
• Packaging: Industrial-Grade Protective Materials
• Tracking: Real-Time Shipment Monitoring
• Handling: Professional Logistics Management

Download Technical Resources

• Complete Product Documentation:
  • Download 3300 XL 8mm System Datasheet
• Installation Guides and Manuals
• Application Notes and Technical Bulletins
• System Integration Documentation

Technical Support Questions

• What applications suit this 5-meter probe best?

Ideal for large machinery requiring extended reach. Perfect for complex industrial vibration monitoring systems.

• Does the probe need special calibration?

Calibrated specifically for 5-meter Proximitor systems. Requires compatible monitoring equipment for optimal performance.

• What environmental conditions affect performance?

Operates reliably from -55°C to +232°C. Extreme conditions may require optional temperature-rated cables.

• How do I verify proper installation?

Check thread engagement and connector torque. Verify electrical connections and system calibration.

• What makes the 8mm design more durable?

Thicker probe tip encapsulation provides superior impact resistance. Larger diameter offers better physical protection.
