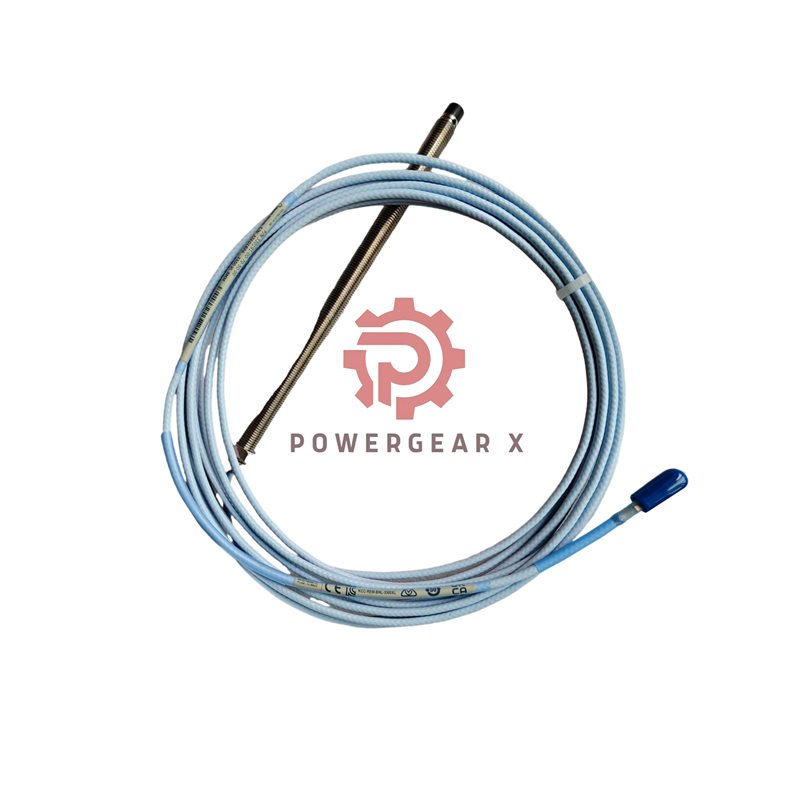

Bently Nevada 330191-00-40-20-00 Proximity Probe

Discover the advanced 330191-00-40-20-00 proximity probe from Bently Nevada. This 2.0-meter 8mm ETR sensor delivers superior performance for industrial vibration monitoring applications.

Product Highlights

• Enhanced Durability: 8mm design with thicker tip encapsulation
• Secure Connection: Patented CableLoc with 330N pull strength
• Fluid Protection: Optional FluidLoc prevents oil leakage
• Robust Construction: PPS tip with stainless steel case
• Easy Installation: 3/8-24 UNF thread mounting

Technical Specifications

• Manufacturer: Bently Nevada
• Model: 330191-00-40-20-00
• Series: 3300 XL 8mm ETR Probe
• Part Number Details:
  • Base: 330191 (3300 XL 8mm ETR)
  • Thread: 3/8-24 UNF, no armor
  • Unthreaded: 00 (0.0 inch)
  • Case Length: 40 (4.0 inch)
  • Total Length: 20 (2.0 meters)
  • Approvals: 00 (Standard)
• Electrical Specifications:
  • Power: -17.5 to -26 VDC
  • Current: 12 mA maximum
  • Output Resistance: 50 ohms
  • Probe Resistance: 7.88 ± 0.50 ohms
• Physical Properties:
  • Tip Material: PPS plastic
  • Case Material: 303/304 stainless steel
  • Cable: 75 ohm triaxial FEP
  • Weight: 323 g/m (11.4 oz/ft)

Temperature Ratings

• T1: -55°C to +232°C
• T2: -55°C to +177°C
• T3: -55°C to +120°C
• T4: -55°C to +80°C
• T5: -55°C to +40°C

Installation & Setup

• Max connector torque: 0.565 N•m
• Thread engagement: 0.563 inch maximum
• Use with Bently Nevada extension cables
• Maintain voltage above -23.5 VDC
• Follow installation drawing 140979

Shipping & Support

• New original unit in factory package
• 12 months manufacturer warranty
• Worldwide shipping: FedEx, UPS, DHL
• Quick dispatch from stock

Technical Questions Answered

• What is the probe tip made from?

The tip uses polyphenylene sulfide (PPS) for excellent chemical resistance.

• How long is the cable on this model?

This specific model has a 2.0 meter (6.6 feet) total cable length.

• What thread size does the probe use?

It features standard 3/8-24 UNF threads for easy installation.

• Can I use this in high temperature areas?

Yes, it handles temperatures from -55°C to +232°C based on rating.

• What is the cable pull strength?

The CableLoc design provides 330 N (75 lbf) pull-out resistance.

Download Product Documentation

• Get the complete technical datasheet
• Download installation guidelines
• Access product specifications
• Download Data Sheet Here
