Bently Nevada 330191-00-40-15-00 | 8mm ETR Probe

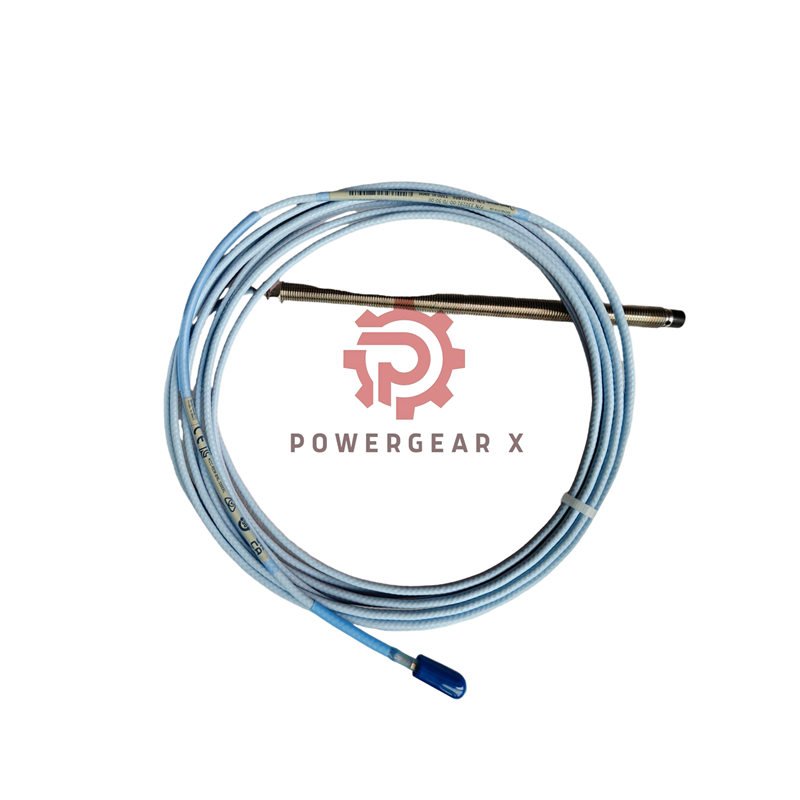

Bently Nevada 330191-00-40-15-00 Proximity Probe

This industrial-grade 330191-00-40-15-00 proximity probe delivers reliable machinery monitoring. Its 8mm ETR design provides superior durability for harsh environments. The probe features advanced sealing technology and robust construction. Engineers choose this sensor for critical vibration measurement applications.

Key Technical Specifications

• Brand: Bently Nevada
• Model: 330191-00-40-15-00
• Probe Type: 8mm ETR Vibration Sensor
• Power Range: -17.5 Vdc to -26 Vdc
• Output Impedance: 50 Ω
• DC Resistance: 7.73 ± 0.50 Ω
• Cable Length: 1.5 Meters (4.9 Feet)
• Temperature Range: -55°C to +232°C
• Case Thread: 3/8-24 UNF
• Case Material: AISI 303/304 Stainless Steel
• Weight: 323 g/m (11.4 oz)

Product Configuration Details

• Complete Part Number Analysis:
  • 330191: 3300 XL 8mm ETR Probe Base
  • 00: Zero Unthreaded Length
  • 40: 4.0 Inch Case Length
  • 15: 1.5 Meter Cable Length
  • 00: No Agency Approvals
• Probe Tip: Molded PPS Plastic
• Cable Type: 75Ω Triaxial FEP
• Sealing: Viton O-Ring Design
• Warranty: 12 Months Factory

Advanced Design Features

• Thicker 8mm Tip for Enhanced Durability
• TipLoc Molding for Secure Bonding
• CableLoc Technology with 330N Pull Strength
• Optional FluidLoc Cable Available
• Gold-Plated Connectors for Better Contact
• Stainless Steel Case for Corrosion Resistance

Performance Characteristics

• Supply Sensitivity: Under 2 mV/V
• Maximum Current: 12 mA
• Connector Torque: 0.565 N•m Maximum
• Thread Engagement: 0.563 Inch Maximum
• Tensile Strength: 330 N at Probe Case
• Temperature Class: T1 to T5 Available

Installation & Setup

• Follow Drawing 140979 for Installation
• Use -23 Vdc to -26 Vdc with Barriers
• Maintain Proper Thread Engagement
• Avoid Voltages Above -23.5 Vdc
• Use Only Bently Nevada Accessories
• Ensure Clean Connection Surfaces

Shipping & Delivery Options

• Condition: Factory New in Original Packing
• Shipping Carriers: FedEx, UPS, DHL
• Delivery Time: Express Options Available
• Packaging: Secure Industrial Standard
• Tracking: Provided for All Shipments

Download Product Documentation

• Complete Technical Datasheet:
  • Download 3300 XL 8mm Probe Datasheet
• Installation Guides Available
• Technical Specifications Sheets
• Application Notes Library

Professional FAQs

• What is the maximum cable length for this probe?

The standard version supports up to 9 meter cables. Extended versions can use special ordered longer cables.

• How does temperature affect probe performance?

The probe maintains accuracy from -55°C to +232°C. Higher temperatures may require special cable options.

• Can this probe measure different materials?

Yes, it detects all conductive materials. Calibration may vary based on target material properties.

• What maintenance does the probe require?

Regular inspection of cables and connectors. Check for physical damage during routine maintenance.

• Is special training needed for installation?

Basic mechanical skills are sufficient. Follow the provided installation drawing for proper setup.

Ordering & Contact Information

• Full Model: 330191-00-40-15-00
• Manufacturer: Bently Nevada
• Series: 3300 XL Monitoring System
• Email: sales@powergearx.com
• Phone: +86 18030005825
• Availability: In Stock for Immediate Shipping
