Product Overview

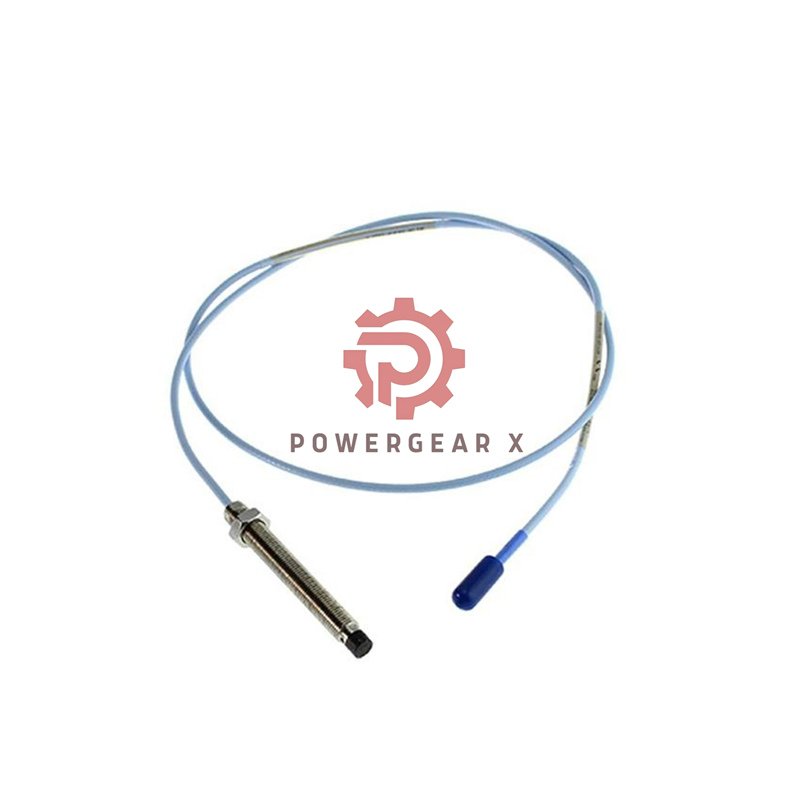

The Bently Nevada 330191-00-40-10-00 proximity probe delivers industrial-grade reliability for machinery monitoring. This 8mm ETR sensor features robust construction and patented designs for demanding environments. Engineers trust Bently Nevada for critical measurement applications requiring precision and durability.
Key Features & Benefits
- Patented TipLoc molding ensures superior bond between probe tip and body
- CableLoc design provides 330N pull strength for secure connections
- 8mm diameter offers thicker encapsulation and enhanced physical durability
- Optional FluidLoc cable prevents fluid leakage through cable interior
- Gold-plated connectors maintain signal integrity in harsh conditions
- Viton O-ring seals differential pressure between probe tip and case
Technical Specifications
- Brand: Bently Nevada | Model: 330191-00-40-10-00
- Power Supply: -17.5 Vdc to -26 Vdc (12 mA max)
- Voltage Sensitivity: < 2 mV per volt input change
- Output Resistance: 50 Ω | Probe DC Resistance: 7.59±0.50 Ω
- Temperature Range: -55°C to +232°C (T1 classification)
- Case Material: AISI 303/304 stainless steel
- Probe Tip: Polyphenylene sulfide (PPS) construction
- Cable Types: Standard FEP or Extended Temperature PFA insulation
- Thread Specification: 3/8-24 UNF with 0.563″ engagement
- Maximum Torque: 0.565 N•m (5 in•lbf)
Model Number Breakdown
- 330191 – 3300 XL 8mm ETR Probe Base Model
- 00 – 0.0 inch Unthreaded Length
- 40 – 4.0 inch Overall Case Length
- 10 – 1.0 meter Total Length
- 00 – No Agency Approval Required
Installation Guidelines
- Maintain -23 Vdc to -26 Vdc when using with barriers
- Ensure maximum connector torque of 0.565 N•m
- Verify thread engagement does not exceed 0.563 inch
- Use compatible Bently Nevada extension cables
- One-meter systems operate without extension cables
- Avoid operating at voltages more positive than -23.5 Vdc
Packaging & Shipping
- New and original unit in factory packaging
- Includes probe and standard documentation
- Available shipping: FedEx, UPS, DHL express
- Direct fulfillment from authorized stock
Frequently Asked Questions
- What applications suit this probe best?
The 330191-00-40-10-00 excels in industrial machinery monitoring where robust construction and precise measurement matter.
- Does this probe work with existing Bently Nevada systems?
Yes, it integrates seamlessly with Bently Nevada proximity systems and extension cables.
- What makes the 8mm design more durable?
Thicker probe tip encapsulation and larger body diameter provide superior physical protection.
- Can I use this in high-temperature environments?
Yes, with T1 classification supporting operations up to 232°C ambient temperature.
