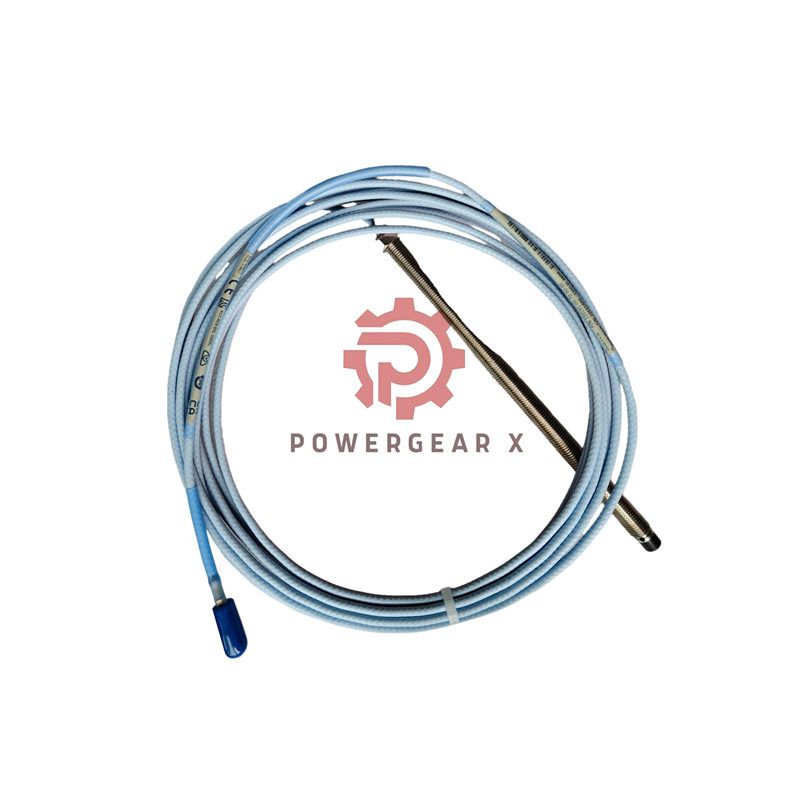

Bently Nevada 330191-00-40-05-CN Proximity Probe
The Bently Nevada 330191-00-40-05-CN delivers robust machinery monitoring with enhanced durability. This 8mm ETR probe features country-specific approvals and reliable performance in harsh conditions. Engineers worldwide trust Bently Nevada for precision measurement solutions.
Core Advantages
- Patented TipLoc molding creates superior probe tip bonding
- CableLoc design withstands 330N pulling force for secure installation
- 8mm diameter provides extra protection against physical damage
- Optional FluidLoc cable prevents internal fluid leakage
- Country-specific certification meets local requirements
- Viton O-ring ensures effective pressure sealing
Technical Specifications
- Manufacturer: Bently Nevada
- Model: 330191-00-40-05-CN
- Electrical Input: -17.5 Vdc to -26 Vdc operation
- Current Consumption: 12 mA maximum
- Output Impedance: 50 Ω standard
- Probe Resistance: 7.45 ± 0.50 Ω at 0.5m length
- Temperature Performance: -55°C to +232°C range
- Case Material: AISI 303/304 stainless steel
- Probe Tip: Molded PPS plastic construction
- Cable Options: FEP or PFA insulation available
- Connector Torque: 0.565 N•m maximum
- Thread Type: 3/8-24 UNF configuration
Configuration Details
- 330191 – 3300 XL 8mm ETR Probe Base
- 00 – Zero Unthreaded Length
- 40 – 4.0 Inch Case Length
- 05 – 0.5 Meter Total Length
- CN – Country Specific Approval
Operation & Installation
- Maintain voltage between -23 Vdc to -26 Vdc with barriers
- Ensure proper thread engagement of 0.563 inch maximum
- Use compatible Bently Nevada extension systems
- Apply correct connector torque for optimal performance
- Verify installation per drawing 140979 for safety
- Check cable connections before operation
Shipping & Support
- Factory new condition with original packaging
- 12-month manufacturer warranty included
- Global shipping via FedEx, UPS, DHL
- Complete documentation provided
Technical Documentation
- Download complete product datasheet
- Access installation guidelines
- Review technical specifications
Download Product Datasheet Here
Common Questions
- What does the CN suffix indicate in the model number?
The CN suffix shows country-specific certification compliance for particular markets.
- How does the 8mm design improve probe lifespan?
Thicker probe tip encapsulation and larger body diameter provide better impact resistance.
- What maintenance does this probe require?
Regular inspection of cables and connectors ensures long-term reliability.
- Can I use this probe with existing monitoring systems?
Yes, it integrates with Bently Nevada proximity monitoring systems seamlessly.
- What environmental conditions suit this probe?
It operates effectively in temperatures from -55°C to +232°C and harsh industrial environments.
