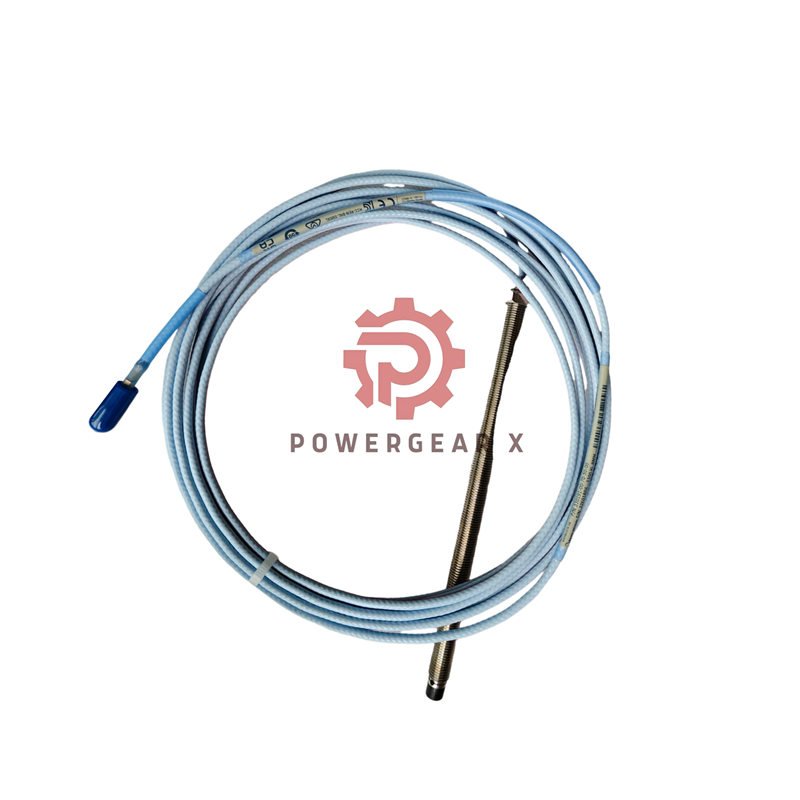

Introducing the Bently Nevada 330191-00-40-05-05 Proximity Probe
The Bently Nevada 330191-00-40-05-05 represents the pinnacle of industrial proximity sensing technology. This 8mm ETR probe from the renowned 3300 XL series delivers exceptional durability and precision for demanding vibration monitoring applications.
Key Features and Advantages
- Patented TipLoc molding technology ensures superior bond strength
- CableLoc design provides 330 N (75 lbf) pull-out resistance
- Optional FluidLoc cable prevents internal fluid migration
- 8mm diameter offers enhanced physical robustness
- Viton O-ring provides reliable pressure sealing
- Works seamlessly without extension cables in 1-meter systems
Complete Technical Specifications
- Brand: Bently Nevada
- Model: 330191-00-40-05-05
- Part Number Structure:
- Base Model: 3300 XL 8mm ETR Probe
- Thread: 3/8-24 UNF without armor
- Unthreaded Length: 00 (0.0 inch)
- Case Length: 40 (4.0 inch)
- Total Length: 05 (0.5 meter/1.6 feet)
- Agency Approvals: 05 (CSA, ATEX, IECEx)
- Power Requirements: -17.5 Vdc to -26 Vdc, 12 mA max
- Supply Sensitivity: <2 mV per volt input change
- Output Resistance: 50 Ω
- Probe DC Resistance: 7.45 ± 0.50 Ω (0.5m length)
- Tip Material: Polyphenylene sulfide (PPS)
- Case Material: AISI 303/304 stainless steel
- Standard Cable: 75Ω triaxial FEP insulation
- Extended Temp Cable: 75Ω triaxial PFA insulation
Temperature Classification Ranges
- T1 Rating: -55°C to +232°C
- T2 Rating: -55°C to +177°C
- T3 Rating: -55°C to +120°C
- T4 Rating: -55°C to +80°C
- T5 Rating: -55°C to +40°C
Installation Guidelines
- Maximum connector torque: 0.565 N•m (5 in•lbf)
- Maximum thread engagement: 0.563 inch for 3/8-24 UNF
- Use only with genuine Bently Nevada extension cables
- Maintain voltage above -23.5 Vdc for optimal linear range
- Ensure proper connection to compatible prox systems
Packaging and Shipping Information
- Factory new and original in sealed packaging
- Available for immediate shipment worldwide
- Carriers: FedEx, UPS, DHL express options
- Standard packaging includes probe unit only
Frequently Asked Questions
- What makes the 8mm probe more durable?
The thicker encapsulation and larger case diameter provide superior physical protection.
- Can this probe handle harsh environments?
Yes, with multiple agency approvals including ATEX and IECEx for hazardous areas.
- What is the maximum cable pull strength?
The CableLoc design withstands 330 N (75 lbf) of pulling force.
- Does this require an extension cable?
No, 1-meter systems operate without extension cables.
- What materials contact the measured surface?
The probe tip uses chemical-resistant PPS plastic material.
