Product Overview

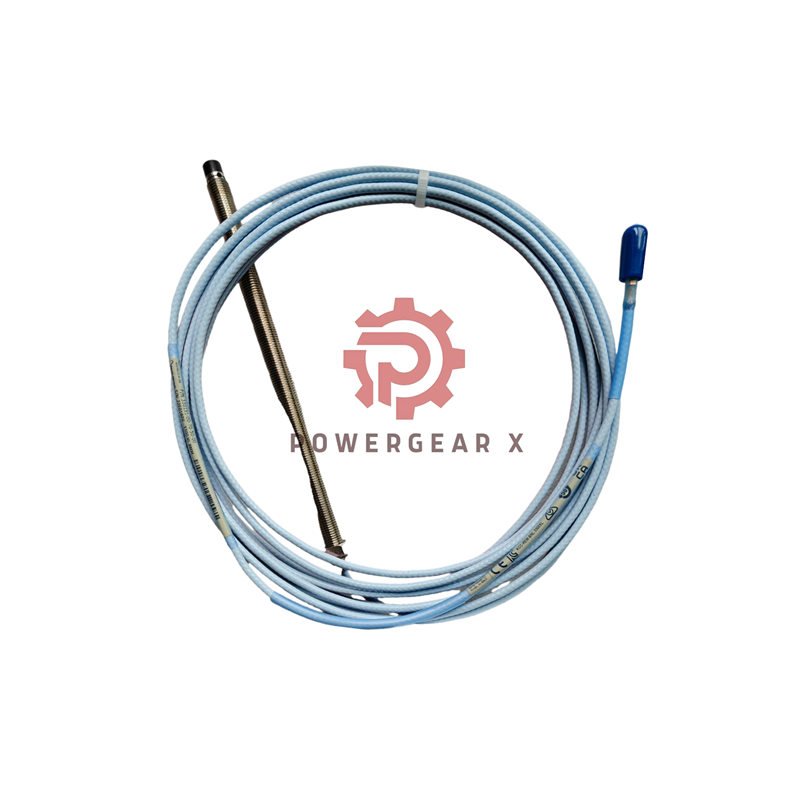

The Bently Nevada 330191-00-08-10-CN proximity probe delivers exceptional reliability for industrial monitoring applications. This 8mm ETR sensor features robust construction with advanced TipLoc technology and stainless steel housing. The 330191-00-08-10-CN ensures precise vibration measurement and comes factory fresh in original packaging.
Technical Specifications
- Brand: Bently Nevada
- Model: 330191-00-08-10-CN
- Probe Type: 8mm ETR (Extended Temperature Range)
- Thread: 3/8-24 UNF without armor
- Cable Length: 1.0 meter (3.3 feet)
- Power Supply: -17.5 Vdc to -26 Vdc, 12 mA max
- Output Resistance: 50 Ω
- Probe Resistance: 7.59 ± 0.50 Ω (1.0 meter)
- Temperature Range: -55°C to +232°C (T1 classification)
- Tensile Strength: 330 N (75 lbf) case to cable
- Connector Torque: 0.565 N•m maximum
Model Suffix Breakdown
- 330191 – Base model for 3300 XL 8mm ETR probe
- -00 – Standard configuration option
- -08 – 8mm probe diameter specification
- -10 – 1.0 meter total cable length
- -CN – Country Specific Approval certification
Installation Guidelines
- Use 3/8-24 UNF thread with maximum 0.563 inches engagement
- Apply maximum 0.565 N•m torque on connector fittings
- Maintain power supply between -17.5 Vdc to -26 Vdc
- Connect with compatible Bently Nevada extension cables
- Ensure proper grounding and electrical isolation
Packaging & Shipping
- Factory new in original manufacturer packaging
- Includes proximity probe unit only
- Shipped via FedEx, UPS, or DHL express services
- Standard packaging ensures complete protection
Frequently Asked Questions
- What power supply does this probe require?
It operates on -17.5 Vdc to -26 Vdc with 12 mA maximum current. - Can I use this without extension cables?
Yes, 1.0 meter systems work directly without additional cables. - What materials are used in construction?
PPS plastic tip with AISI 303/304 stainless steel case. - How does FluidLoc option work?
It prevents liquid migration through cable interior in wet conditions. - What is the temperature operating range?
It handles -55°C to +232°C ambient temperature for T1 classification.
