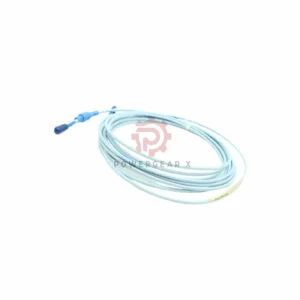

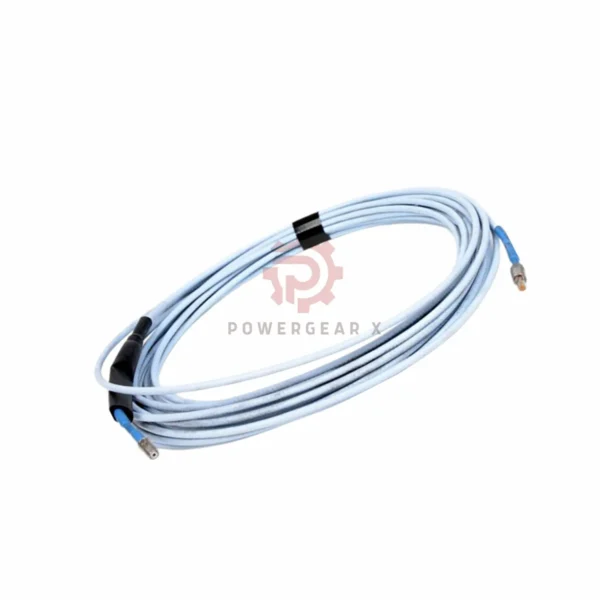

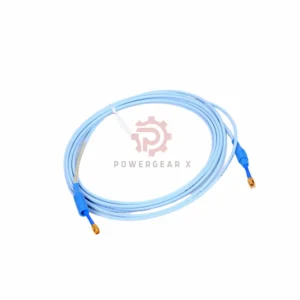

Bently Nevada 330130-075-00-05 Extension Cable

Product Overview

The Bently Nevada 330130-075-00-05 is a 7.5-meter extension cable designed for use with 3300 XL 8 mm Proximitor systems. It uses a standard cable construction and includes silicone tape for sealing. It is approved for CSA, ATEX, and IECEx applications.

Technical Specifications

• Model: 330130-075-00-05
• Length: 7.5 meters (24.6 feet)
• Cable Type: Standard
• Weight (Standard): 0.255 kg
• Weight (Armored): 0.772 kg
• Capacitance: 69.9 pF/m (typical)
• DC Resistance (RCORE): 1.65 ± 0.25 Ω
• Jacket Resistance (RJACKET): 0.49 ± 0.10 Ω

Electrical Details

• Voltage: -17.5 Vdc to -26 Vdc (nonincendive), -23 Vdc to -26 Vdc (with barriers)
• Current: Max 12 mA
• Sensitivity: Less than 2 mV change per volt
• Output Resistance: 50 Ω

Advanced Features

• TipLoc: Strong tip-to-body molding for durability
• CableLoc: 330 N (75 lbf) cable retention strength
• FluidLoc (optional): Prevents oil from leaking through the cable interior

Model Tree Breakdown

• 330130: Extension Cable Series
• 075: Cable length: 7.5 meters
• 00: Standard cable type
• 05: CSA, ATEX, IECEx certified

Application Scenarios

• Gas and steam turbines
• Compressors in oil and gas plants
• Generators and large motors
• Hazardous environments requiring certified components

Logistics and Warranty

• Warranty: 12 months
• Delivery: Ships via FedEx, UPS, DHL
• Packaging: Includes silicone tape; certificate optional
