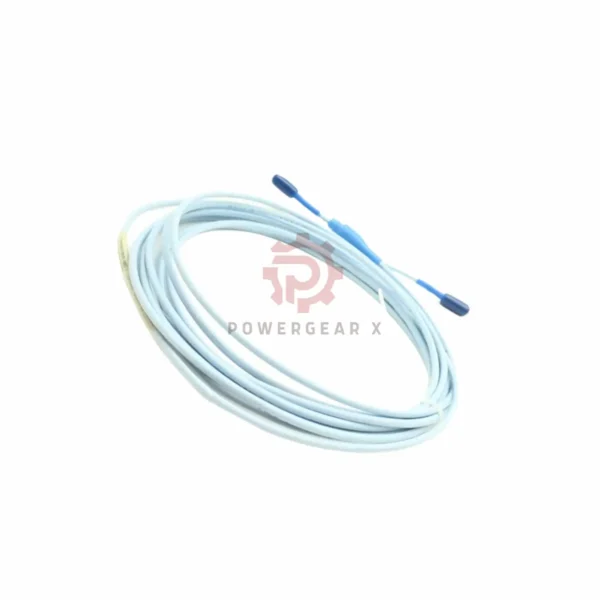

Bently Nevada 330130-070-13-CN Extension Cable
Product Summary
The Bently Nevada 330130-070-13-CN is a 7.0-meter armored FluidLoc extension cable with connector protector. It is built for reliable use in harsh industrial environments and supports 3300 XL 8 mm probes and Proximitor sensors.
Key Features
- Product Model: 330130-070-13-CN
- Cable Length: 7.0 meters (22.9 feet)
- Type: Armored with FluidLoc and connector protector
- Weight: 0.618 kg
- Approvals: CN = Country-specific
Electrical Specifications
- Power Requirement: -17.5 Vdc to -26 Vdc, max 12 mA
- With Barrier: -23 Vdc to -26 Vdc
- Supply Sensitivity: Less than 2 mV per volt
- Output Resistance: 50 ohms
- Capacitance: 69.9 pF/m (typical)
Resistance Values
- Center to Center (RCORE): 1.54 ± 0.23 Ω
- Shield to Shield (RJACKET): 0.46 ± 0.09 Ω
Installation and Connectors
- Connector Type: Gold-plated ClickLoc
- Included Tape: Silicone tape (not recommended near turbine oil)
- Mount Type: Easy fit with 3300 XL Proximitor sensors
Compatible Devices
- 3300-series 5 mm probes
- 3300 8 mm probes
- 3300 XL 8 mm probes
Environmental & Build
- Operating Temp: +18°C to +27°C
- Humidity: Up to 93%, with less than 3% ASF drift
- Altitude: Max 2000 meters
- Pull Strength: 330 N (CableLoc)
- Sealing: FluidLoc internal protection, Viton O-ring
Signal Range
- Linear Range: 0.25 mm to 2.3 mm (10 to 90 mils)
- Output Voltage Range: Approx. –1 to –17 Vdc
Field Wiring
- Wire Size: 0.2 to 1.5 mm² (16 to 24 AWG)
- Recommended: 3-conductor shielded triad with tinned ends
- Max Distance: 305 meters (1000 feet)
Model Breakdown
- 330130 – Extension Cable Base
- 070 – 7.0 meter length
- 13 – Armored FluidLoc cable with protector
- CN – Country-specific approval
Shipping and Warranty
- Shipping: Available via FedEx, UPS, DHL
- Warranty: 12 months
