Bently Nevada | 330130-030-00-00 3300 XL Standard Extension Cable

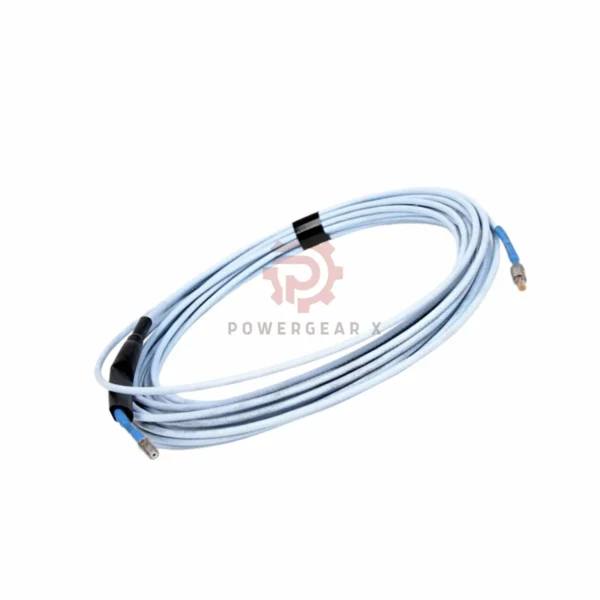

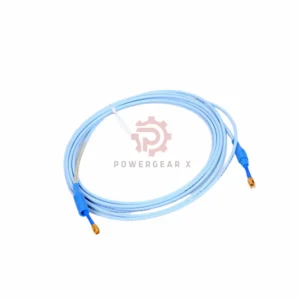

Bently Nevada 330130-030-00-00 Extension Cable

Product Overview

This 3.0-meter extension cable is designed for Bently Nevada 3300 XL 8 mm vibration systems. It offers reliable connectivity between proximity probe and Proximitor sensor. Made in the USA.

Technical Specifications

• Model: 330130-030-00-00
• Length: 3.0 meters (9.8 feet)
• Cable Type: Standard unarmored
• Weight: 0.204 kg
• Capacitance: 69.9 pF/m (typical)
• Output Resistance: 50 Ohm
• DC Resistance: Estimated: RCORE ~0.66 Ω, RJACKET ~0.20 Ω (scaled from 6.0 m)
• Voltage: -17.5 Vdc to -26 Vdc
• Current: Max 12 mA
• Supply Sensitivity: Less than 2 mV per volt

Field Wiring Requirements

• Use 3-conductor shielded triad wire
• Wire Size: 0.2 to 1.5 mm² (16–24 AWG)
• Max Distance: 305 meters (1,000 feet)

Durability Features

• TipLoc: Strong bond between probe tip and body
• CableLoc: Withstands 330 N (75 lbf) pull force
• Includes silicone tape for moisture protection (not for oil exposure)

Model Structure

• 330130: Extension cable series
• 030: 3.0 meters total length
• 00: Standard cable
• 00: No approvals
