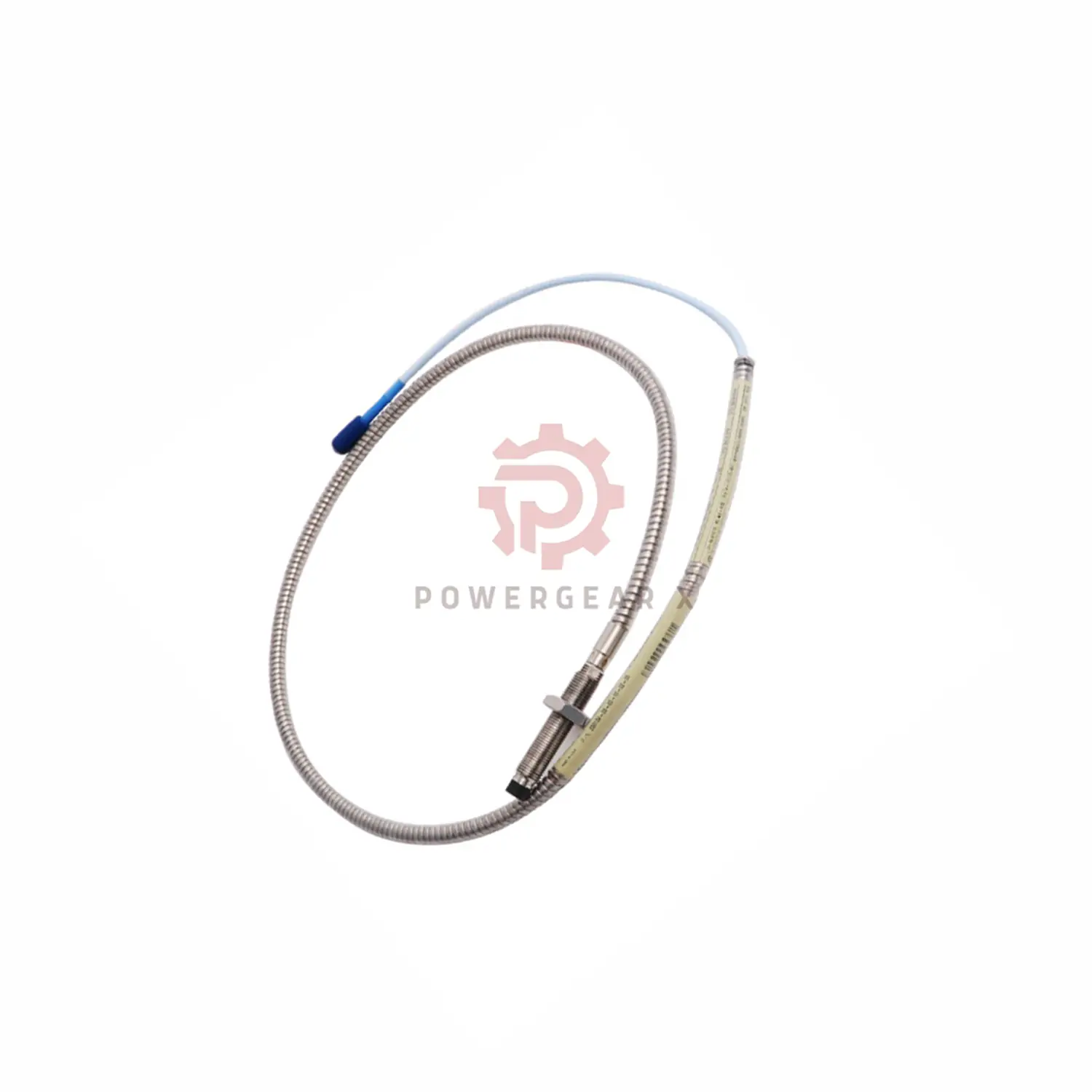

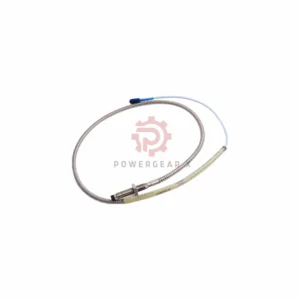

Bently Nevada 330104-00-03-90-11-00 Proximity Probes 3300 XL 8 mm

Ultra-Long Range Model: 330104-00-03-90-11-00

Bently Nevada’s 9-meter 8mm proximity probe (330104-00-03-90-11-00)features a 30mm compact case and FluidLoc® chemical-resistant cable. Designed for hard-to-reach installations, it maintains 9.87Ω±0.50Ω resistance across its full length while operating from -55°C to +232°C.

Model Decoder

• 00: 0mm unthreaded section
• 03: 30mm case length (40% shorter than standard)
• 90: 9.0m (29.5ft) extended cable
• 11: FluidLoc® cable + ClickLoc protector
• 00: No certifications required

Technical Highlights

• ⚡ Electrical:
  •  9.87Ω ±0.50Ω @20°C (±1°C)
  •  -17.5Vdc to -26Vdc input range
  •  50Ω ±2% output impedance
• 🔧 Mechanical:
  •  M10x1 thread | IP69K-rated connector
  •  304 SST housing | 3.5MPa seal pressure
  •  25mm minimum bend radius

FluidLoc® Advantage

•  Resists oils, coolants & hydraulic fluids
•  500+ flex cycles @-40°C
•  2kV dielectric strength

Critical Notes

•  Requires 3300 XL Proximitor (9m version)
•  1.27mm±0.03mm gap from AISI 4140 steel
•  Max 18N·m installation torque

Order Inquiry

Contact sales@powergearx.com for chemical compatibility charts.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
