Product Overview

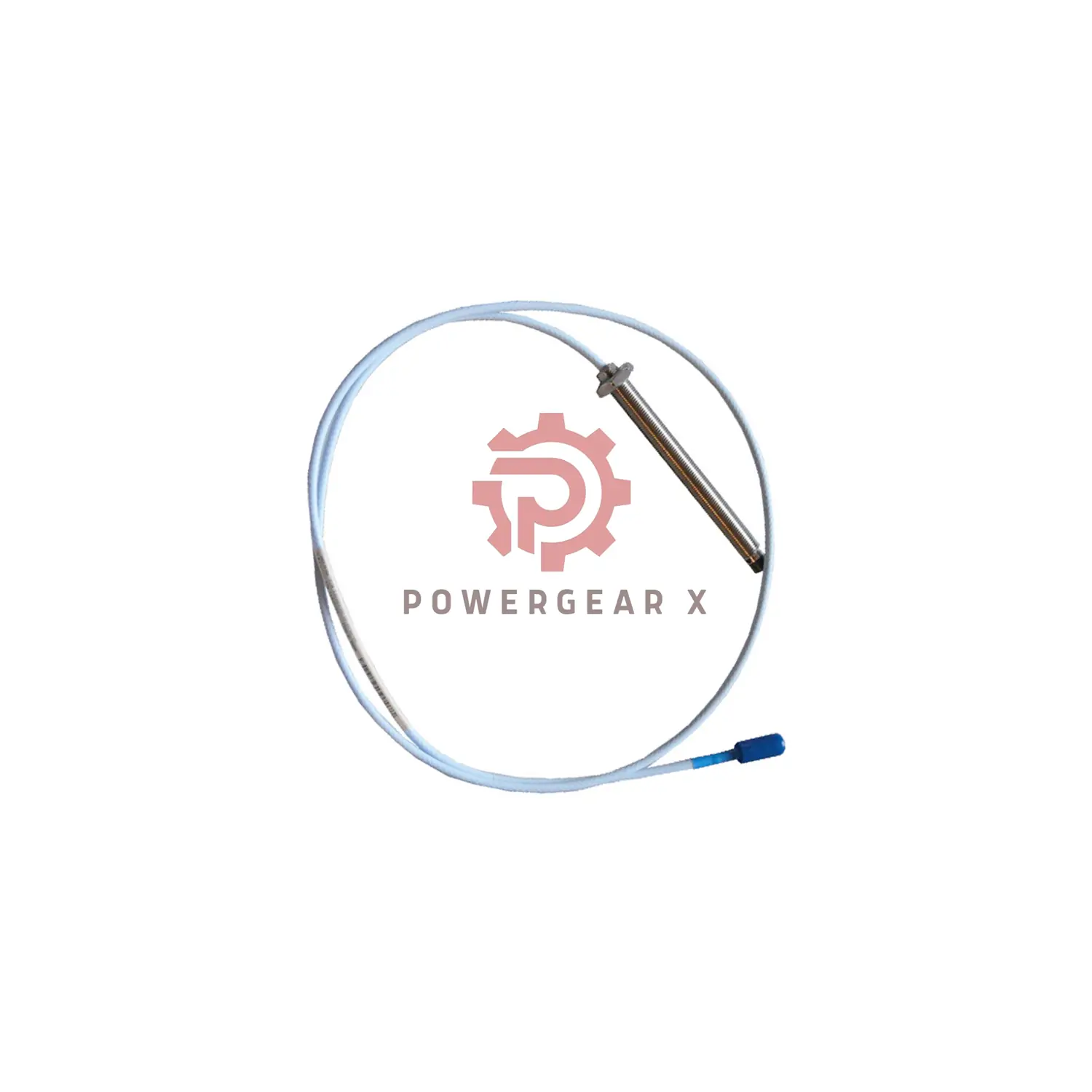

The Bently Nevada 330103-17-22-10-12-05 is a premium 8mm vibration probe. It offers long reach for deep mounting holes. It provides reliable data on machine health. Use it in tough and hazardous industrial areas.
Key Features & Advantages
- Hazardous Area Safe: Certified for CSA, ATEX, and IECEx approvals.
- Long-Reach Design: 170mm unthreaded section for deep installations.
- Robust Cable: Features FluidLoc cable for moisture resistance.
- Wide Temperature Range: Operates from -52°C to +177°C reliably.
- Precise Measurement: Delivers a stable 2mm linear range.
- Easy Connection: Miniature coaxial ClickLoc connector for quick setup.
Detailed Technical Specifications
- Brand & Series: Bently Nevada 3300 XL
- Core Model: 330103 (8mm Probe, M10x1, No Armor)
- Full Part Number: 330103-17-22-10-12-05
- 17: Unthreaded Length = 170 mm
- 22: Overall Case Length = 220 mm
- 10: Cable Length = 1.0 Meter
- 12: Connector = ClickLoc with FluidLoc Cable
- 05: Approvals = CSA, ATEX, IECEx
- Measurement Range: 2.0 mm linear range (0.25 to 2.3 mm from target).
- Gap Setting: Recommended at 1.27 mm (50 mils) for -9 Vdc.
- Probe Tip: Polyphenylene Sulfide (PPS) for durability.
- Probe Case: AISI 303/304 Stainless Steel.
- Thread: M10 x 1. Max engagement 15 mm.
- DC Resistance: 7.59 Ω ± 0.50 Ω (for 1.0m cable).
- Operating Temperature: -52°C to +177°C (Standard).
- Sealing: Viton O-ring. Not pressure tested by default.
- Field Wiring: Use 16-24 AWG shielded cable. Max 305m run.
Installation & Maintenance Guide
- Ensure the mounting hole depth fits the 220mm case length.
- Do not engage more than 15mm of the M10x1 thread.
- Set the gap to achieve -9 Vdc output for best results.
- Protect the seal. Avoid temperatures below -34°C during install.
- For pressure seal testing, contact factory custom design.
- Use proper shielded field wiring to reduce noise.
Compatibility & System Integration
This probe connects to Bently Nevada 3300 XL Proximitor sensors. It integrates into monitoring systems using intrinsic safety barriers (per drawing 141092) or non-incendive circuits (per drawing 140979).
Safety Certifications
- For Zone 0 (AEx ia): Use with approved intrinsic safety barriers.
- For Zone 2/Div 2 (AEx nA, ec): Use with specified non-incendive wiring.
- Groups: Suitable for gas Groups A,B,C,D and dust Groups E,F,G.
Ordering, Shipping & Warranty
- Package Contents: One 8mm proximity probe, ready for use.
- Warranty: Covered by a full 12-month manufacturer warranty.
- Shipping Methods: We ship globally via FedEx, UPS, and DHL.
- Delivery Time: Expedited shipping options are available.
Typical Applications
This long-case probe is ideal for monitoring:
- Large Turbines and Generators
- Centrifugal Compressors with deep casings
- High-Power Motors and Pumps
- Paper Machine Rolls
It detects faults like shaft imbalance, misalignment, and bearing wear.
Frequently Asked Questions (FAQ)
Product Selection & Configuration
Q: When should I choose this “17-22” length probe?
A: Select this model when you need to mount through a thick machine casing or insulation. The 170mm unthreaded section gives you flexibility.
Q: What is the benefit of FluidLoc cable (Option 12)?
A: FluidLoc cable resists moisture and oil ingress. It is better for wet or humid environments than standard cable.
Technical & Installation
Q: How much of the probe case is actually threaded?
A: With a 220mm total length and 170mm unthreaded, the threaded section is 50mm. Remember, only engage 15mm maximum.
Q: Can I use this in a very cold environment?
A: It operates down to -52°C. However, do not *install* it below -34°C to avoid seal damage. Installation and operation are different.
Ordering & Support
Q: What if I need a different cable length or connector?
A> We offer many variants. Contact our sales team with your requirements. They can find the exact part number you need.
Q: What is your return policy and warranty?
A> We offer a 12-month warranty on this probe. Please contact us for any technical issues. We ship replacement parts quickly via DHL, FedEx, or UPS.
Contact Us for More Information
Get expert help to choose the right sensor. Our team supports your project.
- Email: sales@powergearx.com
- Technical Support via WhatsApp: +86 18030005825
