Bently Nevada | 330103-06-15-05-02-CN Proximity Probes

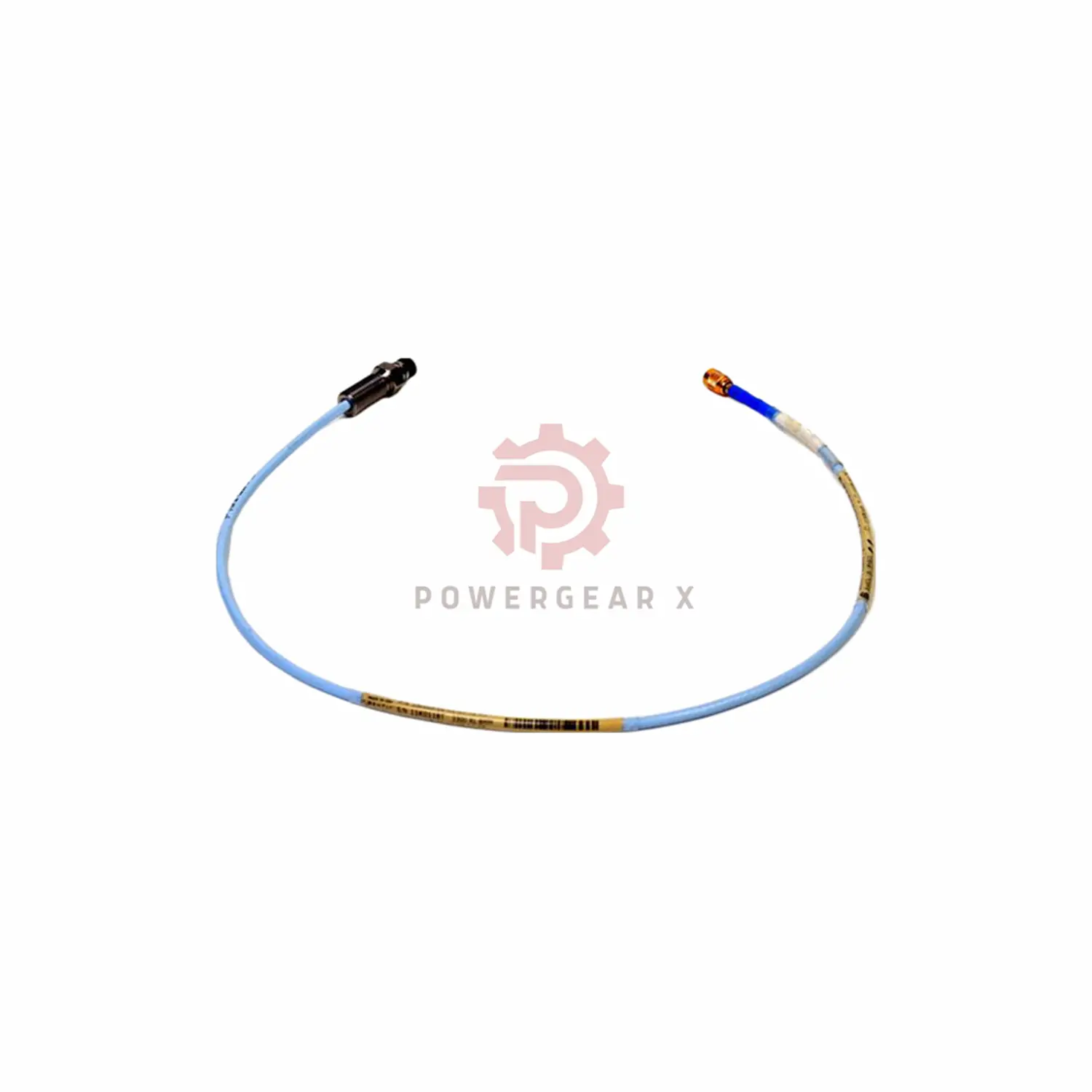

Bently Nevada 330103-06-15-05-02-CN Vibration Probe

Key Specifications

Linear range: 0.25 to 2.3mm

Output signal: -1 to -17 Vdc

Vibration gap setting: 1.27mm (-9 Vdc)

Operating temperature: -52°C to +177°C

Max cable length: 305 meters

Frequency response: 0 to 15 kHz

Model Breakdown

• 330103: 8mm Probe M10x1 thread
• 06: 60mm unthreaded length
• 15: 150mm case length
• 05: 0.5 meter cable
• 02: ClickLoc connector
• CN: Country approvals

Industrial Solutions

Prevent turbine failures in power plants. Monitor compressor vibrations in oil refineries. Detect early bearing wear in paper mills. Reduce unplanned downtime in steel production.

Installation Guide

Mount with M10x1 thread. Set gap to 1.27mm. Use 3-conductor shielded cable. Keep away from high EMI sources. Max torque: 10 Nm.

Compatibility

Works with Bently Nevada 3300 XL systems. Hazardous area certified: Class I Zone 0/2. Compatible with all major monitoring systems.

Package Includes

• Vibration probe with 0.5m cable
• ClickLoc connector
• Installation manual

Warranty: 12 months. Shipping: FedEx, UPS, DHL worldwide.
