Product details
Product Overview

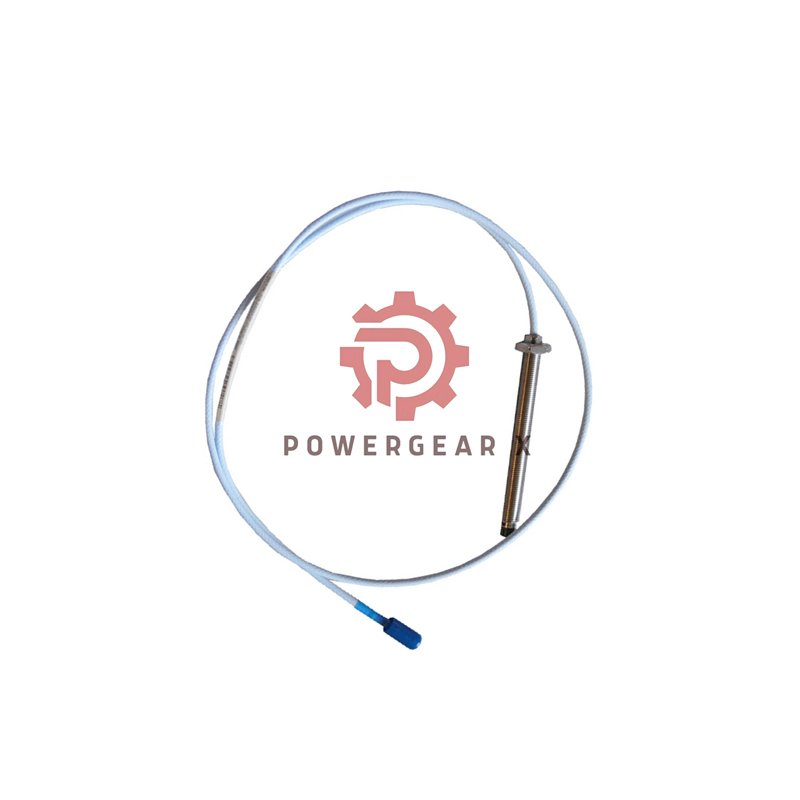

This is the 3300 XL 8mm Proximity Probe from Bently Nevada. It is a high-performance sensor for monitoring vibration and position in industrial machinery. It offers reliable data for predictive maintenance.
Key Features & Benefits
- Robust Design: Stainless steel case and PPS tip ensure durability in harsh environments.
- Wide Temperature Range: Operates reliably from -52°C to +177°C (-62°F to +350°F).
- Intrinsic Safety Options: Available with ia or nA, ec approvals for hazardous areas.
- Easy Installation: Clear torque specifications and threaded design simplify mounting.
- Global Certifications: Includes CSA, ATEX, and IECEx approvals for worldwide use.
Complete Technical Specifications
- Brand & Model: Bently Nevada 330103-00-08-10-02-05
- Product Tree & Suffix Decoder:
- ▸ 330103: 3300 XL 8 mm Probe, M10x1 thread, no armor
- ▸ 00: Unthreaded Length = 0 mm
- ▸ 08: Overall Case Length = 80 mm
- ▸ 10: Total Cable Length = 1.0 meter (3.3 feet)
- ▸ 02: Connector = Miniature coaxial ClickLoc, standard cable
- ▸ 05: Agency Approval = CSA, ATEX, IECEx
- Measurement Range
- Linear Range: 2 mm (80 mils).
- Range Start: 0.25 mm (10 mils) from target.
- Recommended Gap: 1.27 mm (50 mils) for -9 Vdc output.
- Electrical Data
- Nominal DC Resistance (RPROBE): 7.59 Ω ± 0.50 Ω for 1.0m cable.
- Output Range: Approximately -1 to -17 Vdc.
- Field Wiring: Use 3-conductor shielded cable. Max 305m (1000 ft).
- Mechanical Design
- Case Material: AISI 303/304 Stainless Steel.
- Tip Material: Polyphenylene Sulfide (PPS).
- Thread: M10 x 1. Max engagement 15 mm.
- Torque (Standard): Recommended 11.2 N•m (100 in•lbf). Max 33.9 N•m.
- Weight: 323 g/m (11.4 oz/ft).
- Environmental Ratings
- Operating Temperature: -52°C to +177°C (Standard).
- Extended Cable Temp: Up to +260°C (+500°F).
- Humidity: Less than 3% ASF change at 93% RH.
- Sealing: Viton® O-ring. Not pressure tested by default.
- Certifications & Safety
- Approvals: CSA, ATEX, IECEx.
- Hazardous Area: Class I, Zone 0/2; Division 2.
- Protection Levels: EPL Ga, Gc, Dc.
Installation & Setup Guide
- Do not exceed 15 mm thread engagement.
- Apply correct torque: 7.5 N•m for first three threads, 11.2 N•m overall.
- Set initial gap to achieve -9 Vdc for radial vibration.
- Use shielded cable for field wiring up to 305m.
- Contact us for pressure seal validation before installation.
Compatibility & Integration
This probe works with Bently Nevada 3300 XL Proximitor sensors. The ClickLoc connector ensures secure connection. It fits standard M10x1 mounting holes.
Typical Applications & Diagnostic Value
- Applications: Monitor radial vibration on turbines, compressors, pumps, and fans.
- Diagnostic Power: Gives early warning of bearing wear and imbalance. Enables predictive maintenance.
Frequently Asked Questions (FAQ)
General & Selection
- What is the main purpose of this probe?
- It measures shaft vibration and position to protect critical machinery from failure.
- How do I choose the correct model suffix?
- Match the suffix to your needs: cable length, connector type, and required agency approvals.
- Can I use this probe in a Div 1 hazardous area?
- No. For Zone 0/Div 1, you must use the ia version with intrinsic safety barriers.
Installation & Operation
- What is the best practice for setting the gap?
- Adjust the probe so the system reads -9 Vdc. This is roughly 1.27 mm from the target.
- Why is my signal weak at high frequencies?
- Long cable runs over 305m can cause signal roll-off. Check system frequency response graphs.
- The environment is below -34°C. Is this a problem?
- Yes. Very low temperatures may damage the pressure seal. Consider the operating limits.
Experience-Based Tips
- From the field: Our probe readings became unstable.
- Check connector integrity and cable shielding. Often, moisture or a loose connection is the cause.
- We need a pressure-tested seal for our application.
- This is not standard. You must contact the custom design department before ordering.
Packaging, Shipping & Warranty
- Packaging: Includes one probe, connector, and documentation.
- Shipping: We ship globally via FedEx, UPS, and DHL.
- Warranty: This product comes with a 12-month warranty against manufacturing defects.
Get Your Probe & Support
Ready to order or need technical advice? Contact our sales team.
