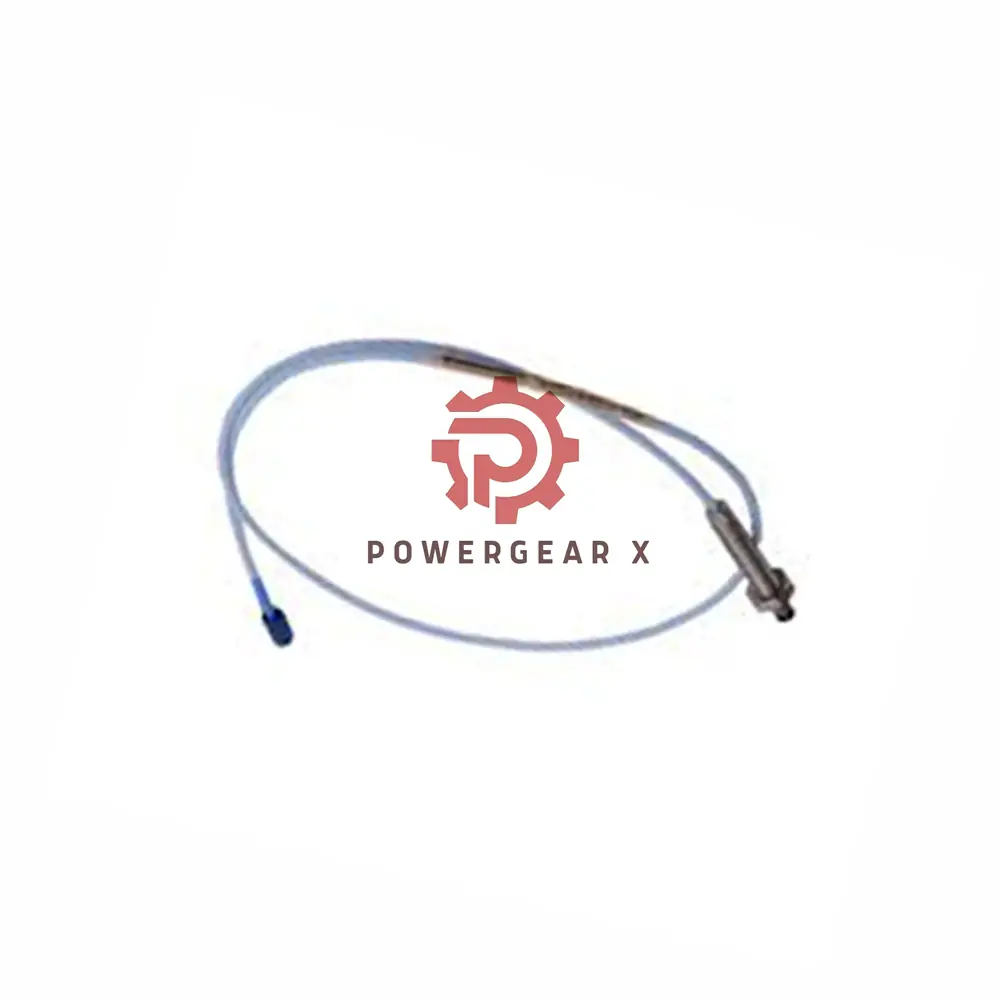

Bently Nevada 330103-00-03-50-02-05 3300 XL 8mm Proximity Probe 5m Cable

Product Overview

This Bently Nevada 330103-00-03-50-02-05 is an 8mm proximity probe. It belongs to the reliable 3300 XL series. The probe measures radial vibration and position in rotating machinery. It ensures precise monitoring for predictive maintenance. It features a durable stainless steel case and a PPS tip. This probe comes with a 5-meter cable and Mini ClickLoc connector. It holds major global safety certifications for hazardous areas.

Technical Specifications

• Brand & Model: Bently Nevada 330103-00-03-50-02-05
• Series: 3300 XL 8mm Proximity Probe (Metric)
• Measurement Range: Linear range of 2 mm (80 mils), starting at 0.25 mm from target.
• Recommended Gap: Set at -9 Vdc (~1.27 mm / 50 mils) for radial vibration.
• Sensitivity & Linearity: Standard 3300 XL system sensitivity. Linear output within the specified range.
• Frequency Response: Dependent on cable length. Consult manual for high-frequency roll-off details.
• Temperature Range:
  • Standard: -52°C to +177°C (-62°F to +350°F)
  • Extended Tip: Up to +218°C (+425°F)
• Environmental Robustness: Case IP-rated per connector. Less than 3% ASF change at 93% humidity.
• EMI Resistance: Coaxial design and shielded cable provide good noise immunity.
• Electrical Data:
  • Cable Length: 5.0 meters (16.4 ft)
  • Probe Resistance (RPROBE): 8.73 Ω ± 0.50 Ω
  • Connector: Miniature ClickLoc coaxial
• Mechanical Data:
  • Thread: M10 x 1
  • Unthreaded Length: 0 mm
  • Case Length: 30 mm
  • Max Thread Engagement: 15 mm
  • Weight: 323 g/m (11.4 oz/ft)
  • Tip Material: Polyphenylene Sulfide (PPS)
  • Case Material: AISI 303/304 Stainless Steel
  • Seal: Viton® O-ring

Installation & Setup Guide

• Use the M10x1 thread for secure mounting. Do not exceed 15 mm engagement.
• For radial vibration, adjust the gap to achieve approximately -9 Vdc output.
• Connect to a compatible 5-meter 3300 XL Proximitor sensor only.
• Use recommended 16-24 AWG shielded cable for field wiring up to 305 meters.
• Ensure the Viton O-ring is clean and properly seated for environmental seal.

Compatibility Information

This probe is specifically designed for use with Bently Nevada 3300 XL series monitors and the matching 5-meter Proximitor sensor. It is not compatible with 9-meter systems or other manufacturer’s interfaces without verification.

Certifications & Approvals

• CSA Standards
• ATEX / IECEx (Intrinsically Safe & Non-Incendive)
• Class I, Zone 0, 1, 2; Div. 1, 2; Groups A-G.

Packaging & Warranty

• Package Includes: One 3300 XL 8mm Probe with connector, and documentation.
• Warranty: 12-month limited warranty against material and workmanship defects.
• Shipping: We ship worldwide via FedEx, UPS, and DHL. Contact us for specific options.

Typical Applications

• Radial Vibration Monitoring on turbines, compressors, pumps, and motors.
• Shaft Position (Eccentricity) Measurement.
• Key Phasor / Speed Reference applications.
• Condition-Based Maintenance programs in oil & gas, power generation, and manufacturing.

Frequently Asked Questions (FAQ)

General & Selection

• Q: How do I choose the right cable length?
• A: The 330103-00-03-50-02-05 has a fixed 5m cable. It only works with a 5m Proximitor. Choose a different model number for 9m systems.

• Q: Can I use this probe in a high-temperature environment?
• A: Yes. The standard range goes to 177°C. The tip can handle up to 218°C in extended range. Check cable and connector ratings separately.

Installation & Troubleshooting

• Q: My gap voltage is unstable. What should I check?
• A: First, verify the target material is proper carbon steel. Ensure the mounting is secure and the probe tip is clean. Check all cable connections for tightness.

• Q: Is the probe pressure seal tested before shipping?
• A: No. Probes are not routinely pressure tested. For critical pressure sealing applications, contact Bently Nevada’s custom design department for specific testing.

Compatibility & Ordering

• Q: I have a 9-meter system. Can I use this probe?
• A: No. This probe (suffix -50) is for 5-meter systems only. Using it with a 9-meter Proximitor will cause calibration errors. You need a probe with a -90 suffix.

Need More Information?

Our team is ready to help with your Bently Nevada requirements. For technical support or pricing, contact us:

Email: sales@powergearx.com
Phone/WhatsApp: +86 18030005825
