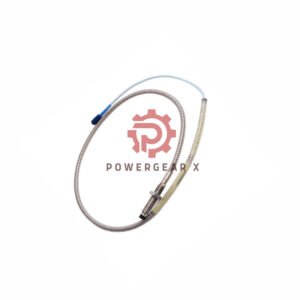

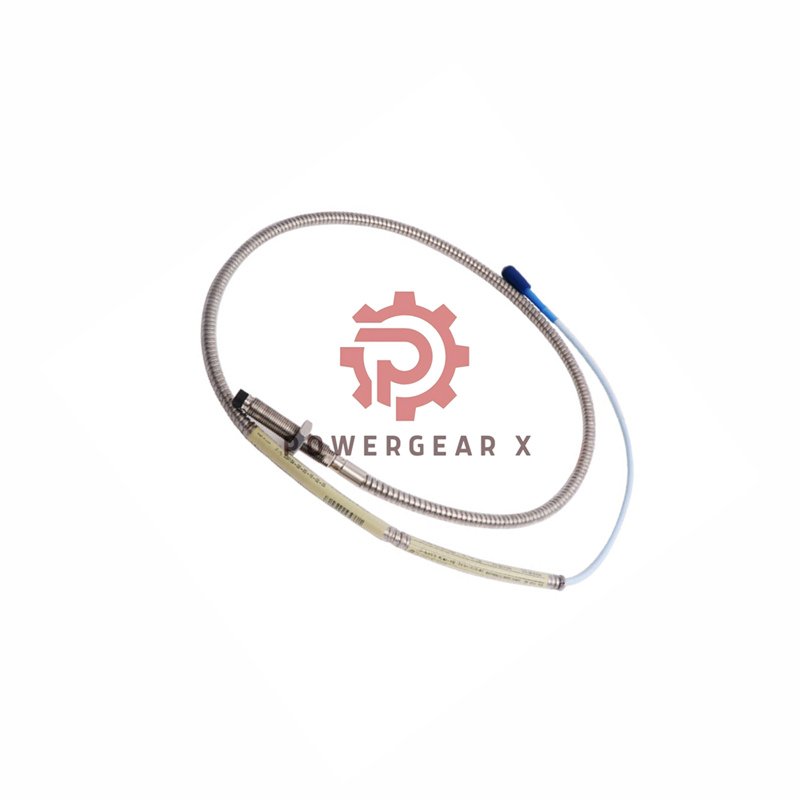

Bently Nevada 330102-60-90-10-02-CN 3300 XL 8mm Proximity Probe

Product Overview

• Manufacturer: Bently Nevada
• Model: 330102-60-90-10-02-CN
• Series: 3300 XL
• Product Type: 8 mm Proximity Probe with armor

Model Code Structure

• 330102 – Probe family
  • 8 mm sensing diameter
  • 3/8-24 UNF mounting thread
  • Armored cable design
• 60 – Unthreaded length
  • 6.0 inches
• 90 – Overall case length
  • 9.0 inches
• 10 – Cable length
  • 1.0 meter
  • 3.3 feet
• 02 – Connector type
  • Miniature coaxial ClickLoc
  • Standard cable format
• CN – Country specific approval

Key Design Strengths

• Armored cable improves mechanical protection
• PPS probe tip resists wear and heat
• Stainless steel case increases durability
• ClickLoc connector ensures secure signal contact
• Optimized for long service intervals

Electrical Characteristics

• Nominal probe resistance: 7.59 Ω ± 0.50
• Stable DC signal output
• Low noise signal transmission
• Designed for 3300 XL Proximitor sensors

Measurement Capability

• Total linear range: 2 mm
• Effective range: 0.25 to 2.3 mm
• Output span: approximately -1 to -17 VDC
• Recommended radial gap: -9 VDC

Mechanical & Material Data

• Probe tip
  • Material: Polyphenylene sulfide
• Probe case
  • AISI 303 or 304 stainless steel
  • Thread engagement max: 0.563 inches
• Weight: 323 g per meter

Environmental Limits

• Standard temperature
  • -52°C to +177°C
• Extended temperature option
  • Probe tip up to +218°C
  • Cable and connector up to +260°C
• Humidity impact below 3% scale shift

Pressure & Sealing

• Viton O-ring pressure seal
• Designed for differential pressure
• Optional pressure test available

Hazardous Area Compliance

• Intrinsically safe installation
  • Class I, Zone 0
  • Class I, Groups A to D
  • Class II and Class III supported
• Non-incendive installation
  • Class I, Zone 2
  • Division 2 environments

Typical Applications

• Shaft vibration monitoring
• Radial displacement measurement
• Turbines and compressors
• Critical rotating equipment

Warranty & Shipping

• Warranty: 12 months
• Shipping options: FedEx, UPS, DHL
• Industrial protective packaging

FAQ

• Why use an armored probe
  • It protects cables from vibration damage
• What improves accuracy during installation
  • Setting the correct initial probe gap
• Can this probe work in oily environments
  • Yes, the sealed design resists fluid ingress
• What affects signal quality most
  • Excessive field wiring length
• When should pressure testing be requested
  • High-pressure process applications
