Product details
Product Summary

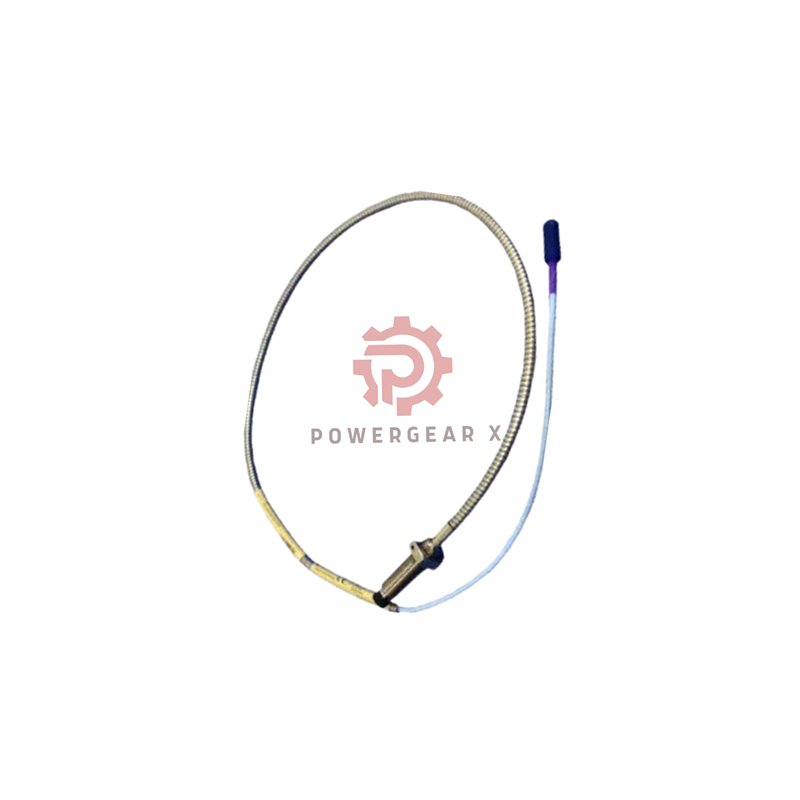

The Bently Nevada 330102-60-96-10-02-CN is an 8mm armored proximity probe. It provides reliable vibration and position monitoring for industrial machinery. This long-body version is ideal for deep mounting applications.
Core Advantages
- Long Reach Design: 6.0″ unthreaded length and 9.6″ overall case for deep installations.
- Full Armor Protection: Metal armor guards the cable against abrasion and impact.
- Wide Operating Window: Functions reliably from -52°C to +177°C.
- Precision Sensing: 2mm linear range for accurate shaft position measurement.
- Global Safety Compliance: Carries country-specific hazardous area certifications.
Complete Product Specifications
- Full Part Number: 330102-60-96-10-02-CN
- Part Number Decoder:
- 330102: 3300 XL 8mm Armored Probe
- 60: Unthreaded Length = 6.0 Inches
- 96: Overall Case Length = 9.6 Inches
- 10: Total Cable Length = 1.0 Meter
- 02: Connector = Miniature ClickLoc
- CN: Approval = Country Specific
- Electrical Performance
- Probe DC Resistance: 7.59 ± 0.50 Ohms
- Output Signal: -1 to -17 Vdc over linear range
- Field Wiring Max: 305 meters (1000 feet)
- Physical & Sensing Data
- Probe Diameter: 8 mm
- Mounting Thread: 3/8-24 UNF
- Linear Range: 0.25 to 2.3 mm (10 to 90 mils)
- Recommended Gap: 1.27 mm (50 mils) for -9 Vdc output
- Environmental & Safety
- Case Material: AISI 303/304 Stainless Steel
- Tip Material: Polyphenylene Sulfide (PPS)
- Seal: Viton O-ring (Avoid below -34°C)
- Humidity: Stable performance below 93% RH.
- Certifications: AEx/Ex ia, nA, ec for hazardous locations.
Installation & Application Notes
- This long-body probe is perfect for applications requiring deep penetration into a housing.
- Always set the initial gap to 1.27 mm (50 mils) for standard radial vibration measurement.
- Use only the 1-meter cable version for universal compatibility with standard Proximitor sensors.
- For longer runs, use high-quality shielded triad cable up to 305 meters maximum.
Ordering & Logistics
- Warranty Coverage: This product includes a full 12-month warranty.
- Global Shipping: We ship worldwide via FedEx, UPS, and DHL for fast delivery.
- In the Box: 1 x Armored Proximity Probe with pre-installed connector.
Expert FAQ
Product Configuration
- What is the key difference between this model and the shorter version?
- The suffix -60-96 specifies a longer body. It has a 6.0″ unthreaded section and a 9.6″ overall case for mounting through thicker machine walls.
- Can I order this probe with a 5-meter cable?
- No. The 5-meter cable is a special option for specific Proximitor sensors. This model 330102-60-96-10-02-CN comes with a standard 1-meter cable for general use.
Technical Application
- Is the armored cable more difficult to route?
- It is slightly less flexible but offers much greater protection. Plan your cable path with gentle bends to avoid stress.
- Can this probe be used in wet or dirty environments?
- Yes. The armored jacket, Viton seal, and PPS tip provide excellent resistance to moisture, oils, and many chemicals.
Purchasing Guidance
- How do I know if I need the “CN” approval option?
- If your plant is in a region with strict safety codes (like Europe or North America), the “CN” version is typically required. Contact us with your location for confirmation.
