Product details

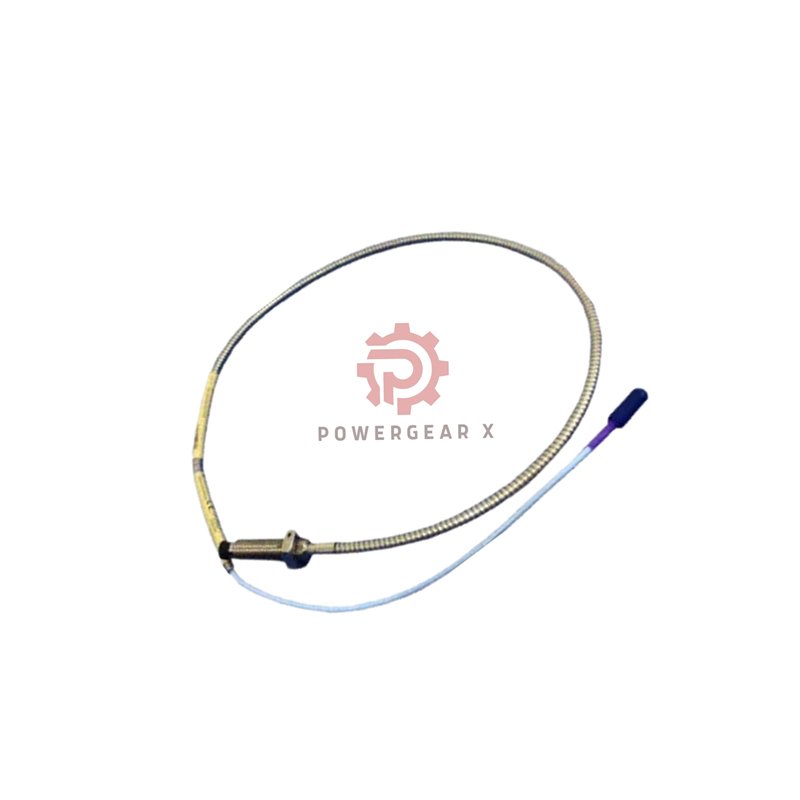

Standard 8mm Armored Vibration Probe
The Bently Nevada 330102-10-40-10-02-CN is a versatile proximity sensor. It features an 8mm tip with a standard 4-inch case and 1-meter armored cable. This probe provides precise vibration and position measurement for general industrial applications. Its compact design fits most standard mounting locations easily.
Product Advantages
- Small 8mm Size: Perfect for monitoring standard-sized shafts and rotors.
- Standard Dimensions: 4-inch case and 1-meter cable suit most applications.
- Armored Protection: Cable armor prevents damage in harsh environments.
- Wide Measurement Range: 2mm linear range provides accurate data.
- Global Readiness: Country-specific certification for international use.
Model Configuration Details
Manufacturer Information
- Brand: Bently Nevada
- Product Family: 3300 XL Monitoring System
- Complete Part Number: 330102-10-40-10-02-CN
Configuration Code Explanation
- 330102: 8mm Probe, 3/8-24 UNF, With Armor
- -10: Unthreaded Length = 1.0 inch
- -40: Overall Case Length = 4.0 inches
- -10: Cable Length = 1.0 meter (3.3 feet)
- -02: Connector = Miniature ClickLoc, Standard Cable
- -CN: Approvals = Country Specific Configuration
Technical Specifications
Performance Data
- Probe Diameter: 8mm
- Mounting Thread: 3/8-24 UNF
- Electrical Resistance: 7.59 ± 0.50 Ohms
- Linear Range: 2.0 mm (80 mils)
- Optimal Gap Setting: 1.27 mm (50 mils) for -9 Vdc
- Field Wiring Distance: Up to 305 meters maximum
Construction & Environment
- Case Material: AISI 303/304 Stainless Steel
- Tip Material: Polyphenylene Sulfide (PPS)
- Thread Engagement: Maximum 0.563 inches
- Temperature Range: -52°C to +177°C Standard
- Humidity Performance: Less than 3% change at 93% RH
- Safety Ratings: Suitable for hazardous areas with barriers
Support & Shipping
- Manufacturer Warranty: 12 months from purchase date.
- Delivery Services: FedEx, UPS, and DHL available worldwide.
- Technical Support: Available for installation and troubleshooting.
Expert Questions & Answers
Selection & Application Guidance
Q: What are typical applications for this 8mm probe?
A: It is commonly used for motors, pumps, fans, and gearboxes with medium-sized shafts. The 8mm size is a standard for general industrial monitoring.
Q: How does the 1-inch unthreaded section help installation?
A: It allows the probe to pass through a mounting bracket or adapter before the threads engage. This ensures proper alignment and seating.
Technical & Performance
Q: What is the difference between standard and extended temperature probes?
A: Standard probes work up to 177°C. Extended range probes handle up to 218°C at the tip. Choose based on your operating temperature.
Q: Can this probe be used in explosive atmospheres?
A: Yes, when installed with appropriate intrinsic safety barriers or galvanic isolators as per Bently Nevada drawings 141092 or 140979.
Purchasing & Delivery
Q: How quickly can you ship the 330102-10-40-10-02-CN probe?
A: We typically ship within 2-3 business days via your choice of FedEx, UPS, or DHL for fast international delivery.
Contact Us for Orders or Technical Advice
Our team is ready to help with your vibration monitoring needs.
