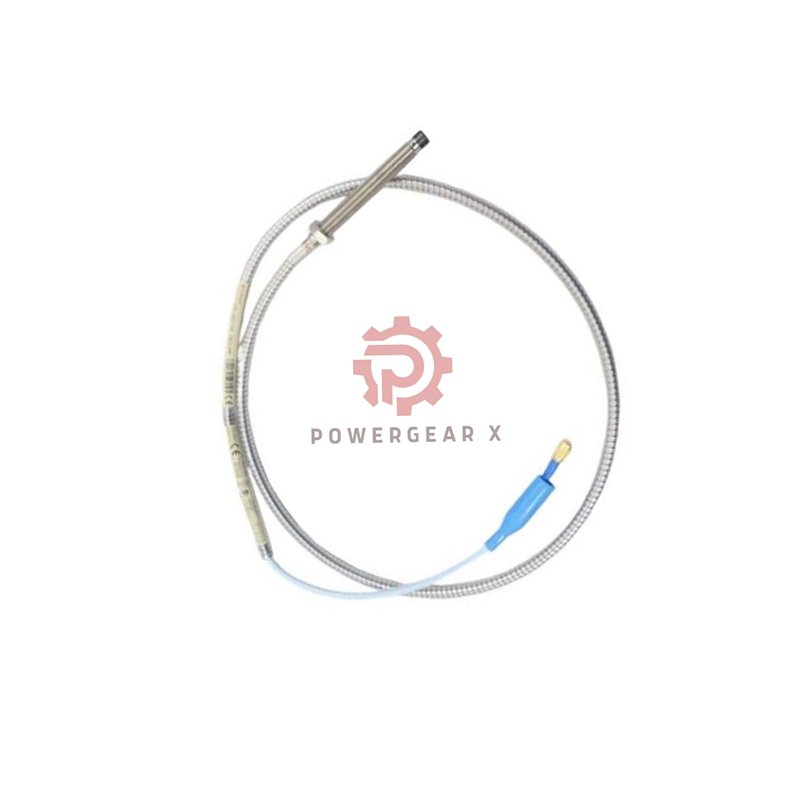

Bently Nevada 8-Inch Armored Probe for General Industry
Long-reach armored 3300 XL 8mm Proximity Probe offering durability and extended access. Model 330102-00-80-10-02-00 features an 8.0-inch armored case with a 1-meter standard cable. Designed for robust performance in non-hazardous areas.
Part Number Configuration
- 330102 – Base Type: Armored, 3/8-24 UNF
- 00 – Unthreaded Length: 0.0 in (Note: Data shows 0.3 in, confirm spec)
- 80 – Overall Case: 8.0 inch (~203 mm)
- 10 – Cable: 1.0 meter (3.3 feet)
- 02 – Connector: Standard Mini ClickLoc
- 00 – Approvals: No Certifications Required
Primary Technical Specifications
- Brand: Bently Nevada
- System: 3300 XL Vibration Monitoring
- Full Part No.: 330102-00-80-10-02-00
- Probe Type: 8mm Armored Proximity Sensor
- Linear Range: 2.0 mm (80 mils)
- Recommended Gap: 1.27 mm (50 mils)
- DC Resistance: 7.59 Ω ± 0.50
- Thread Standard: 3/8-24 UNF Imperial
- Case Length: 8.0 inch Long
- Cable: Standard 1m length
Mechanical & Installation
- Mounting Thread: 3/8-24 Unified Fine
- Max Thread Engagement: 0.563 inch
- Probe Length: Provides significant reach.
- Application: For general industrial machines requiring deep access.
- Note: Confirm unthreaded length with datasheet.
Safety & Environmental Notes
- Approval Code: 00 – General Purpose Only
- Use: Suitable for non-explosive atmospheres.
- Construction: Armored for physical protection.
- Sealing: Standard Viton O-ring seal.
Package & Service Details
- One Genuine 3300 XL 8mm Proximity Probe (Armored)
- Standard Factory Information
- 12-Month Warranty Against Defects
- Worldwide Delivery: FedEx, UPS, DHL
- Customer Support: Available for Specifications
Frequently Asked Questions
What is a typical machine for an 8-inch armored probe?
This probe suits large pumps, fans, or compressors with deep bearing housings where the measurement point is far from the mounting surface, and extra protection is needed.
Is there a discrepancy in the unthreaded length?
The summary shows “00=0.0 in” but text mentions “0.3 in.” Please refer to the official Bently Nevada drawing for the exact 330102-00-80-10-02-00 specification before installation.
Can this probe be used in a high-vibration environment?
Yes, the armored construction adds mass and rigidity, which can be beneficial in high-vibration settings. Ensure it is properly torqued and supported.
What is the main benefit of the 1-meter cable length?
One meter is a practical default. It provides enough length to route the cable neatly to a nearby junction box or conduit entry point without excessive slack.
How do I verify compatibility with my existing system?
Check three things: 1) Your mounting hole thread (3/8-24 UNF), 2) Required probe length for your application, 3) That your Proximitor is set for standard 8mm probes. The 330102-00-80-10-02-00 is a common configuration.
